3353-8010-35-10

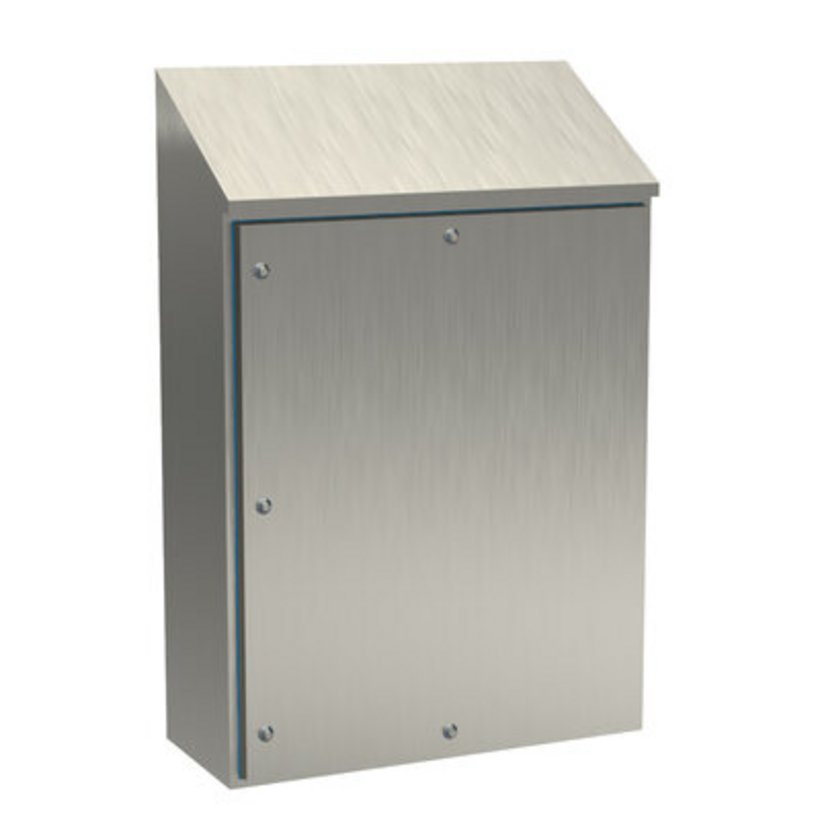

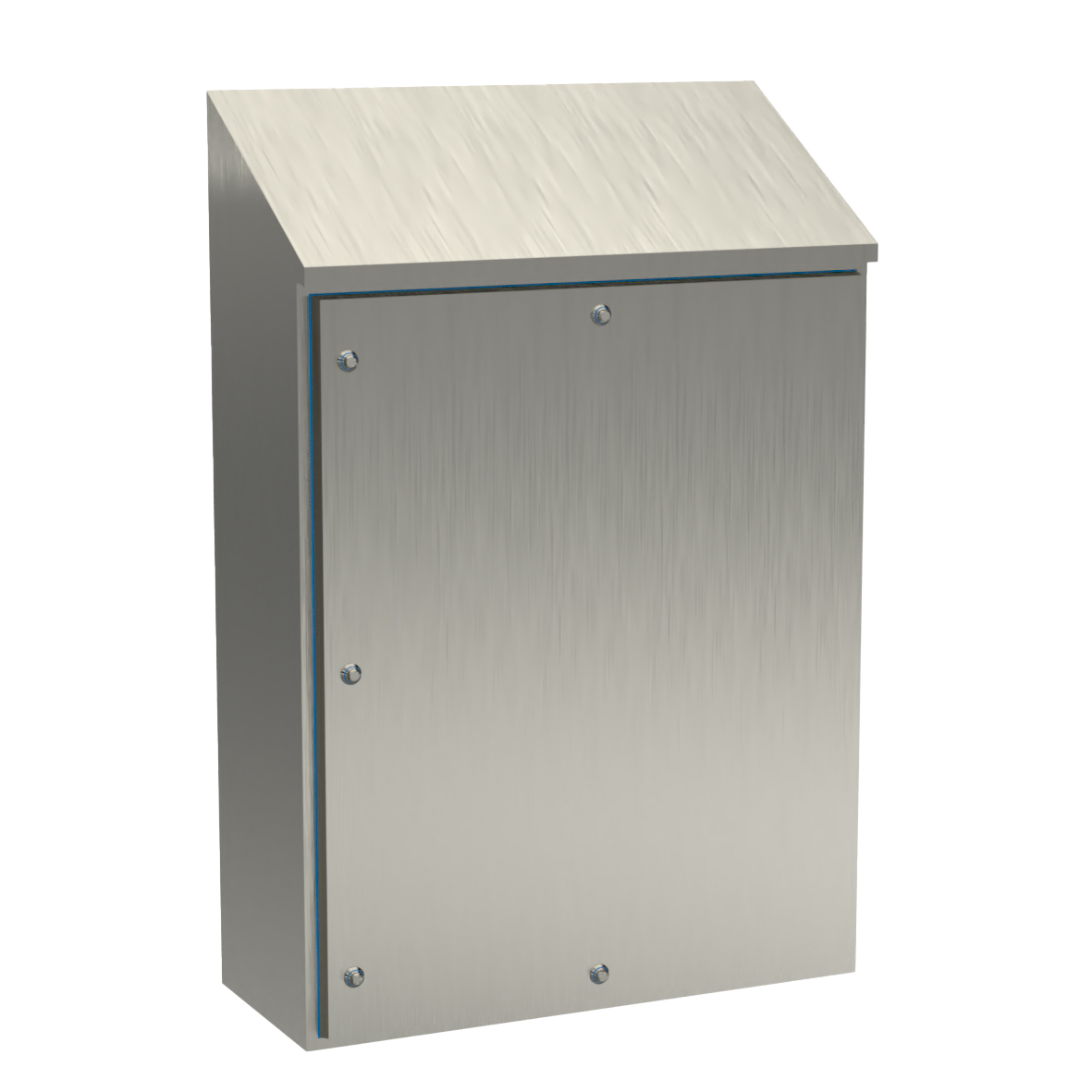

Enclosure Hygienic Equipment HE3353
- For hygiene-compliant production in open processes
- Protection class: IP66/69
- Gap-free fitted hygienic seal
- 30° roof inclination and drip edge
Product description
HE3353 hygienic equipment enclosures made of stainless steel are designed for the use on machines and low-voltage switchgear and controlgear combinations for the food and luxury goods industry.
All relevant surfaces are inclined forward: roof 30°, door continuously 10°.
The external blue silicone seal, complying with FDA requirements 177.2600, ensures a gap-free sealing (no dead zones).
Protective ground connection to DIN EN 61439-1, M6x16 studs on door and body.
Lock: quarter turn latch lock with insert SW13, external seal.
Internal hinges, door opening angle 110°.
Mounting plate on M8x35 studs fixed on rear panel:
– unedged max. 10 mm adjustable to height
– flanged mounting plate fix mounted
Enclosures type HE3353 can be equipped with häwa enclosure accessories.
Technical data
-
Article number: 3353-8010-35-10
-
PRODUKTGRUPPENNAMEEBENE4: Enclosure Hygienic Equipment HE3353
-
Variant: with mounting plate
-
Dimensions: Width: (nominal dimensions/external dimensions): 820/820 mm
Height: (nominal dimensions/external dimensions): 1020/1222 mm
Depth: (nominal dimensions/external dimensions): 350/354 mm -
Material: Stainless steel no. 1.4301
-
Weight: 57 kg
-
Included MPL: 0331-8010-00-13
-
Number of closures: 5
-
Sheet thickness: Body: 1,5 mm
Door: 1,5 mm -
Maximum installation depth: depth of D-16 mm/0,63" or D-24 mm/0,94" with edged mounting panel (20 mm/0,79")
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: externally brushed, surface roughness < 0.8 µm
-
Closure: completely made of stainless steel
-
Mounting plate: galvanized, material thickness 2 mm, from enclosure width/height 600 x 600 mm (nominal dimensions) 2.5 mm, from width/height exceeding 800 mm (nominal dimensions) flanged 20 mm
-
Protection class: IP66/69
Notice
- Other dimensions, inclination degrees or customized modifications are available upon request.
- To the top lengthened mounting plates are available upon request.
- Enclosure with mounting plate, door and 1 key SW13
