Apparatus rail

2462-0402-01-41

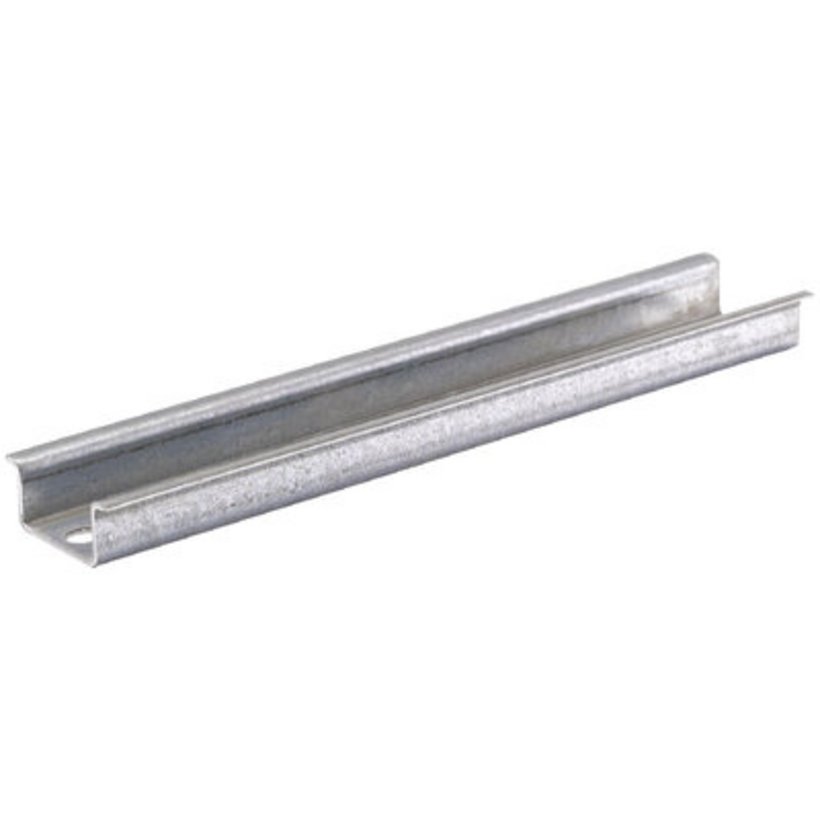

Apparatus rail

Product description

Apparatus rail suitable for terminal boxes, SN-mini, keypad enclosures and compact69.

Technical data

  • Article number: 2462-0402-01-41
  • Material: Sheet steel
  • Variant: DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
  • Length: 141 mm
  • suitable for length: 150 mm
  • Surface: galvanized and blue chromated
  • 1 apparatus rail
Junction Box K8 Sheet Steel
2408-1515-80-37
Junction Box K8 Sheet Steel
Width
150 mm
Length
150 mm
Depth
80 mm
further information
Junction Box K12 Sheet Steel
2412-1515-12-37
Junction Box K12 Sheet Steel
Width
150 mm
Length
150 mm
Depth
120 mm
further information
K-enclosure
2409-1515-80-07
K-enclosure
Width
150 mm
Height
150 mm
Depth
80 mm
Lock
1 quarter turn latch lock
further information
Save as PDF Save as PDF Direct request
Apparatus rail
Apparatus rail
Apparatus rail suitable for terminal boxes, SN-mini, keypad enclosures and compact69.
Remember
2462-0402-01-41
141 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-01-41
141 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-01-91
191 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-01-91
191 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-02-41
241 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-02-41
241 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-02-91
291 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-02-91
291 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-03-41
341 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-03-41
341 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-03-91
391 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-03-91
391 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-04-91
491 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-04-91
491 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-05-91
591 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-05-91
591 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-06-91
691 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-06-91
691 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
