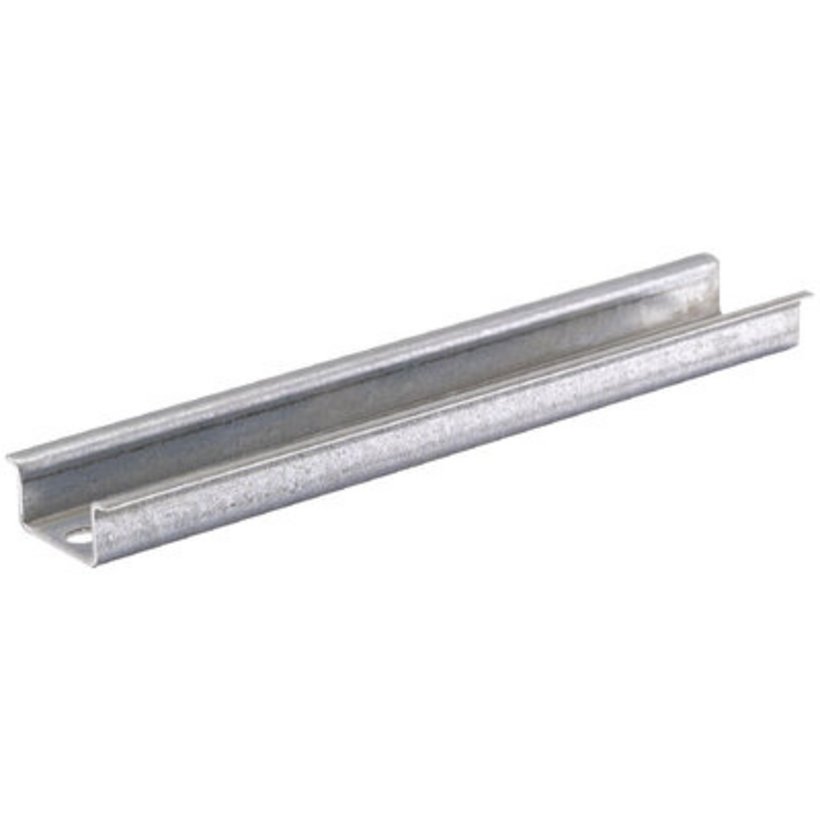

Apparatus rail

2462-0402-03-91

Apparatus rail

Product description

Apparatus rail suitable for terminal boxes, SN-mini, keypad enclosures and compact69.

Technical data

  • Article number: 2462-0402-03-91
  • Material: Sheet steel
  • Variant: DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
  • Length: 391 mm
  • suitable for length: 400 mm
  • Surface: galvanized and blue chromated
  • 1 apparatus rail
Junction Box K8 Sheet Steel
2408-4015-80-37
Junction Box K8 Sheet Steel
Width
150 mm
Length
400 mm
Depth
80 mm
further information
Junction Box K8 Sheet Steel
2408-4020-80-37
Junction Box K8 Sheet Steel
Width
200 mm
Length
400 mm
Depth
80 mm
further information
Junction Box K8 Sheet Steel
2408-4030-80-37
Junction Box K8 Sheet Steel
Width
300 mm
Length
400 mm
Depth
80 mm
further information
Junction Box K8 Sheet Steel
2408-4040-80-37
Junction Box K8 Sheet Steel
Width
400 mm
Length
400 mm
Depth
80 mm
further information
Junction Box K10 Sheet Steel
2410-4020-10-37
Junction Box K10 Sheet Steel
Width
200 mm
Length
400 mm
Depth
100 mm
further information
Junction box K11 Stainless Steel
2411-4020-10-30
Junction box K11 Stainless Steel
Width
200 mm
Length
400 mm
Depth
100 mm
further information
Junction Box K12 Sheet Steel
2412-4015-12-37
Junction Box K12 Sheet Steel
Width
150 mm
Length
400 mm
Depth
120 mm
further information
Junction Box K12 Sheet Steel
2412-4020-12-37
Junction Box K12 Sheet Steel
Width
200 mm
Length
400 mm
Depth
120 mm
further information
Junction Box K12 Sheet Steel
2412-4030-12-37
Junction Box K12 Sheet Steel
Width
300 mm
Length
400 mm
Depth
120 mm
further information
Junction Box K12 Sheet Steel
2412-4040-12-37
Junction Box K12 Sheet Steel
Width
400 mm
Length
400 mm
Depth
120 mm
further information
K-enclosure
2409-2040-12-07
K-enclosure
Width
200 mm
Height
400 mm
Depth
120 mm
Lock
1 quarter turn latch lock
further information
K-enclosure
2409-3040-12-07
K-enclosure
Width
300 mm
Height
400 mm
Depth
120 mm
Lock
1 quarter turn latch lock
further information
Keypad enclosure
2441-4030-12-07
Keypad enclosure
Width
400 mm
Height
300 mm
Depth
120 mm
further information
Keypad enclosure
2441-4030-20-07
Keypad enclosure
Width
400 mm
Height
300 mm
Depth
200 mm
further information
Junction Box Hygienic Equipment HE2451
2451-4030-12-00
Junction Box Hygienic Equipment HE2451
Dimensions
Length: (nominal dimensions/external dimensions): 400/429 mm
Width: (nominal dimensions/external dimensions): 300/329 mm
Depth: (nominal dimensions/external dimensions): 120/120 mm
further information
Save as PDF Save as PDF Direct request
Apparatus rail
Apparatus rail
Apparatus rail suitable for terminal boxes, SN-mini, keypad enclosures and compact69.
Remember
2462-0402-01-41
141 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-01-41
141 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-01-91
191 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-01-91
191 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-02-41
241 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-02-41
241 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-02-91
291 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-02-91
291 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-03-41
341 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-03-41
341 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-03-91
391 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-03-91
391 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-04-91
491 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-04-91
491 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-05-91
591 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-05-91
591 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
2462-0402-06-91
691 mm
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
2462-0502-06-91
691 mm
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
