2408-1515-80-37
Junction Box K8 Sheet Steel
- Protection class IP66
- Captive lid screws
- Detachable clip nuts
- Including equipment rail
- Approvals: cULus
Product description
Junction box for the optimum protection of wirings.
Protective ground connection according to DIN EN 61439-1, bolts M5x10 on lid and body.
Flanged frame 9 mm.
Lid with seamlessly foamed seal.
Screwed lid with captive screws and detachable clip nuts.
Installation system: equipment rails up to enclosure length of 499 mm DIN EN 60715 35 mm x 7.5 mm from enclosure length 500 mm DIN EN 60715 35 mm x 15 mm.
Technical Data
-
Order No.: 2408-1515-80-37
-
Material: Sheet steel
-
Width: 150 mm
-
Depth: 80 mm
-
Length: 150 mm
-
Number of cover screws: 4
-
Sheet thickness: 1,5 mm/0,0,6"
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Protection type: IP66
Type 1, 12, 13; Optional: Type 2, 5, 3, 3R, 4 -
Approval: cULus
-
Cover with 6 screws: 0

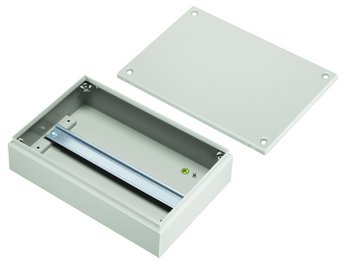

- Junction box with lid and mounted equipment rail

0351-9066-03-00
Wall mounting brackets, Stainless steel
Distance
Wall: 6 mm
Material
Stainless steel


3080-9066-05-05
Wall mounting brackets, Stainless steel
Distance
Wall: 12 mm
Material
Stainless steel

3080-9066-06-05
Wall mounting brackets, Stainless steel
Distance
Wall: 40 mm
Material
Stainless steel



3080-9036-05-18
Cable for Protective Ground Connection
Conductor cross-sections
4 mm2/0,006 in2
Dimensions
Length: 200 mm/7,87"
Drilling diameter d
Ø=5,3 mm
Material
H07V-K

2408-7202-13-04
Screw-on hinge 120°
Material
hinge: zinc die-casting, chrome-plated
mounting hardware: stainless steel
hinge pin: hardened steel
mounting hardware: stainless steel
hinge pin: hardened steel

2408-7202-13-07
Screw-on hinge 120°
Material
hinge: zinc die-casting, black galvanized
mounting hardware: galvanized sheet steel
hinge pin: hardened steel
mounting hardware: galvanized sheet steel
hinge pin: hardened steel
