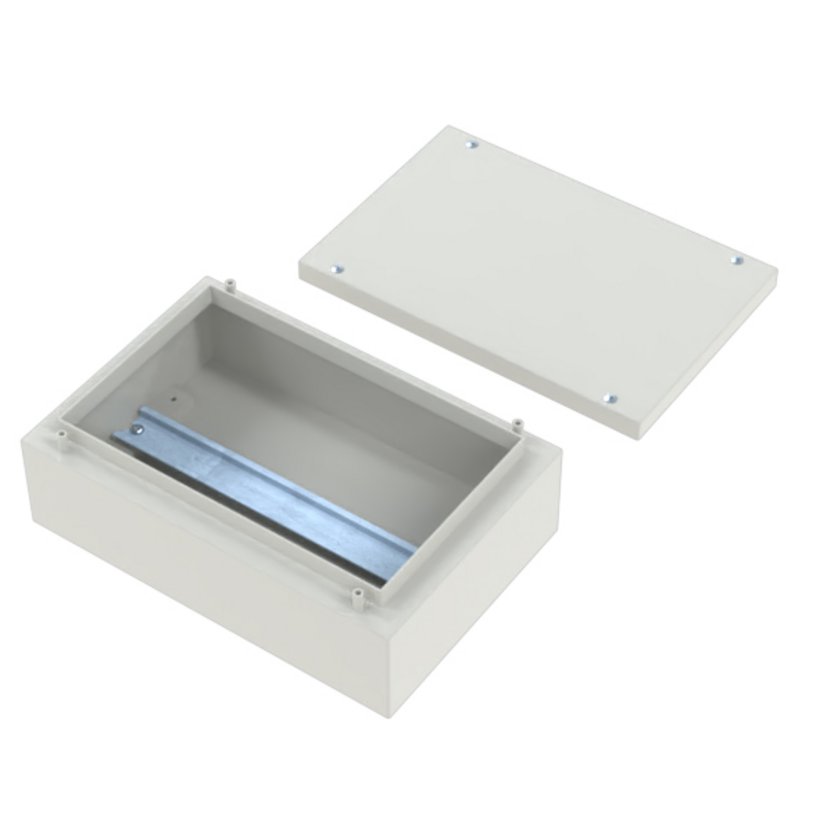

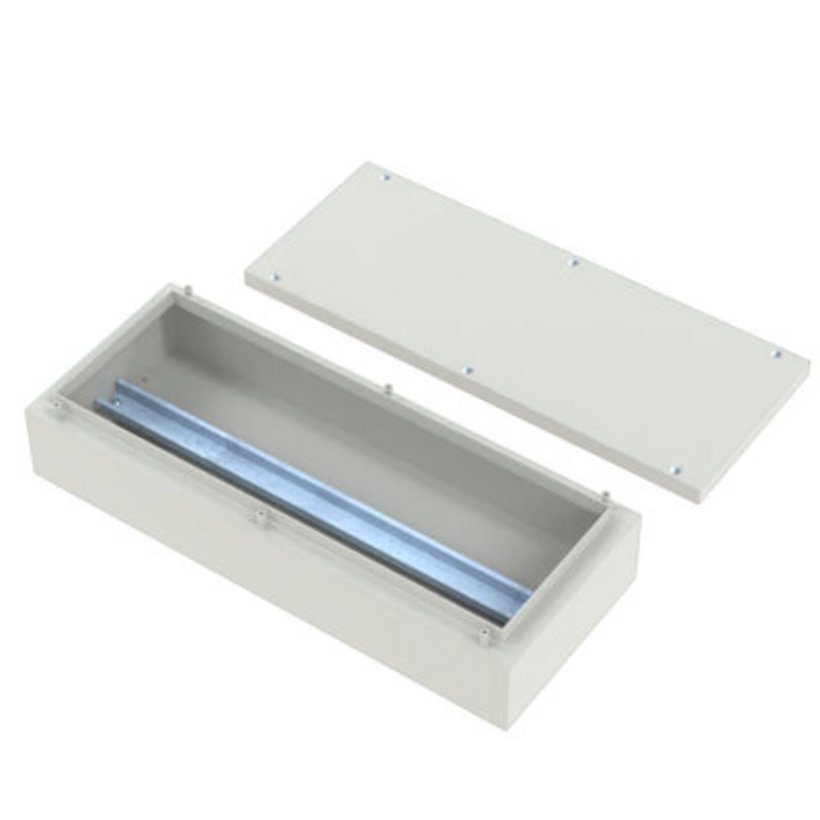

Junction Box K10 Sheet Steel

2410-4020-10-37

Junction Box K10 Sheet Steel

  • Protection class IP66
  • Including apparatus rail
  • Approved: cULus

Product description

Junction boxes for the optimal protection of wiring.

Protective ground connection to DIN EN 61439-1, studs M5x10 on cover and body.

90° framel: 20 mm.

Cover with seamless integrated foamed seal.

Cover screwed with captive screws outlaying the PU seals.

Built-in system: apparatus rail length 499 mm, DIN EN 60715 35 x 7.5 mm, from length 500 mm, DIN 60715 35 x 15 mm.

Steel with improved pre-treatment through iron phosphating and deionized water rinse, as well as eco-friendly powder paint coating.

Technical data

  • Article number: 2410-4020-10-37
  • Material: Sheet steel
  • Width: 200 mm
  • Depth: 100 mm
  • Length: 400 mm
  • Number of cover screws: 6
  • Sheet thickness: 1.5 mm
  • Protective conductor connection: according to DIN EN 61439-1
  • Surface: Powder coating RAL 7035, texture finish
  • Protection class: IP66
    Type 1, 12, 13; Optional: Type 2, 5, 3, 3R, 4
  • Authorization: cULus
  • Box with cover and mounted equipment rail
Wall mounting brackets, Stainless steel
0351-9066-03-00
Wall mounting brackets, Stainless steel
Wall distance
6 mm
Material
Stainless steel
Wall mounting brackets, Sheet steel
3080-9066-02-00
Wall mounting brackets, Sheet steel
Wall distance
6 mm
Material
Sheet steel
Wall mounting brackets, Stainless steel
3080-9066-05-05
Wall mounting brackets, Stainless steel
Wall distance
12 mm
Material
Stainless steel
Wall mounting brackets, Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Wall distance
40 mm
Material
Stainless steel
Wall mounting brackets, Sheet steel
3080-9066-07-03
Wall mounting brackets, Sheet steel
Wall distance
12 mm
Material
Sheet steel
Wall mounting brackets, Sheet steel
3080-9066-06-03
Wall mounting brackets, Sheet steel
Wall distance
40 mm
Material
Sheet steel
Mounting plate
2408-4020-00-12
Mounting plate
Width
155 mm
Height
385 mm
Apparatus rail
2462-0402-03-91
Apparatus rail
Length
391 mm
Version
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
Apparatus rail
2462-0502-03-91
Apparatus rail
Length
391 mm
Version
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
Junction Box K10 Sheet Steel
Junction Box K10 Sheet Steel
Junction boxes for the optimal protection of wiring.
Protective ground connection to DIN EN 61439-1, studs M5x10 on cover and body.
90° framel: 20 mm.
Cover with seamless integrated foamed seal.
Cover screwed with captive screws outlaying the PU seals.
Built-in system: apparatus rail length 499 mm, DIN EN 60715 35 x 7.5 mm, from length 500 mm, DIN 60715 35 x 15 mm.
Steel with improved pre-treatment through iron phosphating and deionized water rinse, as well as eco-friendly powder paint coating.
