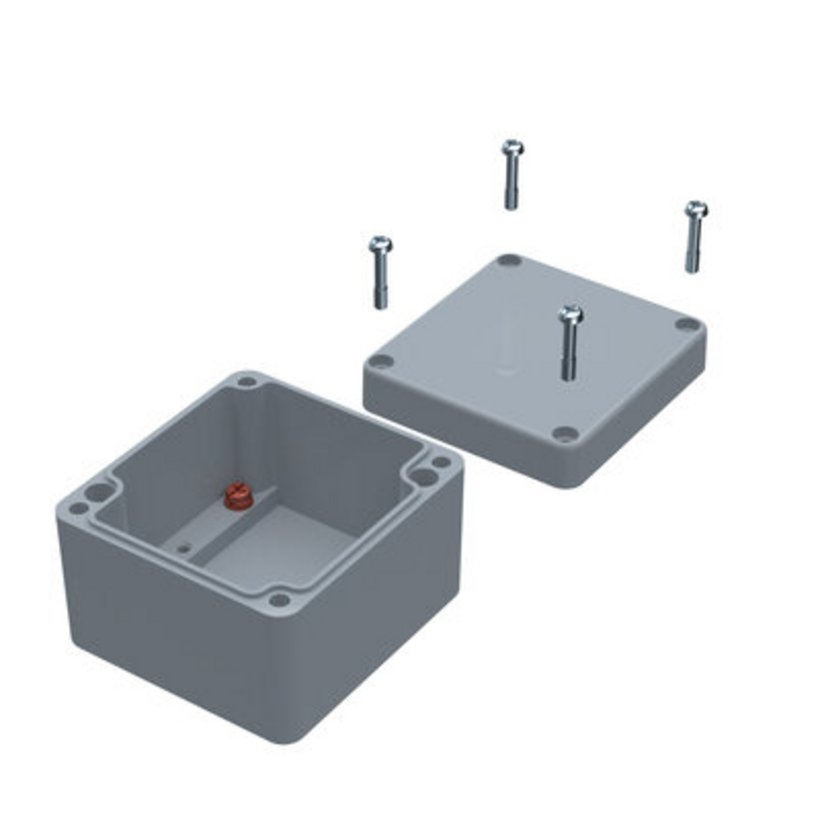

Aluminum Enclosures Type 2374

Download center

Wish List

Protection type: IP66
High chemical resistance.

Product description

Enclosures made of aluminium.

Protective ground connection: 1-4 copper platet screws M4 or M6 with 2 washers.

Seal: neoprene seal on the lid.

Closure: lid screws, see table.

Technical data

Article number: 2374-0504-03-50
Material: Aluminum
Width: 45 mm
Height: 50 mm
Depth: 30 mm
Number of cover screws: 2
Surface: silver-grey structured powder coated similar to RAL 7001
TEMPERATURBEREICH_DIC: Enclosure: -30° up to +80°C
the seal: -30° up to +80°C
Protection class: IP66
Bar on the narrow sides for attaching a mounting plate or mounting rail:

Notice

Housing with internal hinge made of stainless steel (swivel range approx. 95°) on request.
Housing IP67 with silicone cover seal on request.
Housing with hexagonal screw for cover attachment on request.

Aluminum enclosure complete with lid screws.

Mounting instructions:

Mounting Instructions Aluminum Enclosures 2374 - MA

CAD data and other illustrations:

Save as PDF Direct request

Aluminum Enclosures Type 2374

Enclosures made of aluminium.
Protective ground connection: 1-4 copper platet screws M4 or M6 with 2 washers.
Seal: neoprene seal on the lid.
Closure: lid screws, see table.


2374-0504-03-50	45 mm	50 mm	30 mm	IP66
2374-0506-03-50	64 mm	58 mm	36 mm	IP66
2374-0906-03-50	64 mm	98 mm	36 mm	IP66
2374-1506-03-50	64 mm	150 mm	36 mm	IP66
2374-0708-05-50	80 mm	75 mm	57 mm	IP66
2374-0708-05-54	80 mm	75 mm	57 mm	IP66
2374-1208-05-50	80 mm	125 mm	57 mm	IP66
2374-1208-05-54	80 mm	125 mm	57 mm	IP66
2374-1708-05-50	80 mm	175 mm	57 mm	IP66
2374-1708-05-54	80 mm	175 mm	57 mm	IP66
2374-2508-05-50	80 mm	250 mm	57 mm	IP66
2374-1212-08-50	122 mm	122 mm	80 mm	IP66
2374-2212-08-50	122 mm	220 mm	80 mm	IP66
2374-2212-08-54	122 mm	220 mm	80 mm	IP66
2374-3612-08-50	122 mm	360 mm	80 mm	IP66
2374-1616-09-50	160 mm	160 mm	90 mm	IP66
2374-2616-09-50	160 mm	260 mm	90 mm	IP66
2374-2616-09-54	160 mm	260 mm	90 mm	IP66
2374-3616-09-50	160 mm	360 mm	90 mm	IP66
2374-5616-09-50	160 mm	560 mm	90 mm	IP66
2374-2023-11-50	230 mm	200 mm	110 mm	IP66
2374-2023-18-50	230 mm	200 mm	180 mm	IP66
2374-2823-11-50	230 mm	280 mm	110 mm	IP66
2374-3323-11-50	230 mm	330 mm	110 mm	IP66
2374-3323-18-50	230 mm	330 mm	180 mm	IP66
2374-4023-11-50	230 mm	400 mm	110 mm	IP66
2374-4031-11-50	310 mm	402 mm	110 mm	IP66
2374-4031-18-50	310 mm	402 mm	180 mm	IP66
2374-6031-11-50	310 mm	600 mm	110 mm	IP66
2374-6031-18-50	310 mm	600 mm	180 mm	IP66
