2374-2823-11-50

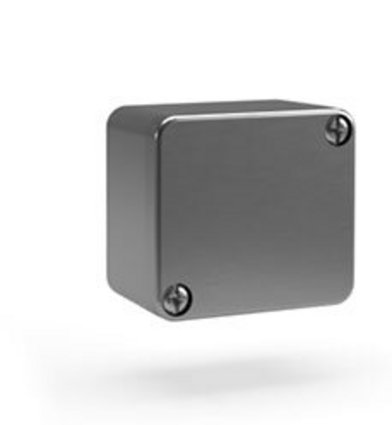

Aluminum Enclosures Type 2374
- Protection type: IP66
- High chemical resistance.
Product description
Enclosures made of aluminium.

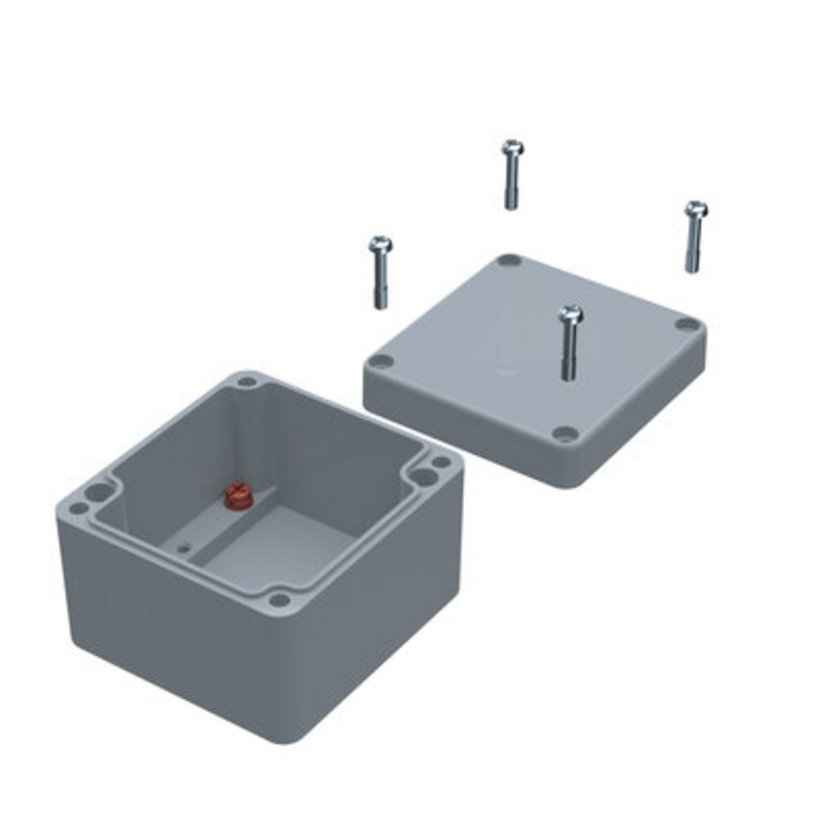

Protective ground connection: 1-4 copper platet screws M4 or M6 with 2 washers.
Seal: neoprene seal on the lid.
Closure: lid screws, see table.
Technical data
-
Article number: 2374-2823-11-50
-
Material: Aluminum
-
Width: 230 mm
-
Height: 280 mm
-
Depth: 110 mm
-
Number of cover screws: 4
-
Surface: silver-grey structured powder coated similar to RAL 7001
-
TEMPERATURBEREICH_DIC: Enclosure: -30° up to +80°C
the seal: -30° up to +80°C -
Protection class: IP66
-
Bar on the narrow sides for attaching a mounting plate or mounting rail:
Notice
- Housing with internal hinge made of stainless steel (swivel range approx. 95°) on request.
- Housing IP67 with silicone cover seal on request.
- Housing with hexagonal screw for cover attachment on request.
- Aluminum enclosure complete with lid screws.
2370-2823-00-62
Mounting plate for aluminum enclosures
Suitable for width
280 mm
Suitable for height
230 mm
2370-0023-00-02
External mounting brackets for aluminum housing
Type
Suitable for depth from 230 mm to 310 mm
Mounting instructions:
CAD data and other illustrations:
