2374-2616-09-50

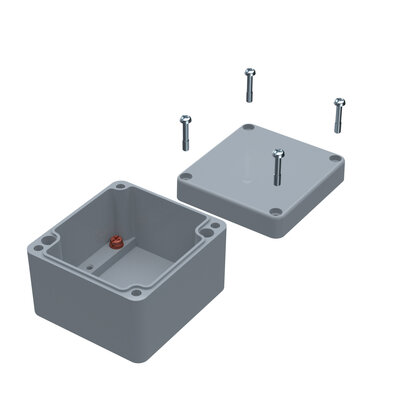

Aluminum Enclosures Type 2374
- Protection type: IP66
- High chemical resistance.
Product description
Enclosures made of aluminium. Particularly suitable for the housing of electrical, electronic and pneumatic components.
Protective ground connection: 1-4 copper platet screws M4 or M6 with 2 washers.
Seal: neoprene seal on the lid
Closure: lid screws, see table.
Technical data
-
Article number: 2374-2616-09-50
-
Material: Aluminum
-
Width: 160 mm
-
Height: 260 mm
-
Depth: 90 mm
-
Number of cover screws: 4
-
Surface: silver-grey structured powder coated similar to RAL 7001
-
TEMPERATURBEREICH_DIC: Enclosure: -30° up to +80°C
the seal: -30° up to +80°C -
Protection class: IP66
-
Bar on the narrow sides for attaching a mounting plate or mounting rail:
Notice
- Enclosure with inner hinge made of rust-proof steel, upon request (svivel range approximately 95°). Enclosures IP67 with silicone cover seal upon request.Enclosure with bar on the narrow side
- Aluminum enclosure complete with lid screws.
2370-2616-00-62
Mounting plate for aluminum enclosures
Suitable for width
260 mm
Suitable for height
160 mm
2370-0012-00-02
External mounting brackets for aluminum housing
Type
Suitable for depth from 122 mm to 160 mm
