2331-0003-40-15

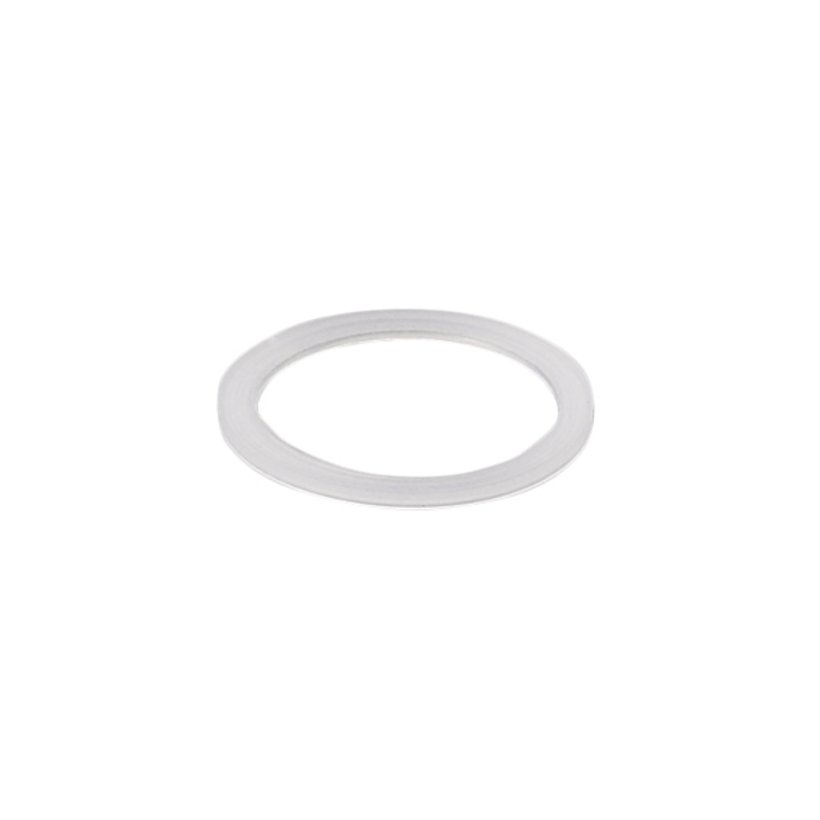

Sealing ring
Product description
For better sealing at connecting thread.
Also suitable for slightly uneven surfaces.
Technical data
-
Article number: 2331-0003-40-15
-
DA: 45 mm
-
FUER_GEWINDE: M 40
-
Material: Polyethylene (PE-LD)
-
Surface: transparent (metric)
-
Temperature resistance: from: -30 °C/-86 °F to: +90 °C/+194 °F
-
Dimension H: 7 mm
- 1 unit
2330-0506-40-15
Cable gland, nickel-plated
Connection thread
metric
Thread
M 40 x 1,5
Clamping range
19 mm
Material
Cap nut + body: Nickel-plated brass
Sealing insert: Polychloroprene-Nitrile rubber CR/NBR
O-Ring: Nitrile rubber NBR
Sealing insert: Polychloroprene-Nitrile rubber CR/NBR
O-Ring: Nitrile rubber NBR
Protection type
IP68
2330-0603-40-15
Cable gland IP55, nickel-plated
Connection thread
metric
Thread
M 40 x 1,5
Clamping range
17 mm
Material
Cap nut + body: Nickel-plated brass
Sealing insert: Polychloroprene-Nitrile rubber CR/NBR
O-Ring: Nitrile rubber NBR
Sealing insert: Polychloroprene-Nitrile rubber CR/NBR
O-Ring: Nitrile rubber NBR
Protection type
IP55
2331-0226-40-15
Cable gland with very high strain relief
Connection thread
metric
Thread
M 40 x 1,5
Clamping range
18 mm
Material
Strain relief + gland body: Polyamide PA6 GF30
Pressure ring: Polyethylene PE-LD
O-Ring: SBR/NBR
Screw + nut: Stainless steel
Pressure ring: Polyethylene PE-LD
O-Ring: SBR/NBR
Screw + nut: Stainless steel
Protection type
IP55
2331-0330-40-15
Cable gland IP68
Connection thread
metric
Thread
M 40 x 1,5
Clamping range
19 mm
Material
Cap nut + gland body: Polyamide PA6 V-2
Sealing ring: Polychloroprene-Nitrile rubber CR/NBR
Sealing ring: Polychloroprene-Nitrile rubber CR/NBR
Protection type
IP68
