3070-0324-20-15

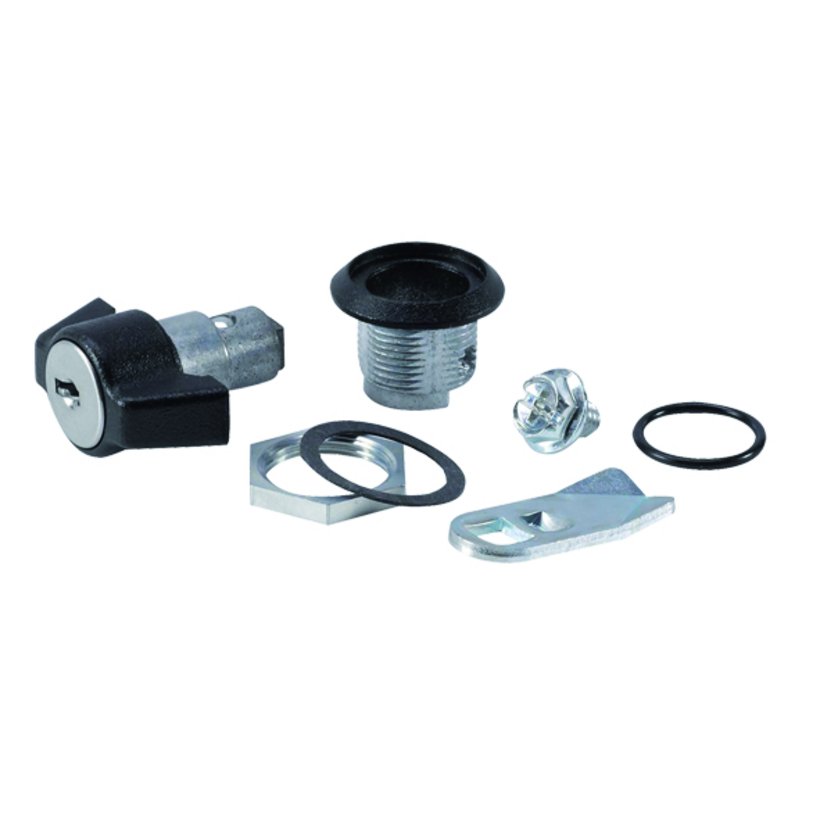

Toggle quarter turn latch lock, small version
- For smaller breakout
Product description
Screwable
Applicable as right hand and left hand lock
The key can be extracted in both positions
Round cylinder with stainless steel cap
Technical data
-
Article number: 3070-0324-20-15
-
Material: Enclosure and toggle: zinc diecasting
Fixing parts: galvanized steel -
Surface: chrome-plated
-
Lockable: ja
-
Dimension b: 13.5 mm
-
Closing distance: 90 °
-
Installation opening: ø 16,3 / VK 14,1
-
Housing height: 13.5 mm
-
Closing: 2233
-
Closing tongue length: 24 mm
- 1 toggle quarter turn latch lock, latch, sealing with fixing nut and 2 key
0335-1010-49-07
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1010-49-17
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-07
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-17
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-5010-49-07
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-5010-49-17
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-07
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-17
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-07
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-17
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
