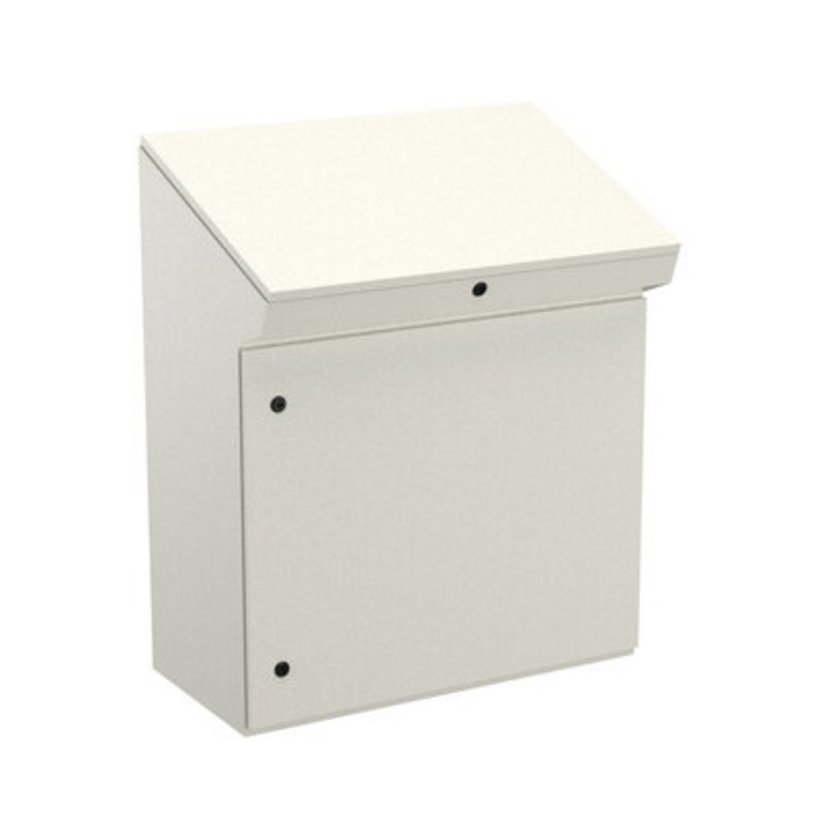

H335 Console, sheet steel, 1 door

0335-8010-49-07

H335 Console, sheet steel, 1 door

  • Console optionally with or without mounting plate
  • Ergonomic design
  • UL type 12

Product description

Use as switchboard or control console, single or overlapping double door version. Optionally with or without mounting plate.

Protective ground connection according to DIN EN 61439-1, M6x16 studs on door, console panel and body.

Door:

The double flanged door frame and narrow door gap avoid the entry of dirt and water while opening the door.

Door with seamless foamed-in gasket, standard stop on the right side, door stop change possible without drilling.

Hidden hinges, made of sheet steel, 180° opening angle.

Lock: single door version with 2 quarter turn latch locks, double door version with 3-point locking system.

Standard locking bolt 3 mm double mandrel,

Both sides with reinforcing / perforated profile with Ø 4.2 mm attachment holes every 25 mm.

Console panel:

Console panel with seamless foamed-in gasket,

hidden hinges, made of sheet steel, max. opening angle 120°, with opening restrictor on right side (from W=800 mm on both sides) 70° opening angle,

Lock: 1 quarter turn latch lock, from B1200 2 quarter turn latch locks

standard locking bolt 3 mm double mandrel,

Front and rear side with reinforcing / perforated profile with Ø 4.2 mm attachment holes every 25 mm.

Cable entry:

Movable cable plate, accept rubber clamps .

Flat mounting plate fixed on rear panel with studs, standard length M8x35, max. 15 mm adjustable to height.

Fixed flanged mounting plate.

Rear panel closed.

Technical data

  • Article number: 0335-8010-49-07
  • Material: Sheet steel
  • Variant: without mounting plate
  • Dimensions: Width : 800 mm  Height : 977 mm  Depth : 492 mm
  • Weight: 42 kg
  • Sheet thickness: Body: 1,5 mm
    Door: 1,5 mm
    Console plate: 2 mm
  • Maximum installation depth: T-122 mm
  • Protective conductor connection: according to DIN EN 61439-1
  • Surface: Powder coating RAL 7035, texture finish
  • Closure: plastic housing, locking bolt: GDZn black, latch: galvanized
  • Protection class: IP55
    Type 1, 12
  • Cabinet type: Console systems
  • Authorization: cULus

Notice

  • Other locking systems and stainless steel version on request.
  • Console complete with cable entry plate + 1 key
