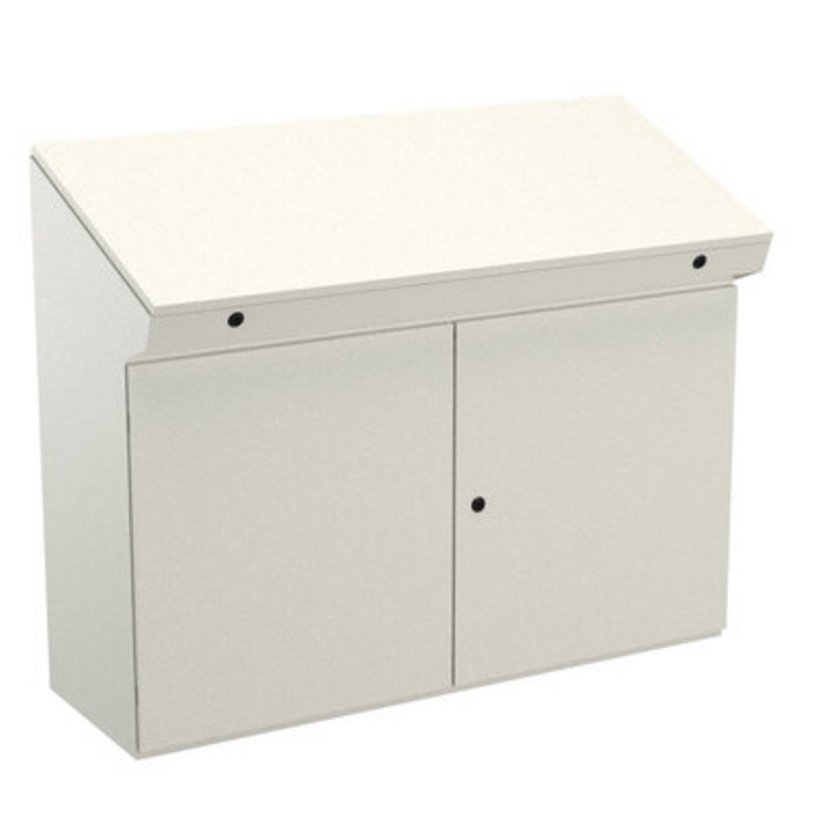

H335 Console, sheet steel, 2 doors

0335-1210-49-17

H335 Console, sheet steel, 2 doors

  • Console optionally with or without mounting plate
  • Ergonomic design
  • UL type 12

Product description

Use as switchboard or control console, single or overlapping double door version. Optionally with or without mounting plate.

Use as switchboard or control console, single or overlapping double door version. Optionally with or without mounting plate.

Protective ground connection according to DIN EN 61439-1, M6x16 studs on door, console panel and body.

Door:

The double flanged door frame and narrow door gap avoid the entry of dirt and water while opening the door.

Door with seamless foamed-in gasket, standard stop on the right side, door stop change possible without drilling.

Hidden hinges, made of sheet steel, 180° opening angle.

Lock: single door version with 2 quarter turn latch locks, double door version with 3-point locking system.

Standard locking bolt 3 mm double mandrel,

Both sides with reinforcing / perforated profile with Ø 4.2 mm attachment holes every 25 mm.

Console panel:

Console panel with seamless foamed-in gasket,

hidden hinges, made of sheet steel, max. opening angle 120°, with opening restrictor on right side (from W=800 mm on both sides) 70° opening angle,

Lock: 1 quarter turn latch lock, from B1200 2 quarter turn latch locks

standard locking bolt 3 mm double mandrel,

Front and rear side with reinforcing / perforated profile with Ø 4.2 mm attachment holes every 25 mm.

Cable entry:

Movable cable plate, accept rubber clamps .

Flat mounting plate fixed on rear panel with studs, standard length M8x35, max. 15 mm adjustable to height.

Fixed flanged mounting plate.

Rear panel closed.

Technical data

  • Article number: 0335-1210-49-17
  • Material: Sheet steel
  • Variant: with mounting plate
  • Dimensions: Width : 1200 mm  Height : 977 mm  Depth : 492 mm
  • Weight: 81 kg
  • Sheet thickness: Body: 1,5 mm
    Door: 2 mm
    Console plate: 2 mm
  • Maximum installation depth: T-116 mm
  • Protective conductor connection: according to DIN EN 61439-1
  • Surface: Powder coating RAL 7035, texture finish
  • Closure: plastic housing, locking bolt: GDZn black, latch: galvanized
  • Mounting plate: sendzimir galvanised, 2,5 mm edged
  • Protection class: IP54
    Type 1, 12
  • Cabinet type: Console systems
  • Authorization: cULus

Notice

  • Other locking types are available upon request.
  • Stainless steel locks are available upon request.
  • Console complete with cable entry plate + 1 key
