Toggle quarter turn latch lock VD1

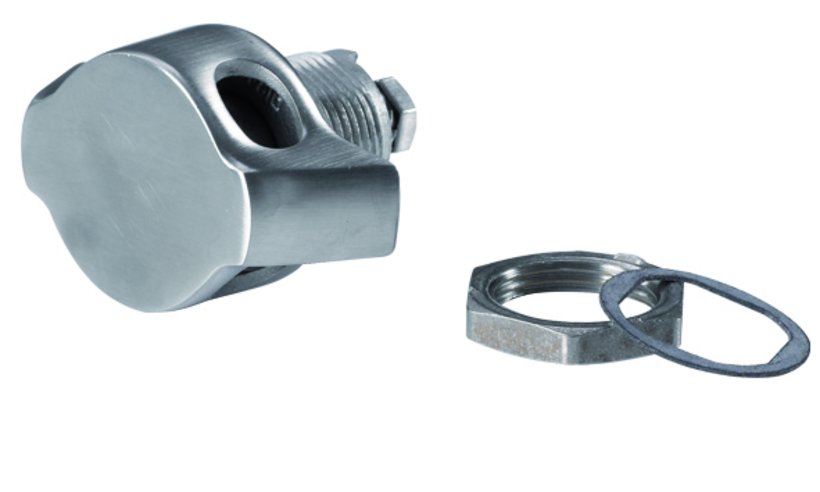

- Quarter turn latch lock for padlocks from stainless steel
Product description
Screwable
Applicable as right hand and left hand lock
Technical data
-

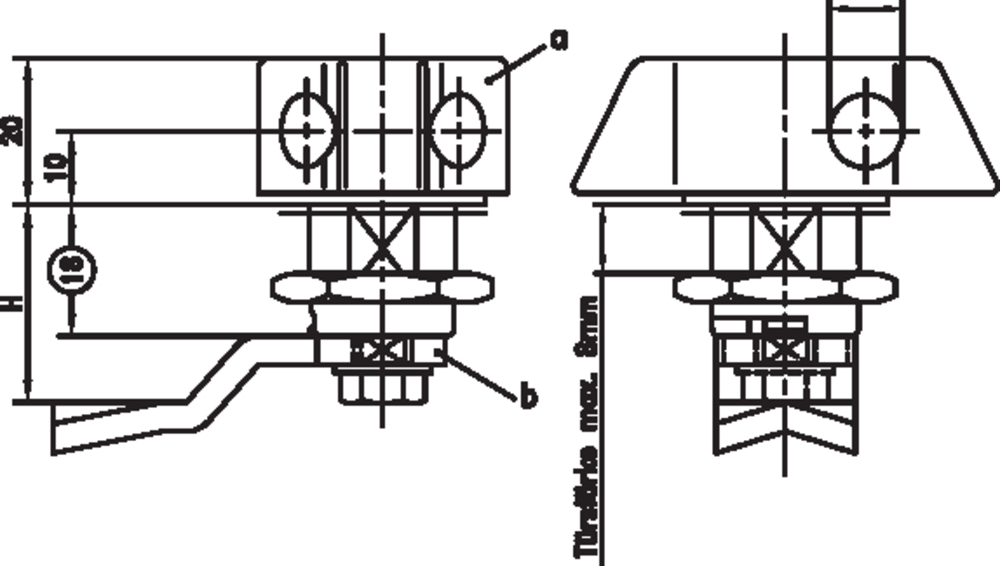

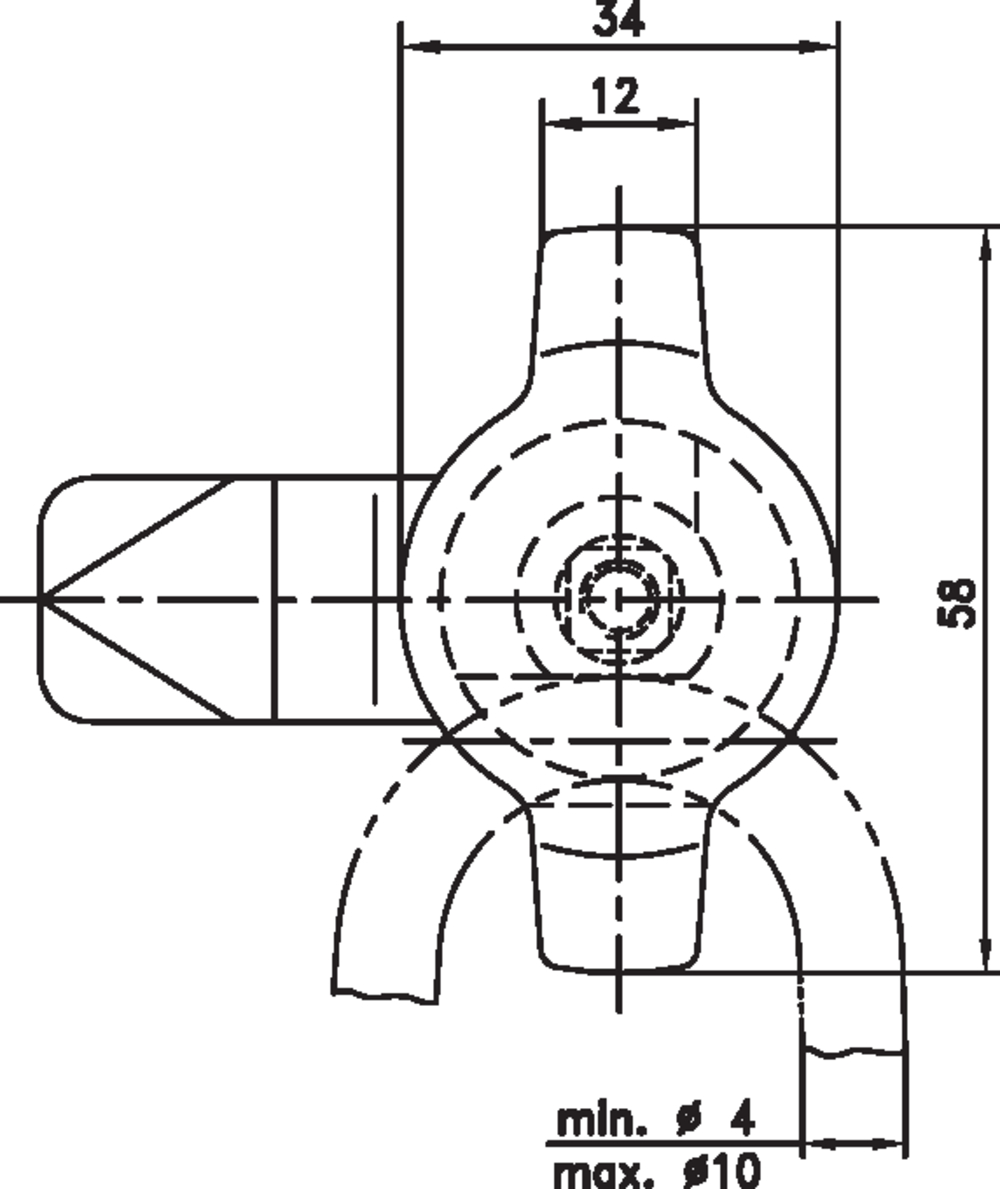

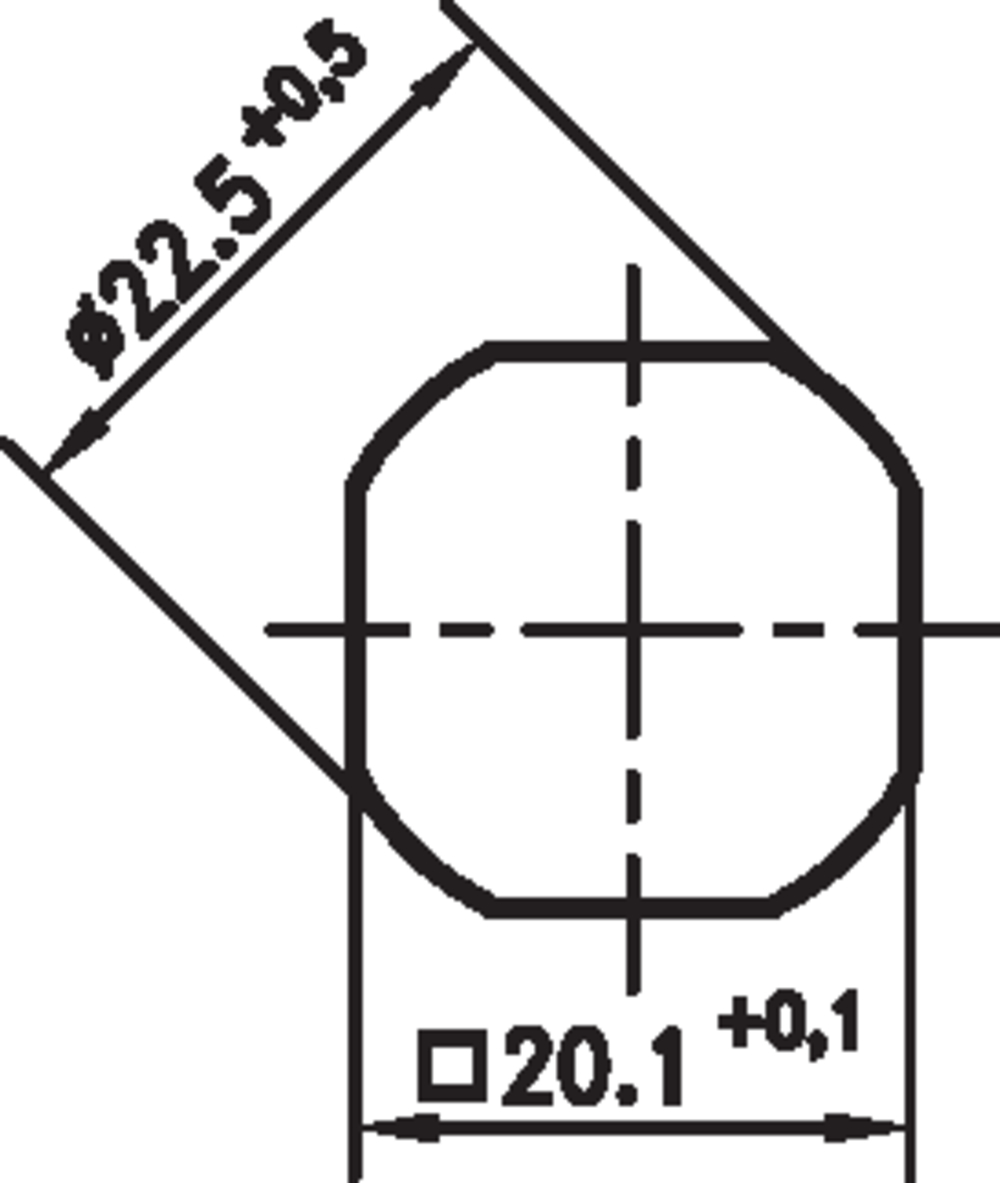

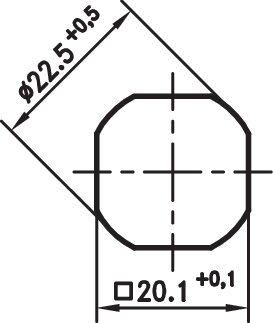

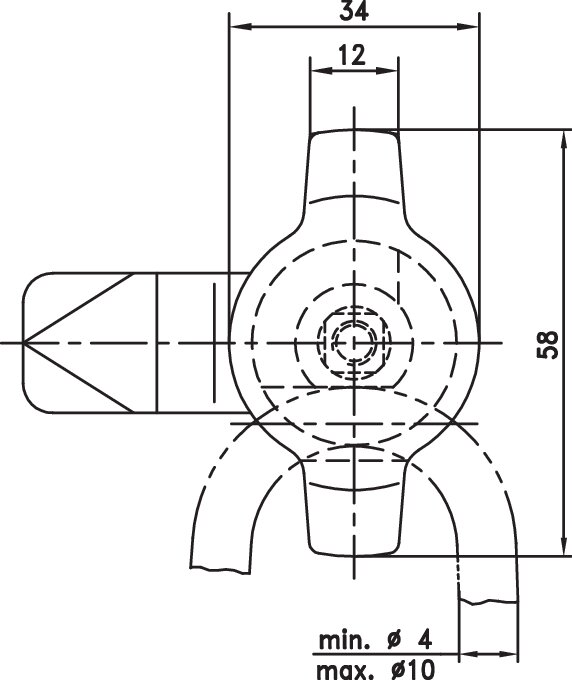

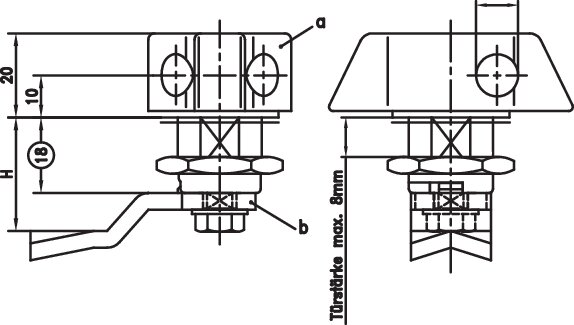

Article number: 3070-0702-85-05
-
Material and surface: enclosure, fixing nut and latch from stainless steel blank, toggle: stainless steel 1.4401 polished
-
Closing distance: 90 °
-
Closing: with padlock
-
Closing height: depending on latch used
-
Protection class: with correctly mounted seal disk IP65
Notice
- For reasons of function the latch has to be mounted at a 90° angle to the toggle. Other shut heights on request.
- 1 quarter turn latch lock, sealing and fixing parts, without latch
