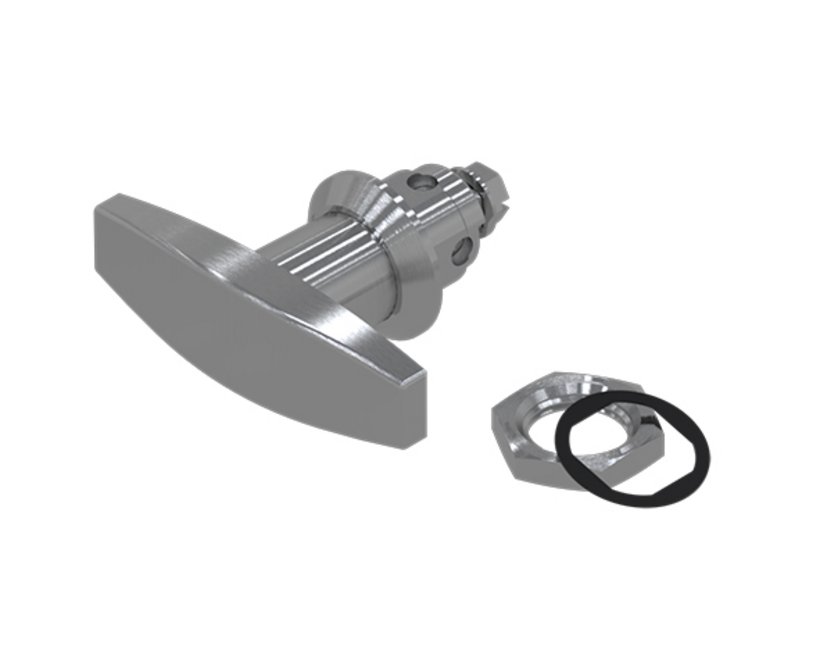

Toggle quarter turn latch lock TD1
Product description
Screwable
Applicable as right hand and left hand lock
Grounding by earthing nut
Door thickness max. 8 mm

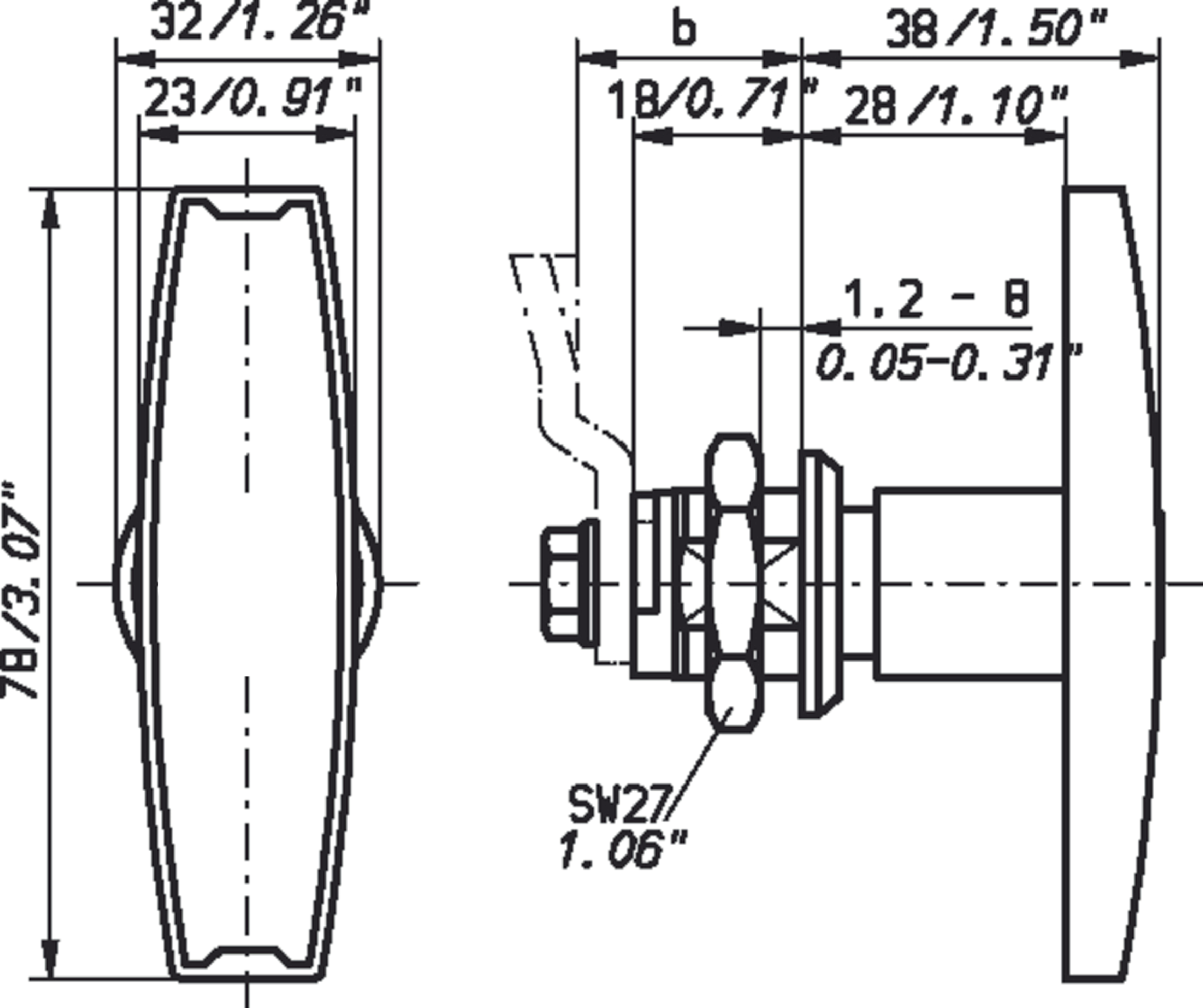

Technical data
-
Article number: 3070-0702-95-05
-
Material: Stainless steel 1.4401
-
Surface: bright, grip polished
-
Closing distance: 90 °
-
Protection class: with correctly mounted seal disk IP65
Notice
- Same quarter turn latch lock but made of chrome-plated zinc die-casting: 3070-7393-00-00
- Quarter turn latch lock, made of chrome-plated zinc die-casting, lockable: 3070-7393-13-13
- Same quarter turn latch lock but made of stainless steel, lockable: upon request
- 1 rotary latch with seal and grounding nut, but without locking tongue
0335-1010-49-07
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1010-49-17
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-07
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-17
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-5010-49-07
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-5010-49-17
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-07
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-17
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-07
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-17
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
