Delivery state: for closure from 12 to 9 o’clock (in case of vertical positioned latch).

Product description

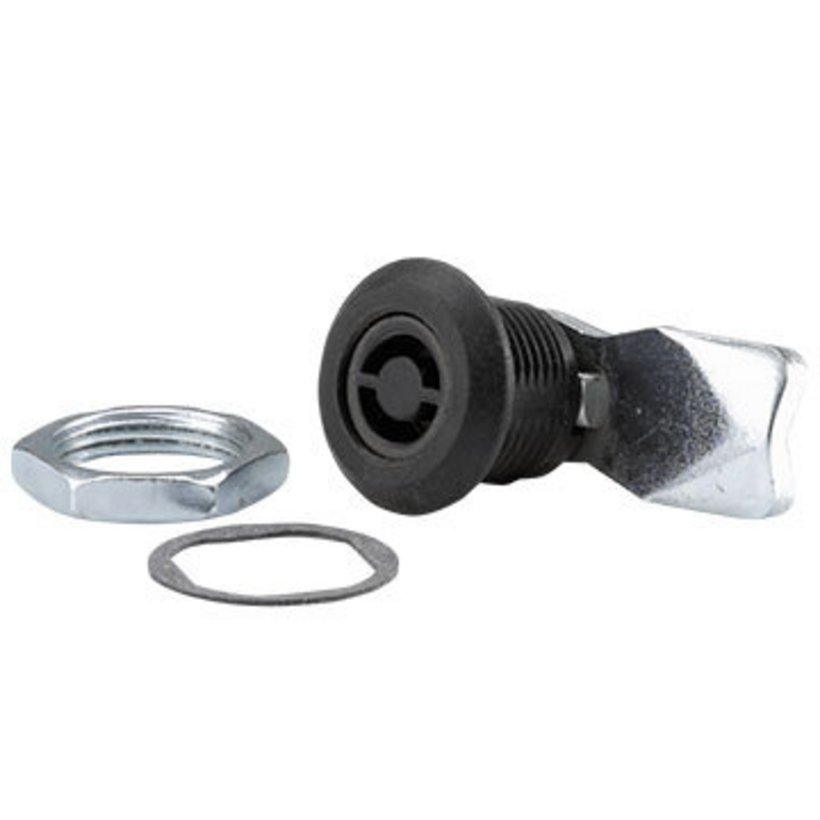

Pre-mounted screw-in quarter turn latch lock.

Applicable as right or left hand lock.

Mounting is possible without disassembly.

The position of the latch is indicated by the position of the bolt or its marking.

Bolts are generally made of steel.

Technical data

Article number: 3070-7504-16-33
Dimension L: 35 mm
Material: Plastic
Surface: black
Version: Daimler-Benz
Dimension b: 18 mm
Protection class: IP65

Notice

By turning the latch and the complete quarter turn latch lock by 90°, the quarter turn latch lock can be used as left hand lock. Other versions on request.

Oops, an error occurred! Code: 202502222334178390c04c

Save as PDF Direct request

Pre-mounted quarter turn latch lock

Pre-mounted screw-in quarter turn latch lock.
Applicable as right or left hand lock.
Mounting is possible without disassembly.
The position of the latch is indicated by the position of the bolt or its marking.
Bolts are generally made of steel.


3070-7504-11-00	Square 6 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-11-01	Square 6 mm	GDZn	black	45 mm	18 mm
3070-7504-11-05	Square 6 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-12-00	Square 7 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-12-01	Square 7 mm	GDZn	black	45 mm	18 mm
3070-7504-12-03	Square 7 mm	Plastic	black	45 mm	18 mm
3070-7504-12-05	Square 7 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-13-00	Square 8 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-13-01	Square 8 mm	GDZn	black	45 mm	18 mm
3070-7504-13-03	Square 8 mm	Plastic	black	45 mm	18 mm
3070-7504-13-05	Square 8 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-13-33	Square 8 mm	Plastic	black	35 mm	18 mm
3070-7504-14-00	Double bit 3 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-14-01	Double bit 3 mm	GDZn	black	45 mm	18 mm
3070-7504-14-03	Double bit 3 mm	Plastic	black	45 mm	18 mm
3070-7504-14-05	Double bit 3 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-14-33	Double bit 3 mm	Plastic	black	35 mm	18 mm
3070-7504-15-00	8 mm triangular	GDZn	chrome-plated	45 mm	18 mm
3070-7504-15-01	8 mm triangular	GDZn	black	45 mm	18 mm
3070-7504-15-03	8 mm triangular	Plastic	black	45 mm	18 mm
3070-7504-15-05	8 mm triangular	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-16-00	Daimler-Benz	GDZn	chrome-plated	45 mm	18 mm
3070-7504-16-01	Daimler-Benz	GDZn	black	45 mm	18 mm
3070-7504-16-03	Daimler-Benz	Plastic	black	45 mm	18 mm
3070-7504-16-05	Daimler-Benz	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-16-33	Daimler-Benz	Plastic	black	35 mm	18 mm
3070-7504-17-00	Triangular 7 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-17-01	Triangular 7 mm	GDZn	black	45 mm	18 mm
3070-7504-17-03	Triangular 7 mm	Plastic	black	45 mm	18 mm
3070-7504-17-05	Triangular 7 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-18-00	Double bit 5 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-18-01	Double bit 5 mm	GDZn	black	45 mm	18 mm
3070-7504-18-03	Double bit 5 mm	Plastic	black	45 mm	18 mm
3070-7504-18-05	Double bit 5 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-18-33	Double bit 5 mm	Plastic	black	35 mm	18 mm
3070-7504-19-00	Slot 2 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-19-01	Slot 2 mm	GDZn	black	45 mm	18 mm
3070-7504-19-03	Slot 2 mm	Plastic	black	45 mm	18 mm
3070-7504-19-05	Slot 2 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-73-03	twist lock	Plastic	black	45 mm	18 mm
3070-7504-84-03	Star grip	Plastic	black	45 mm	18 mm
3070-7604-11-00	Square 6 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-11-01	Square 6 mm	GDZn	black	45 mm	22 mm
3070-7604-11-05	Square 6 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-12-00	Square 7 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-12-01	Square 7 mm	GDZn	black	45 mm	22 mm
3070-7604-12-03	Square 7 mm	Plastic	black	45 mm	22 mm
3070-7604-12-05	Square 7 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-13-00	Square 8 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-13-01	Square 8 mm	GDZn	black	45 mm	22 mm
3070-7604-13-03	Square 8 mm	Plastic	black	45 mm	22 mm
3070-7604-13-05	Square 8 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-14-00	Double bit 3 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-14-01	Double bit 3 mm	GDZn	black	45 mm	22 mm
3070-7604-14-03	Double bit 3 mm	Plastic	black	45 mm	22 mm
3070-7604-14-05	Double bit 3 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-15-00	8 mm triangular	GDZn	chrome-plated	45 mm	22 mm
3070-7604-15-01	8 mm triangular	GDZn	black	45 mm	22 mm
3070-7604-15-05	8 mm triangular	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-16-00	Daimler-Benz	GDZn	chrome-plated	45 mm	22 mm
3070-7604-16-01	Daimler-Benz	GDZn	black	45 mm	22 mm
3070-7604-16-05	Daimler-Benz	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-17-00	Triangular 7 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-17-01	Triangular 7 mm	GDZn	black	45 mm	22 mm
3070-7604-17-05	Triangular 7 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-18-00	Double bit 5 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-18-01	Double bit 5 mm	GDZn	black	45 mm	22 mm
3070-7604-18-03	Double bit 5 mm	Plastic	black	45 mm	22 mm
3070-7604-18-05	Double bit 5 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-19-00	Slot 2 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-19-01	Slot 2 mm	GDZn	black	45 mm	22 mm
3070-7604-19-05	Slot 2 mm	Stainless steel	Unfinished	45 mm	22 mm
