2370-7801-00-00

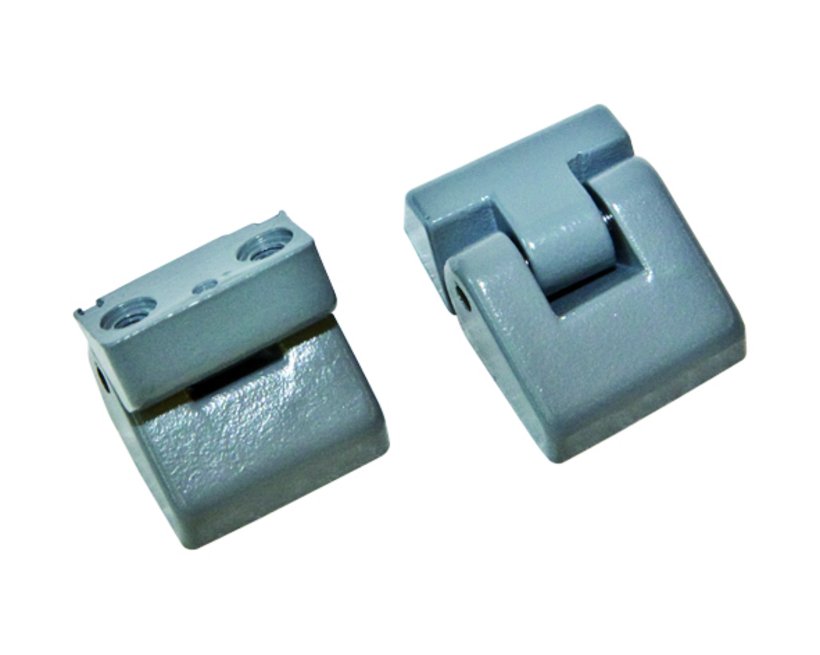

External joint for aluminum enclosures
Product description
External joint (hinge) for mounting covers of aluminum housings type 2374.
Suitable for wall thickness 4-5 mm.
Technical data
-
Article number: 2370-7801-00-00
-
Swivel range: 170°
-
Material: Die-cast aluminum
Notice
- Can be mounted to aluminum housings type 2374 from W = 122 mm/4,81“.
- 2 external joints with mounting hardware.
2374-1212-08-50
Aluminum Enclosures Type 2374
Width
122 mm
Height
122 mm
Depth
80 mm
Protection type
IP66
2374-1616-09-50
Aluminum Enclosures Type 2374
Width
160 mm
Height
160 mm
Depth
90 mm
Protection type
IP66
2374-2023-11-50
Aluminum Enclosures Type 2374
Width
230 mm
Height
200 mm
Depth
110 mm
Protection type
IP66
2374-2023-18-50
Aluminum Enclosures Type 2374
Width
230 mm
Height
200 mm
Depth
180 mm
Protection type
IP66
2374-2212-08-50
Aluminum Enclosures Type 2374
Width
122 mm
Height
220 mm
Depth
80 mm
Protection type
IP66
2374-2212-08-54
Aluminum Enclosures Type 2374
Width
122 mm
Height
220 mm
Depth
80 mm
Protection type
IP66
2374-2616-09-50
Aluminum Enclosures Type 2374
Width
160 mm
Height
260 mm
Depth
90 mm
Protection type
IP66
2374-2616-09-54
Aluminum Enclosures Type 2374
Width
160 mm
Height
260 mm
Depth
90 mm
Protection type
IP66
2374-2823-11-50
Aluminum Enclosures Type 2374
Width
230 mm
Height
280 mm
Depth
110 mm
Protection type
IP66
2374-3323-11-50
Aluminum Enclosures Type 2374
Width
230 mm
Height
330 mm
Depth
110 mm
Protection type
IP66
2374-3323-18-50
Aluminum Enclosures Type 2374
Width
230 mm
Height
330 mm
Depth
180 mm
Protection type
IP66
2374-3612-08-50
Aluminum Enclosures Type 2374
Width
122 mm
Height
360 mm
Depth
80 mm
Protection type
IP66
2374-3616-09-50
Aluminum Enclosures Type 2374
Width
160 mm
Height
360 mm
Depth
90 mm
Protection type
IP66
2374-4023-11-50
Aluminum Enclosures Type 2374
Width
230 mm
Height
400 mm
Depth
110 mm
Protection type
IP66
2374-4031-11-50
Aluminum Enclosures Type 2374
Width
310 mm
Height
402 mm
Depth
110 mm
Protection type
IP66
2374-4031-18-50
Aluminum Enclosures Type 2374
Width
310 mm
Height
402 mm
Depth
180 mm
Protection type
IP66
2374-5616-09-50
Aluminum Enclosures Type 2374
Width
160 mm
Height
560 mm
Depth
90 mm
Protection type
IP66
2374-6031-11-50
Aluminum Enclosures Type 2374
Width
310 mm
Height
600 mm
Depth
110 mm
Protection type
IP66
2374-6031-18-50
Aluminum Enclosures Type 2374
Width
310 mm
Height
600 mm
Depth
180 mm
Protection type
IP66
