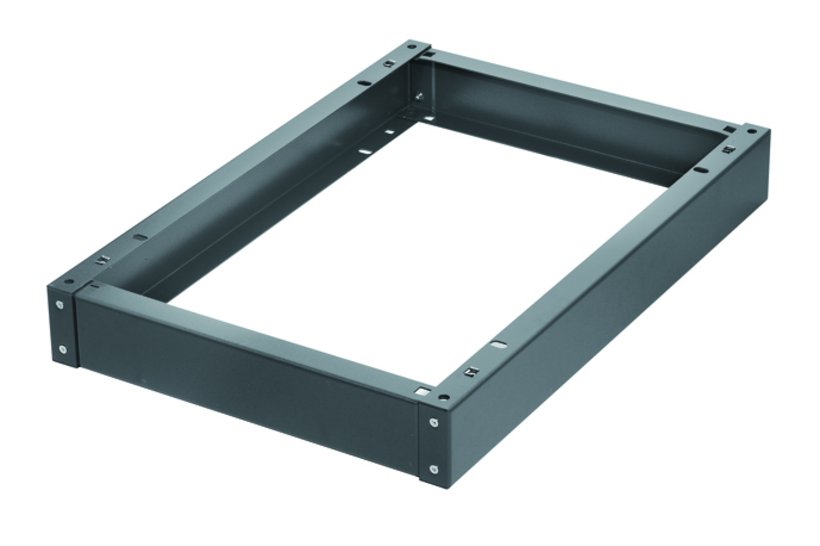

0396-1201-50-17
Bases height 3.94" for H390, H395 abd PC2096
- For free-standing single and ganged-together modular cabinets
- Rugged U-profiles
- High lifting capacity
Product description
Base for installation under cabinets.
For ganged-together modular H395 cabinets the side panels are not installed to get a continuous room for cable distribution.
Technical data
-
Article number: 0396-1201-50-17
-
Dimensions: suitable for width : 1200 mm suitable for depth : 500 mm
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
-
Base dimension (s): 405 mm
-
Weight: 9.1 kg
-
Sheet thickness: 2 mm
-
Base depth (t): 450 mm
Notice
- Bases with order numbers ending in “-27” are designed with cable entry vents, which are equipped with brushes. These bases are recommended for type 2096 PC-cabinets.
- If used with cabinet H390, an offset of 25 mm will be in the back.
- Base complete, unassembled, with assembly and mounting hardware.
0390-1218-50-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-1218-50-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-1220-50-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-1220-50-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1218-50-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1218-50-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1220-50-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1220-50-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
