0396-8001-80-37

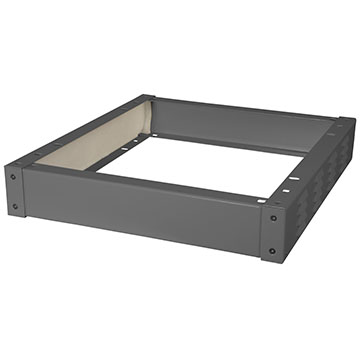

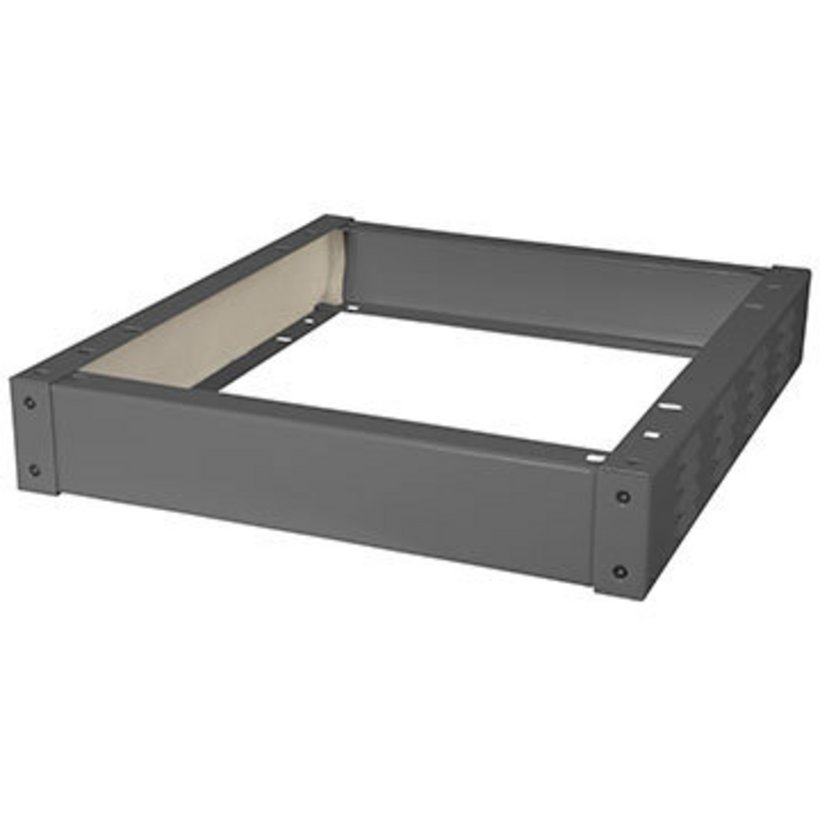

Bases height 3.94" for H390, H395 abd PC2096
- For free-standing single and ganged-together modular cabinets
- Rugged U-profiles
- High lifting capacity
Product description
Base for installation under cabinets.
For ganged-together modular H395 cabinets the side panels are not installed to get a continuous room for cable distribution.
Technical data
-
Article number: 0396-8001-80-37
-
Dimensions: suitable for width : 800 mm suitable for depth : 800 mm
-
Variant: with ventilation slots
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
-
Base dimension (s): 705 mm
-
Weight: 7.5 kg
-
Sheet thickness: 2 mm
-
Base depth (t): 750 mm
Notice
- Bases with order numbers ending in “-27” are designed with cable entry vents, which are equipped with brushes. These bases are recommended for type 2096 PC-cabinets.
- If used with cabinet H390, an offset of 25 mm will be in the back.
- Base complete, unassembled, with assembly and mounting hardware.
0395-8018-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
1800 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-8018-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
1800 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-8020-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
2000 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-8020-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
2000 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
Mounting instructions:
CAD data and other illustrations:
