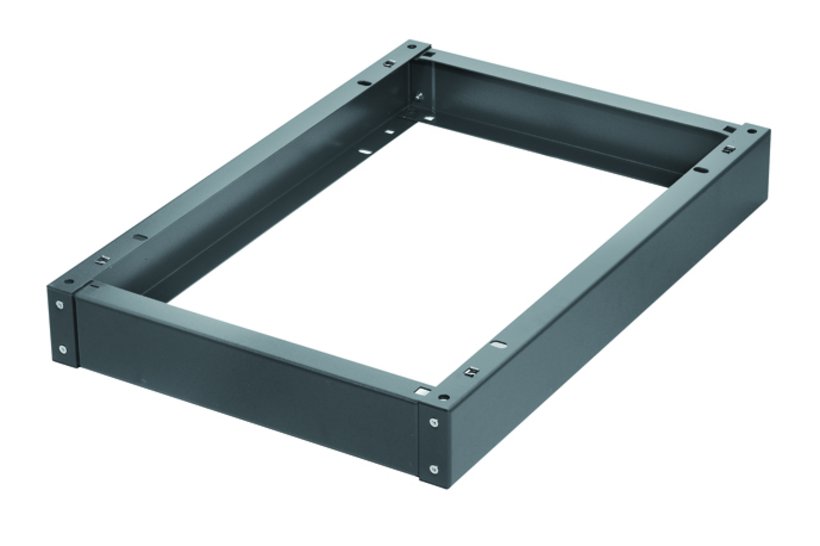

Bases height 3.94" for H390, H395 abd PC2096

0396-8001-80-17

Bases height 3.94" for H390, H395 abd PC2096

  • For free-standing single and ganged-together modular cabinets
  • Rugged U-profiles
  • High lifting capacity

Product description

Base for installation under cabinets.

For ganged-together modular H395 cabinets the side panels are not installed to get a continuous room for cable distribution.

Technical data

  • Article number: 0396-8001-80-17
  • Dimensions: suitable for width : 800 mm  suitable for depth : 800 mm
  • Surface: Powder coated RAL 7022, texture finish
  • Material: Sheet steel
  • Base dimension (s): 705 mm
  • Weight: 8.5 kg
  • Sheet thickness: 2 mm
  • Base depth (t): 750 mm

Notice

  • Bases with order numbers ending in “-27” are designed with cable entry vents, which are equipped with brushes. These bases are recommended for type 2096 PC-cabinets.
  • If used with cabinet H390, an offset of 25 mm will be in the back.
  • Base complete, unassembled, with assembly and mounting hardware.
H395 Modular Sheet Steel Cabinet, Front and Rear Door
0395-8018-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
1800 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
further information
H395 Modular Sheet Steel Cabinet, Front and Rear Door
0395-8018-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
1800 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
further information
H395 Modular Sheet Steel Cabinet, Front and Rear Door
0395-8020-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
2000 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
further information
H395 Modular Sheet Steel Cabinet, Front and Rear Door
0395-8020-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
2000 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
further information
Save as PDF Save as PDF Direct request
Bases height 3.94" for H390, H395 abd PC2096
Bases height 3.94" for H390, H395 abd PC2096
Base for installation under cabinets.
For ganged-together modular H395 cabinets the side panels are not installed to get a continuous room for cable distribution.
Remember
0396-6001-40-17
600 mm
400 mm
Sheet steel
350 mm
0396-8001-40-17
800 mm
400 mm
Sheet steel
350 mm
0396-1001-40-17
1000 mm
400 mm
Sheet steel
350 mm
0396-1201-40-17
1200 mm
400 mm
Sheet steel
350 mm
0396-6001-50-17
600 mm
500 mm
Sheet steel
450 mm
0396-8001-50-17
800 mm
500 mm
Sheet steel
450 mm
0396-1001-50-17
1000 mm
500 mm
Sheet steel
450 mm
0396-1201-50-17
1200 mm
500 mm
Sheet steel
450 mm
0396-6001-60-17
600 mm
600 mm
Sheet steel
550 mm
0396-8001-60-17
800 mm
600 mm
Sheet steel
550 mm
0396-1001-60-17
1000 mm
600 mm
Sheet steel
550 mm
0396-1201-60-17
1200 mm
600 mm
Sheet steel
550 mm
0396-6001-80-17
600 mm
800 mm
Sheet steel
750 mm
0396-8001-80-17
800 mm
800 mm
Sheet steel
750 mm
0396-6001-60-37
600 mm
600 mm
Sheet steel
550 mm
0396-6001-80-37
600 mm
800 mm
Sheet steel
750 mm
0396-8001-60-37
800 mm
600 mm
Sheet steel
550 mm
0396-8001-80-37
800 mm
800 mm
Sheet steel
750 mm
