3185-0020-02-00

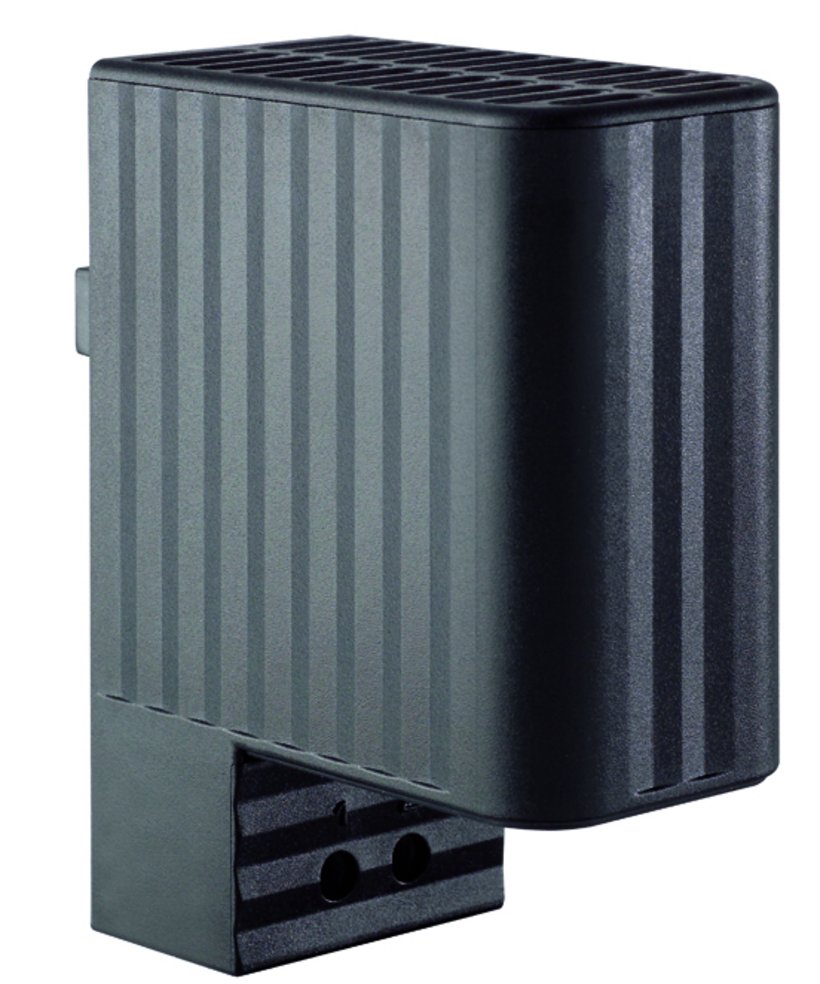

Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
- Small size
- Ensure a minimum operating temperature
- Prevent condensation
- Advantages of heaters with PTC-resistor: Dynamic heating up, temperature limiting, wide voltage range
Product description
Cabinet heaters are used for heating up the air inside a control cabinet. Häwa offers a wide range of cabinet heaters from 10 to 1200 W to optimize the functionality of electric and electronic components, to ensure a minimum operating temperature and for frost monitoring in case of low ambient temperatures and high humidity.
The design of the heater supports the natural convection which results in a high air-flow of warm air.
The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design.
Heating element: Resistor (PTC) temperature limiting.
The heaters are designed for permanent operation.
Quick mounting: snap-on attachment to 35 mm DIN rail.
Technical data
-
Article number: 3185-0020-02-00
-
Protection class: IP20
-
Protection class: II (double insulation)
-
Use/storage temperature: from : -45 °C to : +70 °C
-
Application/storage humidity: max. 90% relative humidity (non-condensing)
-
Surface temperature: at 20°C (68° F) ambient temperature (except upper grid): <+85° C (185° F)
-
Heat output: 20 W
-
MONTAGE: clip for snap-on attachment
-
Electrical connection: 3-pin 2.5 mm2 terminal, max. tightening torque 0.8 Nm
-
Heating element: PTC-resistor temperature limiting
-
Switch-on current: 2.5 A
-
SICHERUNG: 4 A (slow-blow)
-
Authorization: CE; cURus
-
Weight: 0.3 kg
-
Dimensions: Width : 38 mm Height : 98 mm Depth : 75 mm
-
Surface: housing: black plastic, UL94 V-0
-
Nominal voltage: 120 V up to 240 V AC/DC (min. 100 V, max. 265 V)
-
Mounting position: Vertical air flow direction (air outlet at top/connection at bottom)
-
type: CSK20
Notice
- When operating PTC-heaters below AC/DC 140 V the heater output will be reduced by approx. 10%.
- The specified heater output refers to an ambient temperature of 20° C (68° F).
- A safety clearance of 50 to 100 mm to the adjacent components shall be observed (according to the corresponding operation manual).
- 1 heater
