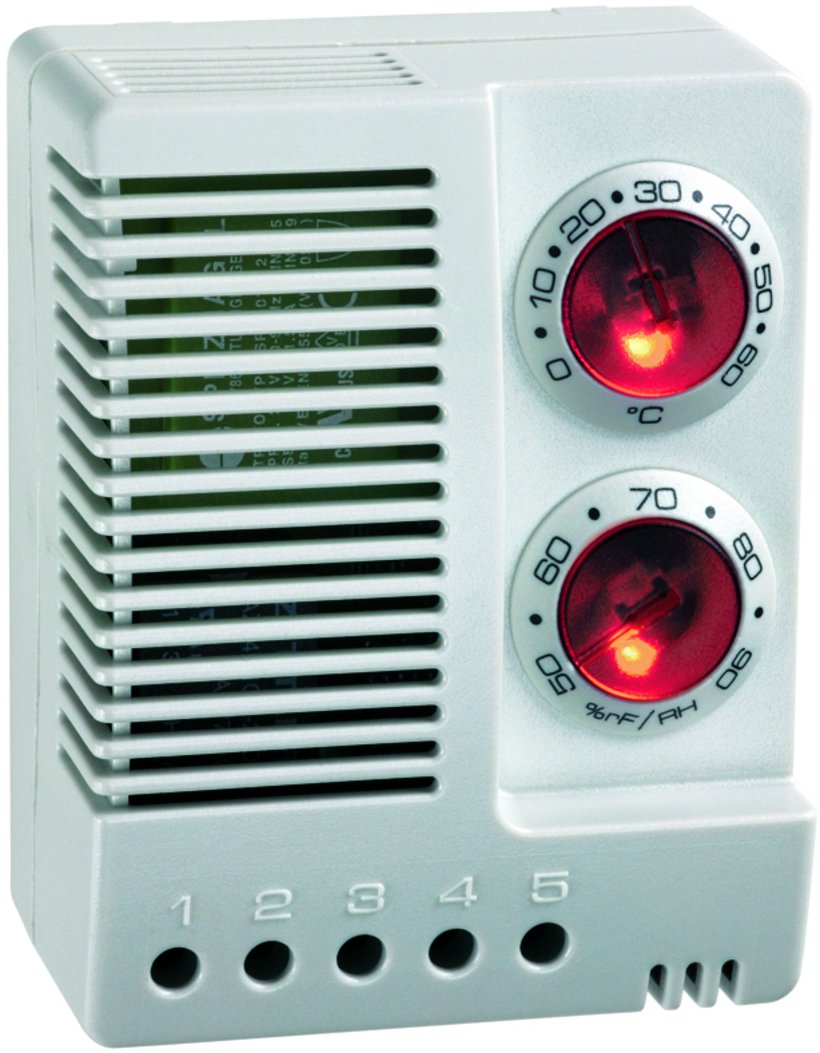

Electronic Hygrotherm ETF012

3150-0060-02-23-01

Electronic Hygrotherm ETF012

  • Temperature and humidity adjustable
  • Wide voltage range
  • Optical operating display (LED)
  • High switching capacity
  • Clip fixing

Product description

The electronic Hygrotherm senses the ambient temperature and relative humidity in enclosures and cabinets with electric/electronic components and turns on a heater (or alternatively, a fan) once the set point is achieved, helping to prevent the formation of condensation in the enclosure. The LED integrated in the adjustment knob on the active controller is lit when the connected device is in operation.

Technical data

  • Article number: 3150-0060-02-23-01
  • Nominal voltage: 120 V up to 240 V AC/DC (min. 100 V, max. 265 V)
  • Protection class: IP20
  • Response time (humidity): approx. 5 sec.
  • Switching differential (humidity): 4 %RH (±1 %tolerance)
  • Switching differential (temperature): 2 K (±1 K tolerance)
  • Frequency: 50 Hz/60 Hz
  • Setting range: 50 to 90% rF, +0 °C to +60 °C
  • Use/storage temperature: from : -40 °C  to : +60 °C
  • Application/storage humidity: max. 90% relative humidity (non-condensing)
  • Contact type: Change-over
  • Max. Switching capacity: Relay output: AC 240 V, 10 (1,6) A; DC 60 V, 0,6 A
  • Max. Inrush current: AC 30 A for 10 sec.
  • Lifetime: VDE: > 10,000 cycles UL: > 6,000 cycles
  • MONTAGE: Clip for 35 mm DIN rail EN 60715
  • Electrical connection: 5-pole terminal, torque 0.5 Nm max.: rigid wire (stranded wire with wire endferrule) 2.5 mm2
  • Weight: 0.2 kg
  • Dimensions: Width : 60 mm  Height : 77 mm  Depth : 43 mm
  • Surface: Plastic according to UL94 V-0, light grey
  • Mounting position: vertical

Notice

  • For controlling DC-heaters > 30W an additional switch module type SM010is required.
