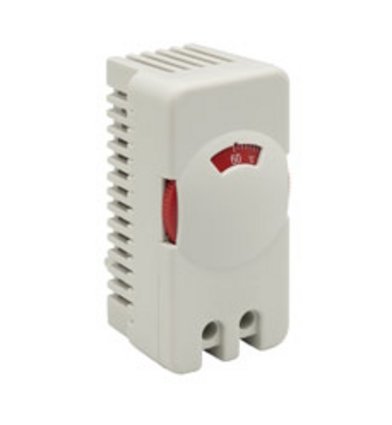

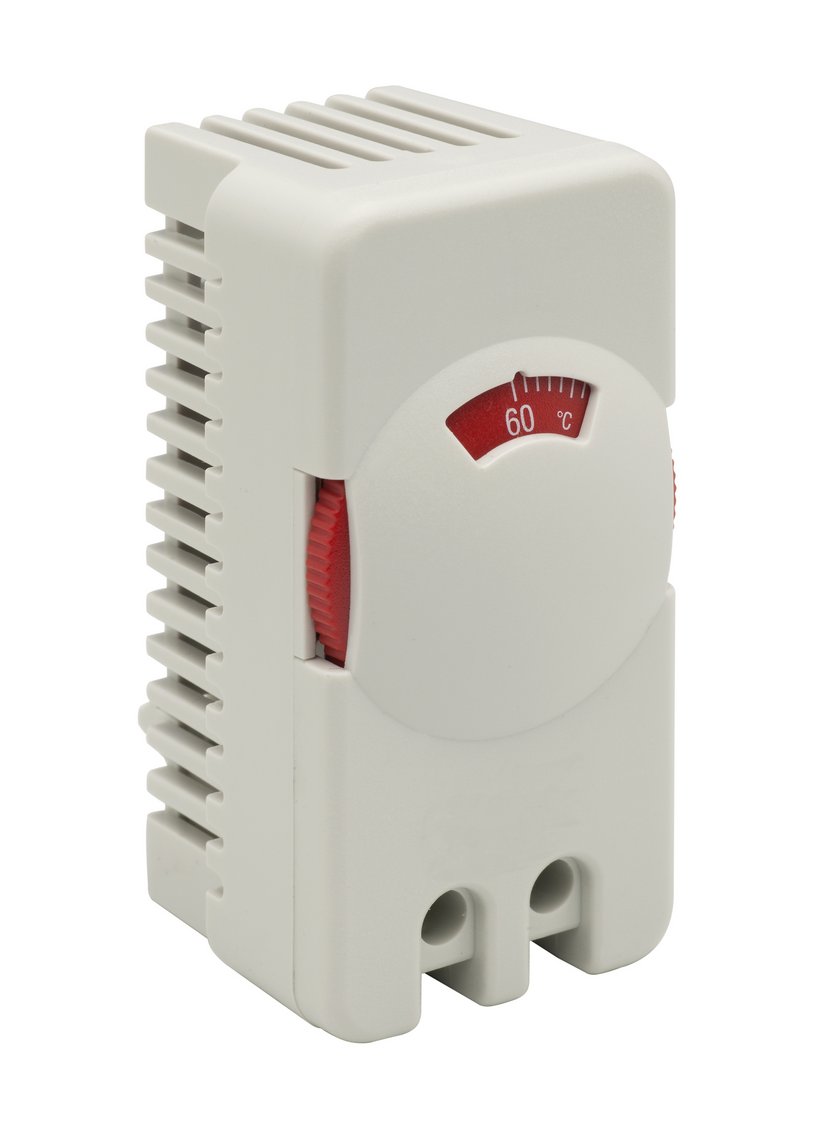

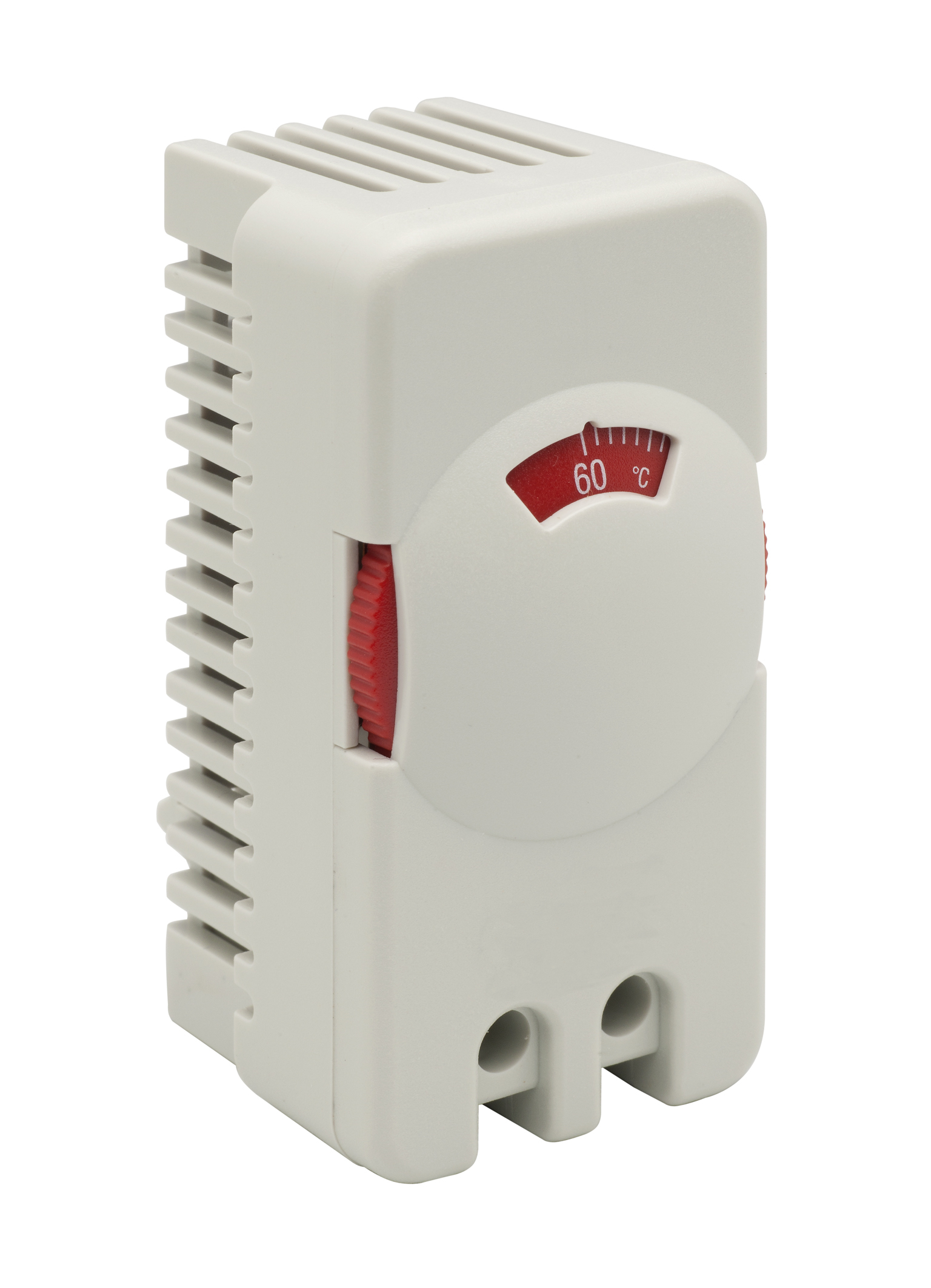

Small Compact Thermostat with Thumbwheel Setting Dial

3150-1060-02U30

Small Compact Thermostat with Thumbwheel Setting Dial

  • Very small dimensions
  • Large adjustment range
  • Thumbwheel setting dial
  • Small hysteresis

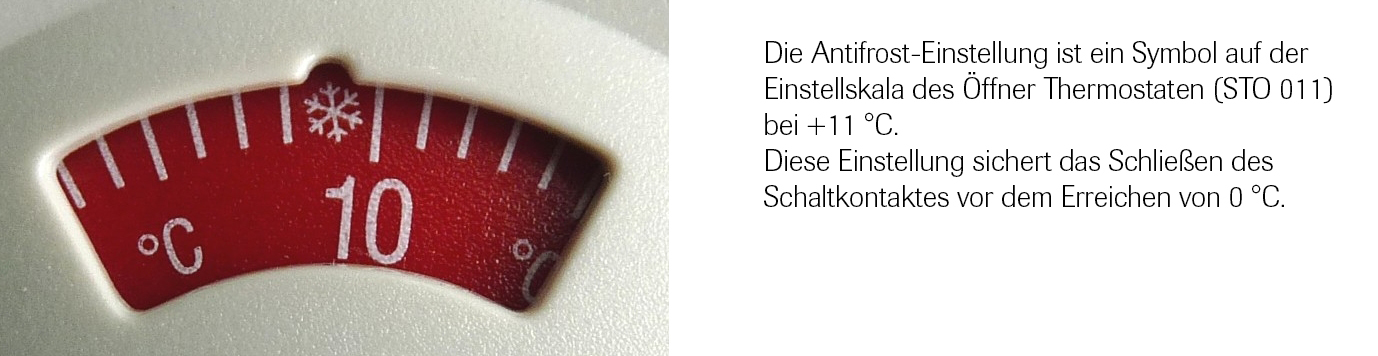

  • Anti-frost assurance
  • Optimized enclosure for better air flow
  • Easy snap-on attachment on 35 mm DIN rails to DIN EN 60715

Product description

These mechanical thermostats are two state regulators with small hysteresis. The setting wheel of the normally open contact version has an anti-frost assurance. The enclosure ensures an optimized air circulation around the bimetal.

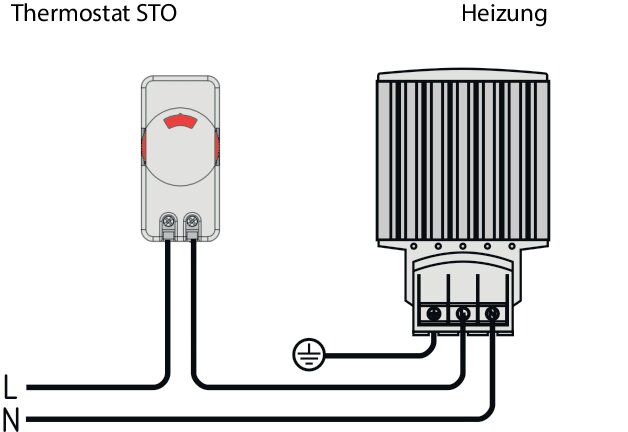

Thermostat-NC STO 011 contact breaker for controlling heaters. The contact opens when temperature is rising.

Thermostat-NO STS 011 contact maker for controlling filter fans, heat exchangers, air conditioners or for switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.

Technical data

  • Article number: 3150-1060-02U30
  • Protection class: IP20
  • Switching hysteresis: 4K +/- 3K
  • Contact type: Snap-action contact
  • Max. Switching capacity: AC 250V, 10 (2) A / AC 120V, 15 (2) A / DC 30 W bei DC 24V bis DC 72V
  • Max. Inrush current: AC
  • Lifetime: >100.000 cycles
  • Sensor element: Bimetal
  • Regulation: Opened con. (heating)
  • MONTAGE: Clip for 35 mm DIN rail EN 60715
  • Electrical connection: 2-poleterminal, clamping torque1 Nm max.:rigid/stranded wire 2.5qmm (AWG 14)
  • Weight: 50 g
  • Dimensions: Width : 33 mm  Height : 70 mm  Depth : 42 mm
  • Surface: Plastic light grey UL94VO
  • type: STO 011
  • Mounting position: variable

Notice

  • When connecting with stranded wires, use wireend ferrules.The contact system of the regulator is subjectedto environmental influences, thus the contactresistance may change. This may lead to avoltage drop and/or self-heating of the contacts.
  • 1 thermostat with snap-on attachment
