3150-3025-00-00

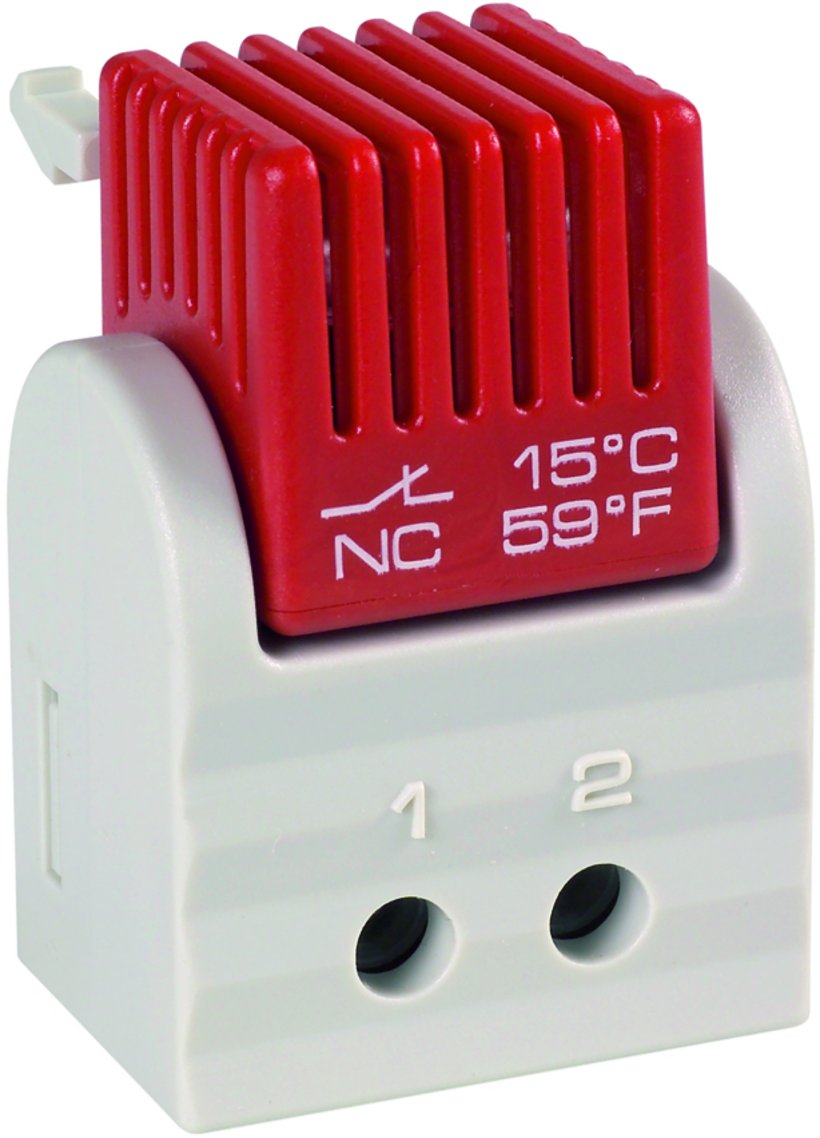

Fix-Thermostat FTO
- Small size
- Default temperature settings
- Easy to install
Product description

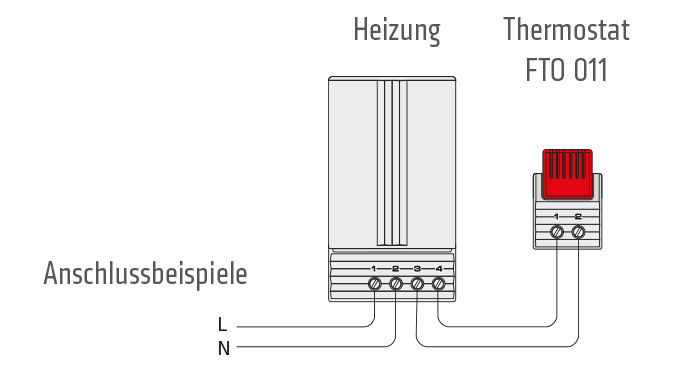

Normally closed contact / NC for controlling heaters or for switching signal devices when temperature has fallen below the minimum value.
The contact opens when temperature is rising.
High switching accuracy.
Technical Data
-
Order No.: 3150-3025-00-00
-
Protection type: IP20
-
Temperature range: Switch-off temperature: +25 °C, Starting temperature: +15 °C
-
Operating temperature: from : -40 °C to : +80 °C
-
LAGERTEMPERATUR: LAGERTEMPERATUR_VON : -45 °C LAGERTEMPERATUR_BIS : +80 °C
-
Contact type: Snap-action contact
-
Max. switching capacity: Change-over
-
Max. starting current: AC 16 A for 10 Sec.
-
Service lifetime: >100.000 cycles
-
Sensor element: Thermoplastic
-
Control system: Opened con. (heating)
-
Mounting: Clip for 35 mm DIN rail EN 60715
-
Electrical connection: 2-pole max. 2.5 mm², clamping screw with strain relief, max. torque 0.8Nm
-
Weight: 30 g
-
Dimension: Width : 33 mm Height : 47 mm Depth : 33 mm
-
Surface: Plastic according to UL94 V-0, light grey
-
Type: FTO25
-
Fitting position: variable
- Fix-Thermostat
3184-0150-02-12
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
115 V AC
Heater output
150 W
Approval
CE; cURus
3184-0150-02-23
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
230 V AC
Heater output
150 W
Approval
CE; cURus
3184-0250-02-12
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
115 V AC
Heater output
250 W
Approval
CE; cURus
3184-0250-02-23
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
230 V AC
Heater output
250 W
Approval
CE; cURus
3184-0400-02-12
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
115 V AC
Heater output
400 W
Approval
CE; cURus
3184-0400-02-23
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
230 V AC
Heater output
400 W
Approval
CE; cURus
3185-0010-02-00
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
120 V up to 240 V AC/DC (min. 100 V, max. 265 V)
Heater output
10 W
Approval
CE; cURus
3185-0010-02-24
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
10 W
Approval
CE
3185-0020-02-00
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
120 V up to 240 V AC/DC (min. 100 V, max. 265 V)
Heater output
20 W
Approval
CE; cURus
3185-0020-02-24
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
20 W
Approval
CE
3186-0050-02-00
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
Heater output
50 W
Approval
CE; cURus
3186-0100-02-00
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
Heater output
100 W
Approval
CE; cURus
3186-0150-02-00
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
Heater output
150 W
Approval
CE; cURus
