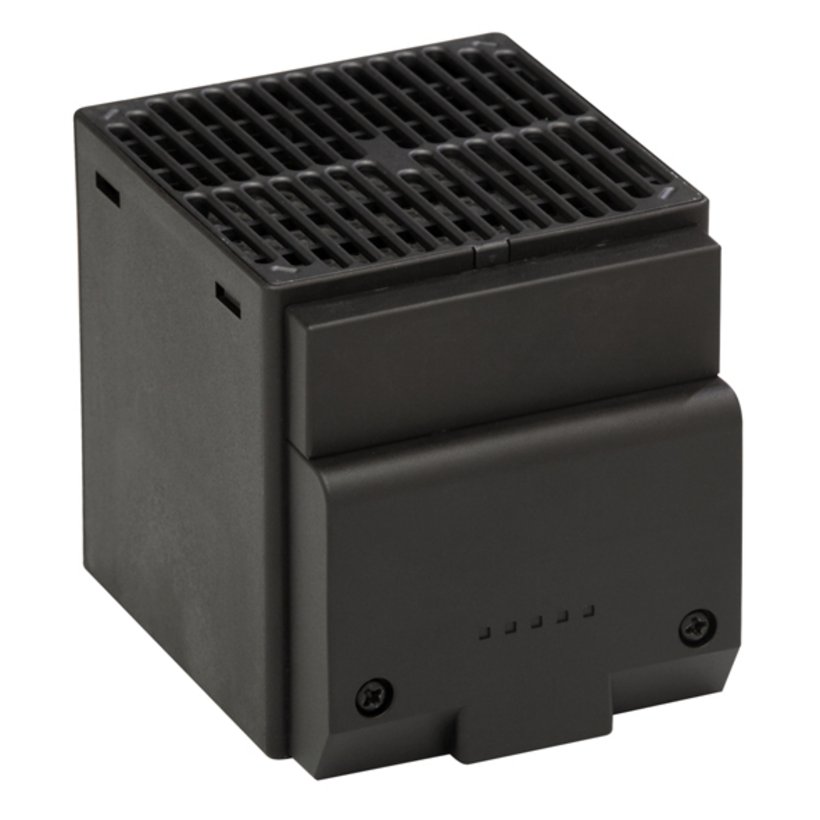

Small Fan Heater Type HG with PTC-Resistor
- Small compact design
- Ensure a minimum operating temperature
- Prevent condensation
- Advantages of heaters with PTC-resistor: Dynamic heating up, temperature limiting, wide voltage range
- Advantages fan heaters: small compact design, quiet operation
Product description
Cabinet heaters are used for heating up the air inside a control cabinet. Häwa offers a wide range of cabinet heaters from 10 to 1200 W to optimize the functionality of electric and electronic components, to ensure a minimum operating temperature and for frost monitoring in case of low ambient temperatures and high humidity.
Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.
The heater is connected using the internal terminal connectors.
The small size makes it ideal for use in enclosures where space is at a premium.
Dynamic heating up through PTC-resistor (PTC-resistor, temperature limiting).
Axial fan with ball bearing provides forced air circulation inside the cabinet.
Technical data
-
Article number: 3184-0150-02-23
-
Frequency: 50 Hz/60 Hz
-
Protection class: IP20
-
Protection class: II (double insulation)
-
Use/storage temperature: from : -45 °C to : +70 °C
-
Application/storage humidity: max. 90% relative humidity (non-condensing)
-
Surface temperature: at 20°C (68° F) ambient temperature (except upper grid): max. +50° C (122° F)
-
Heat output: 150 W
-
MONTAGE: clip for snap-on attachment
-
Electrical connection: 3-pin 2.5 mm2 terminal, max. tightening torque 0.8 Nm
-
Heating element: PTC-resistor temperature limiting
-
Switch-on current: 12 A
-
SICHERUNG: 10 A (slow-blow)
-
Authorization: CE; cURus
-
Weight: 0.3 kg
-
Dimensions: Width : 65 mm Height : 75 mm Depth : 90 mm
-
Surface: housing: black plastic, UL94 V-0
-
Nominal voltage: 230 V AC
-
Mounting position: Vertical air flow (air outlet at top)
-
type: HG 150
Notice
- The specified heating capacity refers to an ambient temperature of 20° C (68° F).
- A safety clearance of 50 to 100 mm to the adjacent components shall be observed (according to the corresponding operation manual).
- Versions with screw flange attachment are available upon request.
- 1 fan heater
Fix-Thermostat FTO
Fix-Thermostat FTO
Small Compact Thermostat with Thumbwheel Setting Dial
Electronic Hygrotherm ETF012
- 3184-0150-02-23 - dxf
- 3184-0150-02-23 - step
- 3184-0150-02-23 - pdf
- Small Fan Heater HG150, HG250, HG400 Heating capacity/Ambient temperature diagram- jpeg (en)

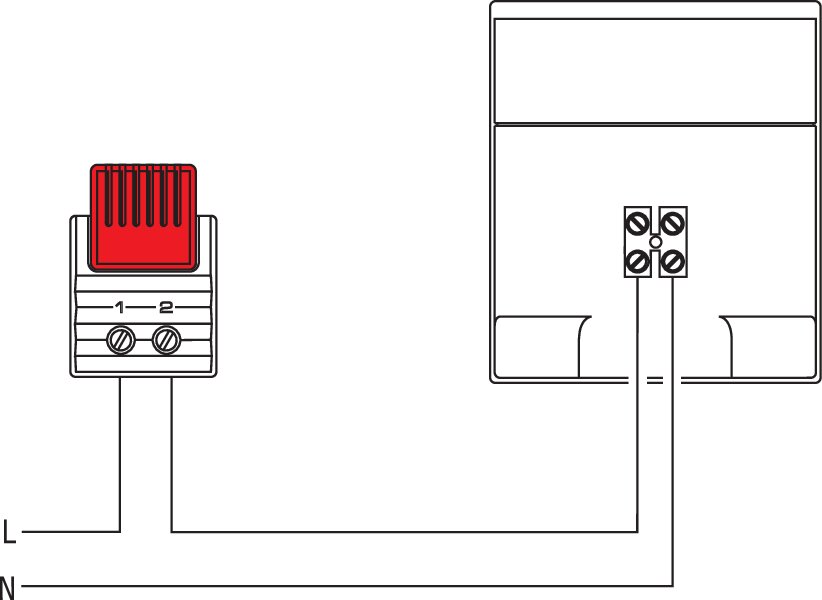

- Small Fan Heater HG150, HG250, HG400 Example of connection - jpeg

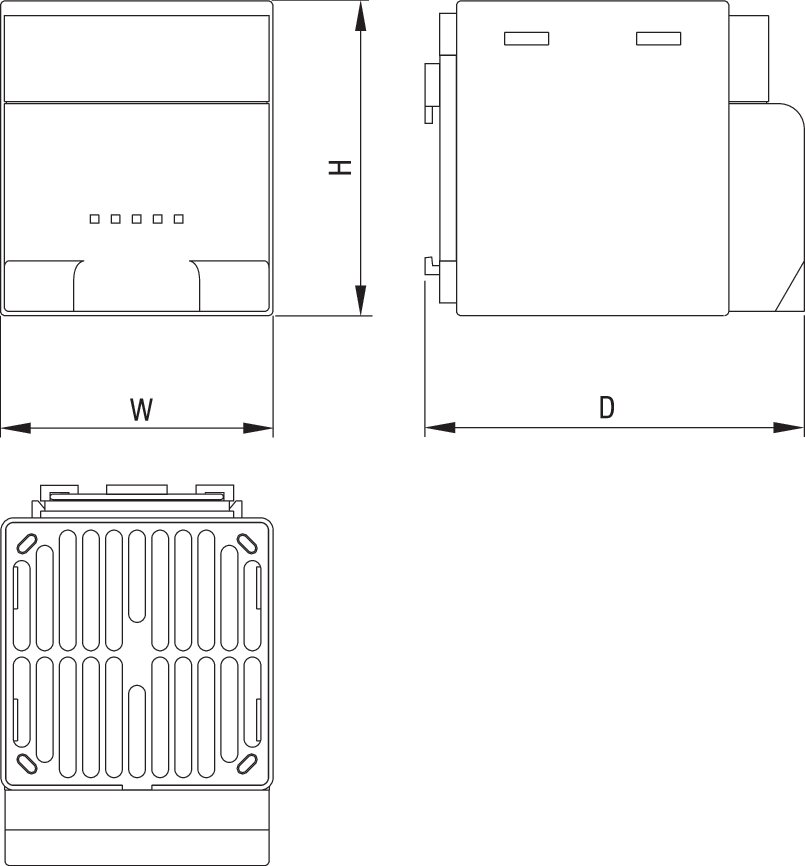

- Small Fan Heater Abm HG150, HG250, HG400 Dimensions - jpeg

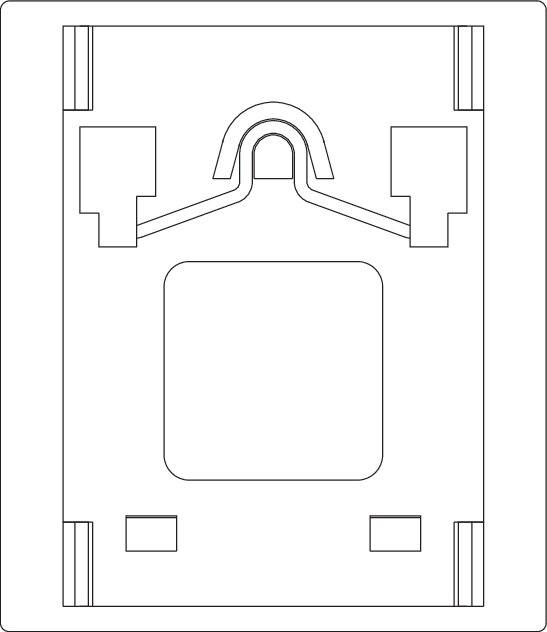

- Small Fan Heater HG150, HG250, HG400 Clip - jpeg
