3150-4035-00-00

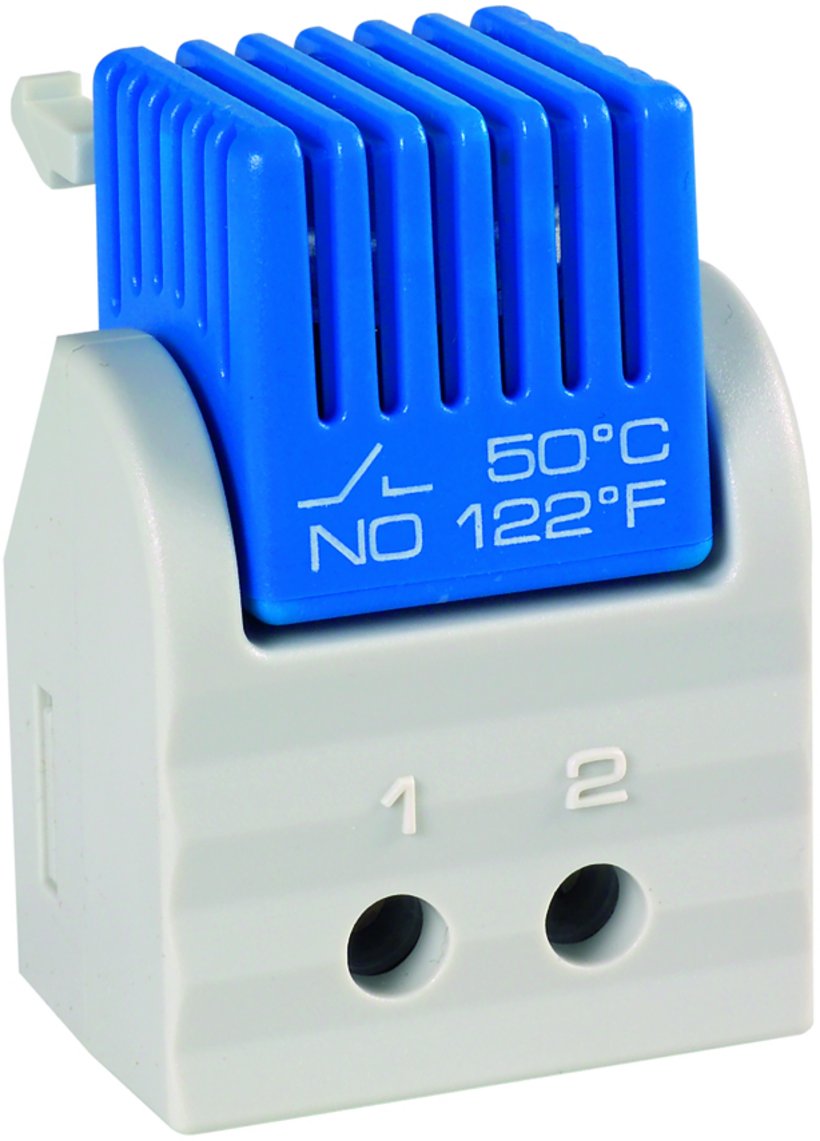

Fix-Thermostat FTS
- Small size
- Default temperature setting
- Easy to install
- Clip attachment
Product description

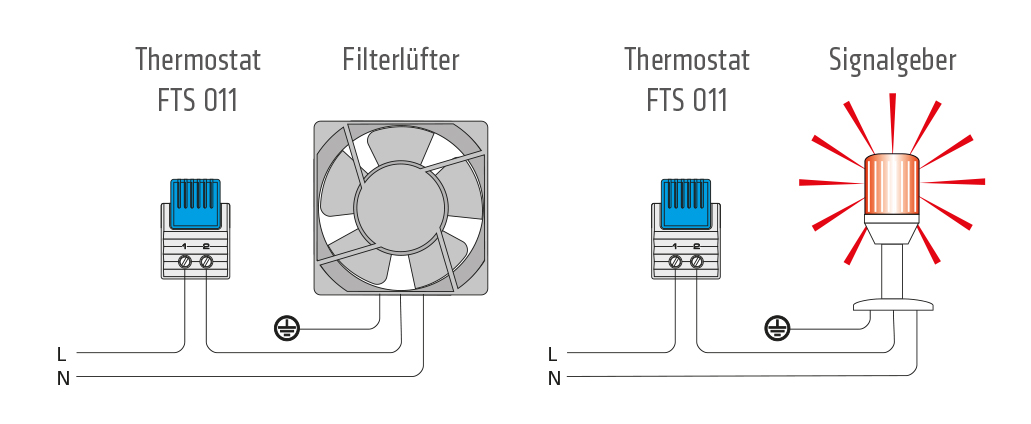

Normally open contact / NO for controlling filter fans, heat exchangers, air conditioners or for switching signal devices when temperature limit has been exceeded.
The contact closes when temperature is rising.
High switching accuracy.
Technical data
-
Article number: 3150-4035-00-00
-
Protection class: IP20
-
TEMPERATURBEREICH_DIC: Switch-off temperature: +25 °C, Starting temperature: +35 °C
-
Operating temperature: from : -40 °C to : +80 °C
-
Storage temperature: from : -45 °C to : +80 °C
-
Contact type: Snap-action contact
-
Max. Switching capacity: Change-over
-
Max. Inrush current: AC 10 A for 10 Seconds
-
Lifetime: >100.000 cycles
-
Sensor element: Thermoplastic
-
Regulation: Closed con. (cooling)
-
Electrical connection: 2-pole max. 2.5 mm², clamping screw with strain relief, max. torque 0.8Nm
-
Weight: 30 g
-
Dimensions: Width : 93 mm Height : 47 mm Depth : 33 mm
-
Surface: Plastic according to UL94 V-0, light grey
-
type: FTS35
-
Mounting position: variable
- Fix-Thermostat
3114-0150-15-07

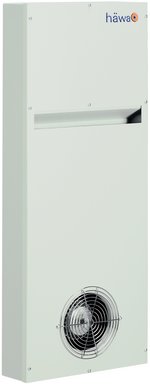

Air-To-Air Heat Exchangers
Typ
Kleinst-WT
Cooling capacity
6 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
partial mounting
3114-0220-16-07

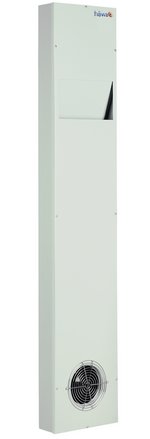

Air-To-Air Heat Exchangers
Typ
Mini-Mini 220
Cooling capacity
8,8 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
3114-0350-25-07

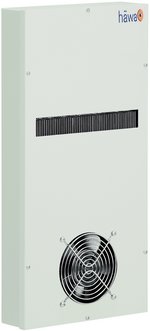

Air-To-Air Heat Exchangers
Typ
Kompakt superflach 350
Cooling capacity
14 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
3114-0500-25-07

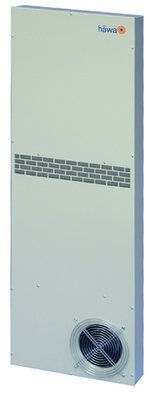

Air-To-Air Heat Exchangers
