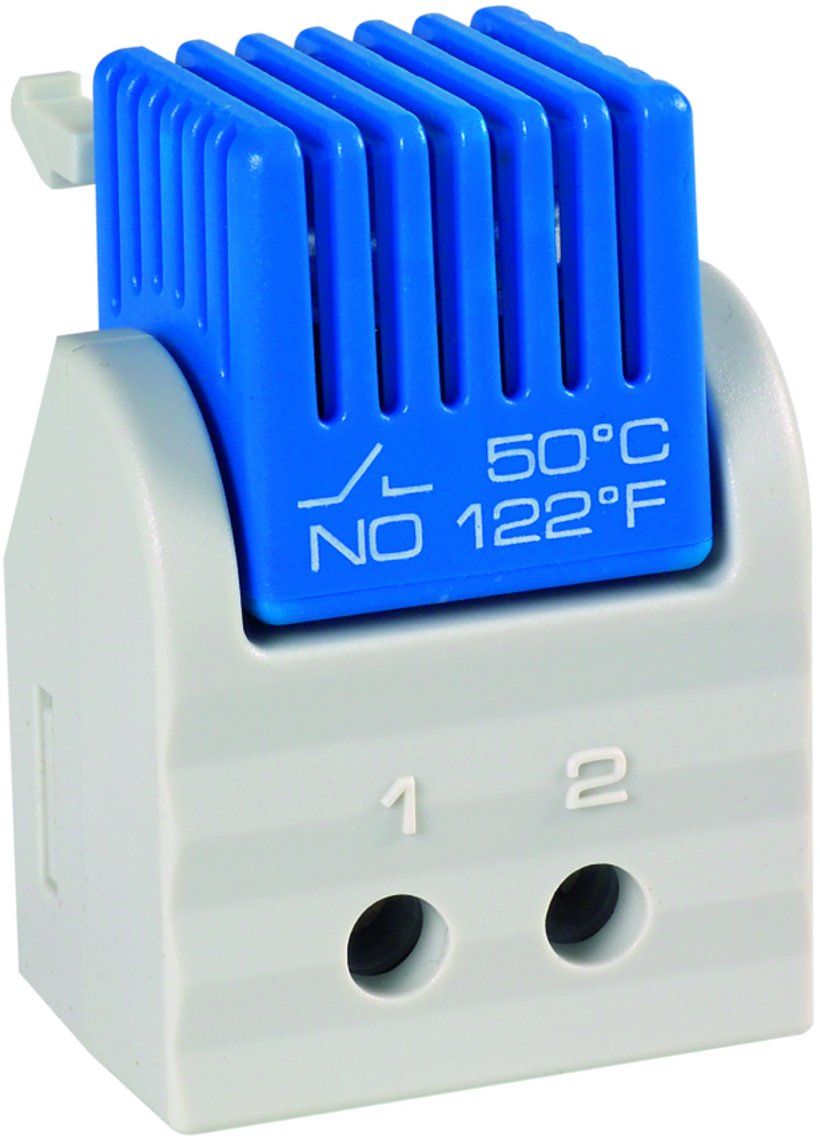

Fix-Thermostat FTS

3150-4050-00-00

Fix-Thermostat FTS

  • Small size
  • Default temperature setting
  • Easy to install
  • Clip attachment

Product description

Normally open contact / NO for controlling filter fans, heat exchangers, air conditioners or for switching signal devices when temperature limit has been exceeded.

The contact closes when temperature is rising.

High switching accuracy.

Technical data

  • Article number: 3150-4050-00-00
  • Protection class: IP20
  • TEMPERATURBEREICH_DIC: Switch-off temperature: +40 °C, Starting temperature: +50 °C
  • Operating temperature: from : -40 °C  to : +80 °C
  • Storage temperature: from : -45 °C  to : +80 °C
  • Contact type: Snap-action contact
  • Max. Switching capacity: Change-over
  • Max. Inrush current: AC 10 A for 10 Seconds
  • Lifetime: >100.000 cycles
  • Sensor element: Thermoplastic
  • Regulation: Closed con. (cooling)
  • Electrical connection: 2-pole max. 2.5 mm², clamping screw with strain relief, max. torque 0.8Nm
  • Weight: 30 g
  • Dimensions: Width : 93 mm  Height : 47 mm  Depth : 33 mm
  • Surface: Plastic according to UL94 V-0, light grey
  • type: FTS50
  • Mounting position: variable
  • Fix-Thermostat
Fix-Thermostat FTS
Fix-Thermostat FTS
Normally open contact / NO for controlling filter fans, heat exchangers, air conditioners or for switching signal devices when temperature limit has been exceeded.
The contact closes when temperature is rising.
High switching accuracy.

Remember
Snap-action contact
Switch-off temperature: +25 °C, Starting temperature: +35 °C
Snap-action contact
Switch-off temperature: +40 °C, Starting temperature: +50 °C
Snap-action contact
Switch-off temperature: +50 °C, Starting temperature: +60 °C
