3150-4060-00-00

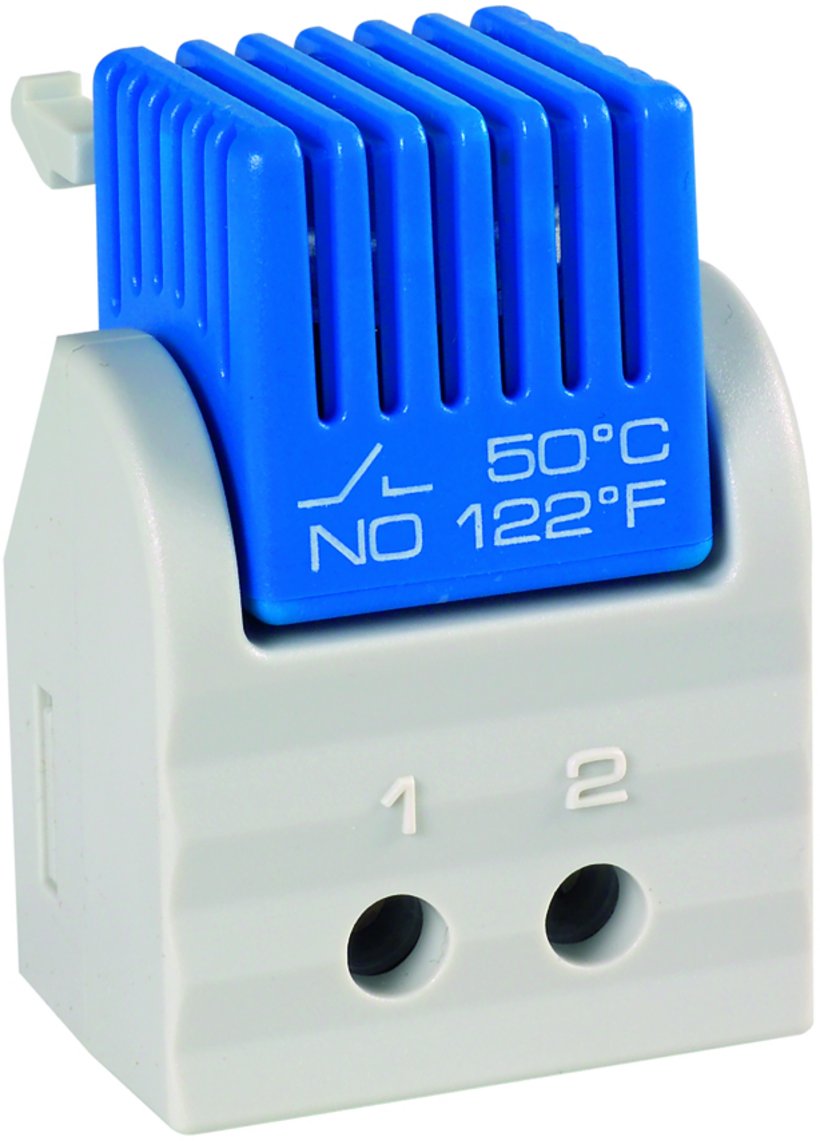

Fix-Thermostat FTS
- Small size
- Default temperature setting
- Easy to install
- Clip attachment
Product description
Normally open contact / NO for controlling filter fans, heat exchangers, air conditioners or for switching signal devices when temperature limit has been exceeded.
The contact closes when temperature is rising.
High switching accuracy.
Technical Data
-
Order No.: 3150-4060-00-00
-
Protection type: IP20
-
Temperature range: Switch-off temperature: +50 °C, Starting temperature: +60 °C
-
Operating temperature: from : -40 °C to : +80 °C
-
LAGERTEMPERATUR: LAGERTEMPERATUR_VON : -45 °C LAGERTEMPERATUR_BIS : +80 °C
-
Contact type: Snap-action contact
-
Max. switching capacity: Change-over
-
Max. starting current: AC 10 A for 10 Seconds
-
Service lifetime: >100.000 cycles
-
Sensor element: Thermoplastic
-
Control system: Closed con. (cooling)
-
Electrical connection: 2-pole max. 2.5 mm², clamping screw with strain relief, max. torque 0.8Nm
-
Weight: 30 g
-
Dimension: Width : 93 mm Height : 47 mm Depth : 33 mm
-
Surface: Plastic according to UL94 V-0, light grey
-
Type: FTS60
-
Fitting position: variable
- Fix-Thermostat
Assembly instructions:
CAD data and other file formats:
