2611-0400-20-00

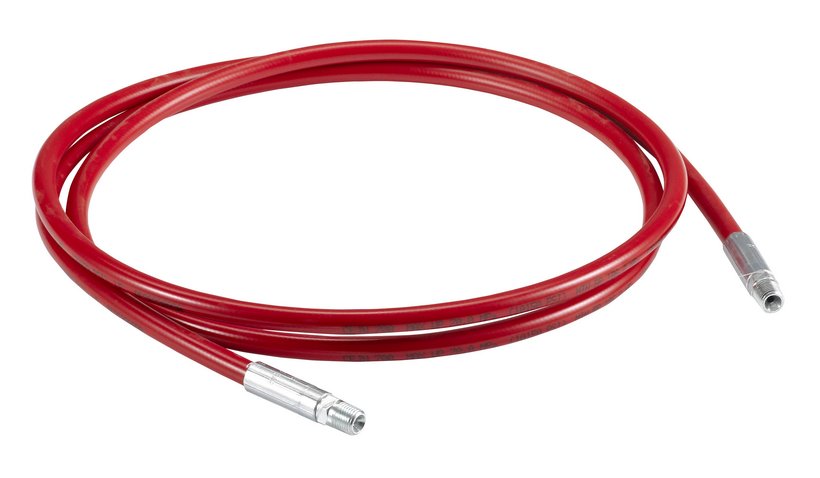

Hydraulic Hoses 1/4" NPT
- Max operating pressure: 700 bar
Product description
The steel reinforced polymer hose has an excellent flexibility for its entire life-span
Through its steel reinforced construction and its abrasion-resistant cover, it can be used for the toughest applications
With its small outside diameter and tight minimum bending radius it is ideal for installations in narrow spaces
Technical data
-
Article number: 2611-0400-20-00
-
Product family: For workshop equipment
-
Connection thread: 2x 1/4“ NPT AG
-
Max. operating pressure: 700 bar
-
Temperature range: from : -40 °C to : +100 °C
-
Color: Red
-
Hose length: 2000 mm
-
Outer diameter: 12.5 mm
-
Bending radius: 70 mm
Notice
- To seal the threaded connection, use the thread sealant type 2600-2005-00-03.
- For suitable couplings or screwed cable glands, see “Accessories”.
- 1 hydraulic hose
2611-7102-04-00
Plug-In Coupling
Product range
For workshop equipment
Max. operating pressure
max.
1000 bar
Flow capacity
6 l/min
Connection thread
1/4" NPT IG
2611-7102-05-00
Plug-In Nipple
Product range
For workshop equipment
Max. operating pressure
max.
1000 bar
Flow capacity
6 l/min
Connection thread
1/4" NPT IG
2621-0444-01-00
Screw Coupling 1/4" NPT
Product range
For workshop equipment
Max. operating pressure
max.
500 bar
Connection thread
Coupling 1/4“ NPT Male Thread, Nippel 1/4“ NPT Female Thread
2661-0538-14-00
Reduction Thread 1/4" NPT Female Thread x 3/8" NPT Female Thread
Product range
For workshop equipment
Female thread
Screw coupling 3/8"
2684-0538-14-00
Reduction Thread 3/8" NPT Male Thread x 1/4" NPT Female Thread
Product range
For workshop equipment
Male thread
Angle 1/4" NPT
Female thread
Screw coupling 3/8"
2600-2005-00-03
Liquid Thread Sealant
Product range
For Mobile Devices and Workshop Equipment
Temperature range from
-
55 °C
Temperature range tor
+
180 °C
Package size
50 ml
2611-0003-03-00
Switch Valve
Product range
For workshop equipment
Operating pressure
max.
500 bar
Connection thread
3x 1/4“ NPT IG
