2611-0003-03-00

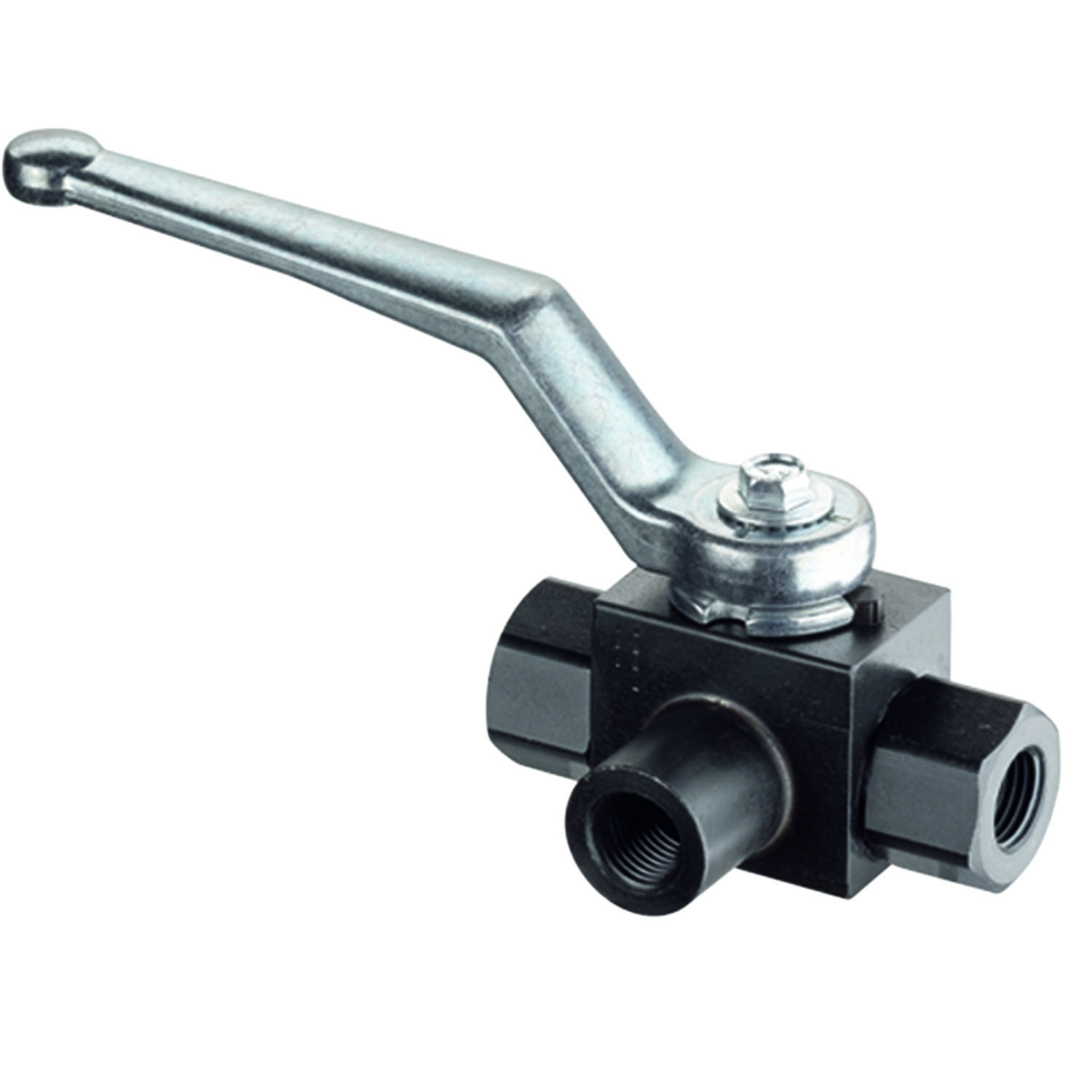

Switch Valve
- Maximum productivity with minimum effort
- Channel switching recognizable
Product description
To connect two or more devices on a pump without re-plugging
Direct connection with hydraulic hoses or via couplings (see accessories)
Technical data
-
Article number: 2611-0003-03-00
-
Product family: For workshop equipment
-
Connection thread: 3x 1/4“ NPT IG
-
Max. operating pressure: 500 bar
Notice
- The switch valve must be mounted by the customer.
- For sealing the threaded connection, use the thread sealant type 2600-2005-00-03.
- 1 switch valve
2611-7102-04-00
Plug-In Coupling
Product range
For workshop equipment
Max. operating pressure
max.
1000 bar
Flow capacity
6 l/min
Connection thread
1/4" NPT IG
2611-7102-05-00
Plug-In Nipple
Product range
For workshop equipment
Max. operating pressure
max.
1000 bar
Flow capacity
6 l/min
Connection thread
1/4" NPT IG
2621-0444-01-00
Screw Coupling 1/4" NPT
Product range
For workshop equipment
Max. operating pressure
max.
500 bar
Connection thread
Coupling 1/4“ NPT Male Thread, Nippel 1/4“ NPT Female Thread
2611-0102-04-00
Double Nipple 1/4" NPT Male Thread
Product range
For workshop equipment
Female thread
2x 1/4“ NPT
2600-2005-00-03
Liquid Thread Sealant
Product range
For Mobile Devices and Workshop Equipment
Temperature range from
-
55 °C
Temperature range tor
+
180 °C
Package size
50 ml
2611-0400-00-00
Electric Hydraulic Pump
Operating pressure
max.
450 bar
Electrical connection
400 V / 50 Hz
Capacity
1.17 l/min
Usable oil capacity
1.5 l
2612-7500-00-00
Air Hydraulic Pump
Operating pressure
max.
500 bar
Air connection
factory-set to min. 6 bar
Flow rate
0.8 l/min
Usable oil capacity
2.1 l
2611-0400-10-00
Hydraulic Hoses 1/4" NPT
Product range
For workshop equipment
Operating pressure
max.
700 bar
Hose length
1000 mm
Connection thread
2x 1/4“ NPT AG
2611-0400-20-00
Hydraulic Hoses 1/4" NPT
Product range
For workshop equipment
Operating pressure
max.
700 bar
Hose length
2000 mm
Connection thread
2x 1/4“ NPT AG
2611-0400-30-00
Hydraulic Hoses 1/4" NPT
Product range
For workshop equipment
Operating pressure
max.
700 bar
Hose length
3000 mm
Connection thread
2x 1/4“ NPT AG
2621-0537-01-01
Hydraulic Hoses 1/4" NPT
Product range
For workshop equipment
Operating pressure
max.
700 bar
Hose length
700 mm
Connection thread
2x 1/4“ NPT AG
