2661-0425-40-00

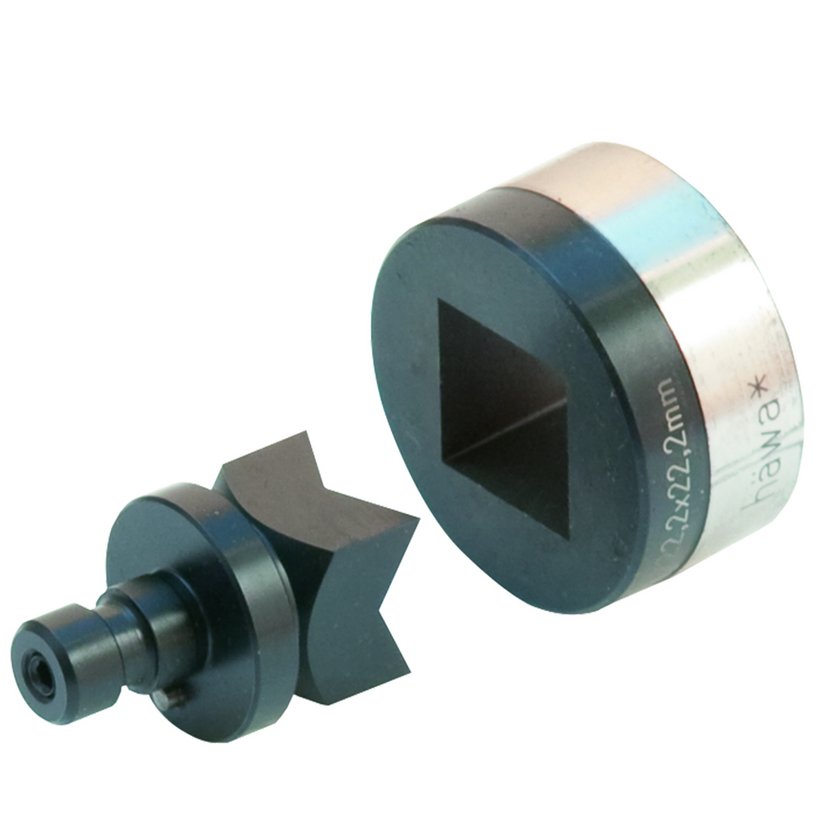

Square Punch for Quick-Press 300
- Long lifetime
- Maximum productivity with minimum effort
Product description
For the use in bow punches Quick-Press 300
Low tool wear through optimum cutting geometry
With spring-loaded center pin for easy workpiece positioning
Quick, precise and burr-free punching
Technical data
-
Article number: 2661-0425-40-00
-
Max. Sheet thickness: Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Square punches
-
Clamping spigot: ø 13 mm/0,51"
-
Size: 25,4 x 25,4 mm; 1 x 1"
-
Die mounting diameter: 50 mm
Notice
- For laser operation, remove the center pin.
- Repositioning is not possible.
- Before selecting this punch, check if you already have the required die holder (2680-0350-00-00).
- 1 square punch, consisting of punch and die
2680-0350-00-00
Die Holder ø 50 mm for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Type
die with 50 mm external diameter
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder Ø
13 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
