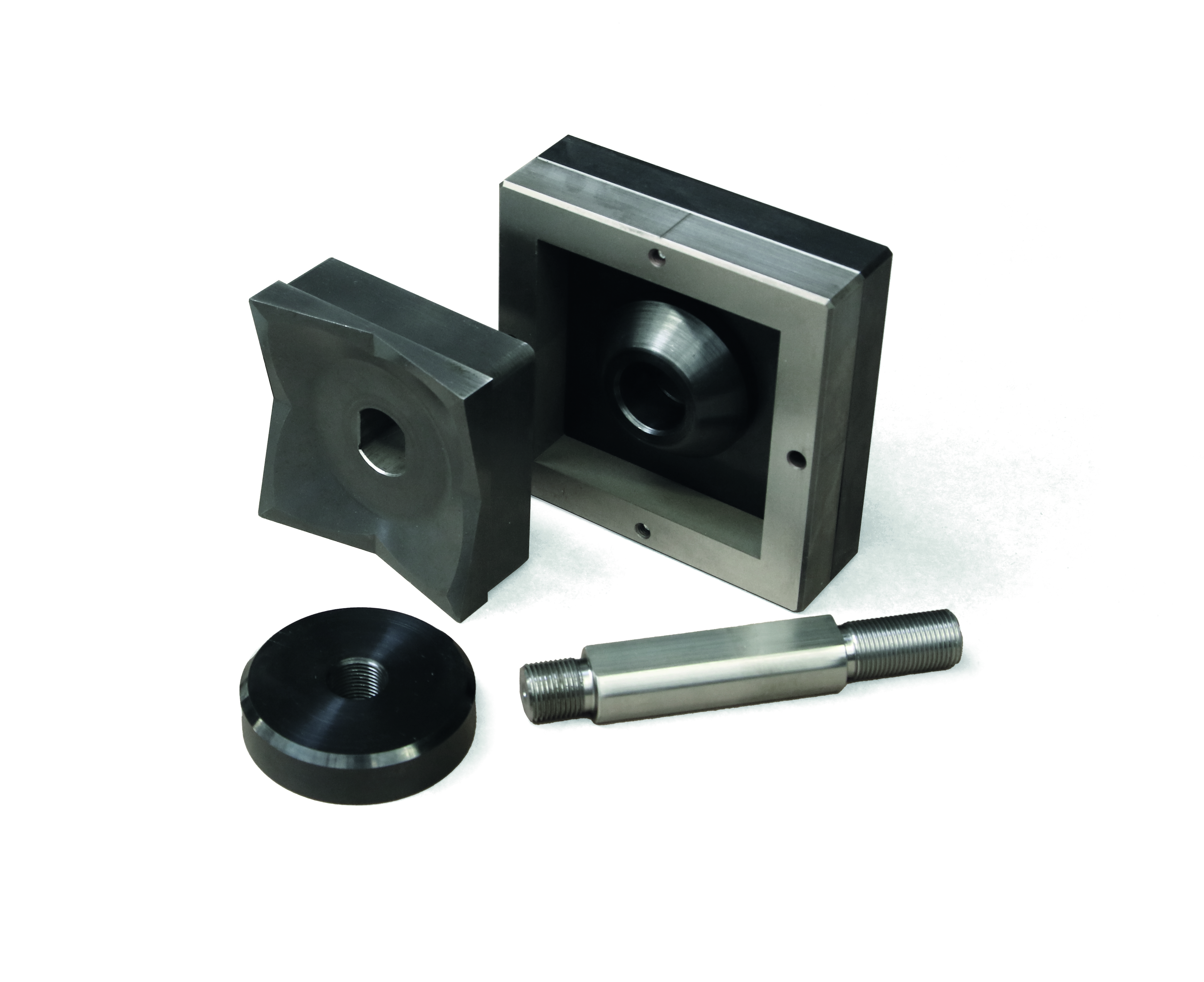

Square Punch 68 mm / 2.68“

2683-0968-00-02

Square Punch 68 mm / 2.68“

  • Long lifetime
  • Maximum productivity with minimum effort

Product description

For punching cut-outs in sheet metals with pumps.

Easy alignment owing to the markings at die.

Easy removal of the deformed waste piece.

Quick, precise and burr-free punching.

Technical data

  • Article number: 2683-0968-00-02
  • Max. Sheet thickness: Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
  • Product family: for mobile devices
  • PRODUKTGRUPPENNAMEEBENE6: Square punches
  • Actuating thread: Ø 19 mm / 3/4"
  • Size: 68 x 68 mm; 2.68 x 2.68"
  • Pre-drilling ø: 27 mm
  • 1 square punch, consisting of punch and die + draw stud with nut
Draw Studs for Shaped Punches
2683-0719-24-01
Draw Studs for Shaped Punches
Product range
for mobile devices
Draw stud
19/19 mm; 3/4"/3/4"
Screw length
143 mm
Molding
Ø 25 mm; 0.98" with 2 guide surfaces
Hydraulic Cylinder Power 19
2611-7600-01-00
Hydraulic Cylinder Power 19
Product range
for mobile devices
Suitable for
Round punches up to ø 135 mm; 5.31“ / square punches 103 mm; 4.06“ / rectangular punches up to a diagonal size of 145 mm; 5.71“
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
Hydraulic Cylinder 19 (3/4”)
2684-7600-01-00
Hydraulic Cylinder 19 (3/4”)
Product range
for mobile devices
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
Powerman Vario
2626-7200-01-00
Powerman Vario
Type
without round punches in sheet metal case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
Powerman Vario
2626-7206-01-00
Powerman Vario
Type
PG1 with round punches from PG9 to PG21 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
Powerman Vario
2626-7206-02-00
Powerman Vario
Type
PG2 with round punches from PG9 to PG29 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
Powerman Vario
2626-7207-01-01
Powerman Vario
Type
with metric round punches from M12 to M50 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
Powerlec Vario Plus
2629-7400-00-00
Powerlec Vario Plus
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
Powerlec Vario Plus
2629-7400-01-00
Powerlec Vario Plus
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
Powerlec Vario Plus
2629-7401-00-00
Powerlec Vario Plus
Type
Fan kit 92
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
Powerlec Vario Plus
2629-7402-00-00
Powerlec Vario Plus
Type
Fan kit 125
Suitable for
round punches up to ø 120 mm; 4.72"
Square punches 125 mm; 4.92"
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm; 14 ga
Stainless steel up to 1,5 mm; 16 ga
Pression max
63 kN
Operating voltage
18V
Powerman
2684-7100-01-01
Powerman
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
65 kN
Powerman Step
2685-7200-01-01
Powerman Step
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
65 kN
Nuts for Shaped Punches
2683-0719-19-01
Nuts for Shaped Punches
Product range
for mobile devices
Thread
19 mm; 3/4"
Wrench size nut
34 mm
Draw Studs for Shaped Punches
2683-0719-24-01
Draw Studs for Shaped Punches
Product range
for mobile devices
Draw stud
19/19 mm; 3/4"/3/4"
Screw length
143 mm
Molding
Ø 25 mm; 0.98" with 2 guide surfaces
Square Punch 68 mm / 2.68“
Square Punch 68 mm / 2.68“
For punching cut-outs in sheet metals with pumps.
Easy alignment owing to the markings at die.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.

Art No.
Product range
Size
Max. sheet metal thickness
Draw stud
Remember
for mobile devices
68 x 68 mm; 2.68 x 2.68"
Steel 3 mm; 11 ga + Stainless steel 2,5 mm; 12 ga
Ø 19 mm / 3/4"
