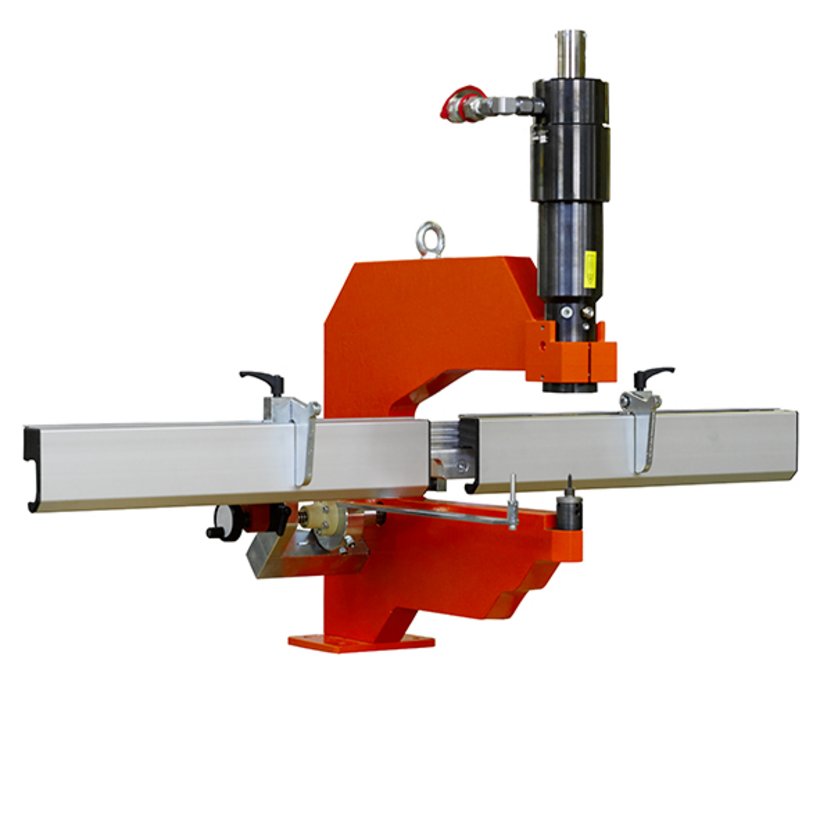

Hydraulic Quick-Press 300

2662-7205-00-01

Hydraulic Quick-Press 300

  • Punching to the outermost edge is possible
  • Punching marks or drill holes are not required
  • Useful processing depth 300 mm / 11.81”

Product description

Hydraulically operated bow punch for quick and precise drilling without pilot holes

Can be connected to the häwa electric or air hydraulic unit

For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates and flat/flanged sheet metals up to 40 mm / 1.57”

Punch center point indicator via laser diode can be retrofitted

Length and depth stop with two movable tilt stops

Punching of hole rows through precisely adjustable positioning stop

Technical data

  • Article number: 2662-7205-00-01
  • EINSATZBEREICH: Punching of cut-outs
  • Material: sheet steel, stainless steel, aluminium
  • Can be used for: round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
  • MATERIALSTAERKE_DICT: Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
  • ax. punching forcet: 80 kN
  • Cylinder stroke: 42 mm
  • Processing depth: 300 mm
  • Length stop: Adjustable from 38 to 500 mm; 1.5" to 19.69" on both sides of the cylinder
  • Depth stop: Adjustable from 5 to 300 mm; 0.2" to 11.81"
  • Repositioning stop: Adjustable backlash-free through measuring scale from 30 to 100 mm; 1.18" to 3.94"
  • Stamp holder diameter: 13 mm
  • Max. operating pressure: 450 bar
  • Weight: 69 kg

Notice

  • Further Quick-Press 300 versions are available.
  • Bow Punches with hydraulic cylinder, length, depth and positioning stop
  • 2 tilt stops
  • Adapter for holding punches
Square Punch for Quick-Press 300
2661-0422-20-00
Square Punch for Quick-Press 300
Product range
For workshop equipment
Size ø
22,2 x 22,2 mm; 0,87 x 0,87"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Square Punch for Quick-Press 300
2661-0425-40-00
Square Punch for Quick-Press 300
Product range
For workshop equipment
Size ø
25,4 x 25,4 mm; 1 x 1"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punch with Two Keyways for Quick-Press 300
2661-0922-52-01
Round Punch with Two Keyways for Quick-Press 300
Diameter dimensions
22.5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0206-60-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
6.6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
40 mm
further information
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0209-00-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
9 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
40 mm
further information
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0212-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
12.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
40 mm
further information
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0212-70-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
12.7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
40 mm
further information
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0215-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
15.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
40 mm
further information
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0216-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
16.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
40 mm
further information
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0218-60-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
18.6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
40 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0205-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0206-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
6.6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0209-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
9 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0210-50-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
10.5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0212-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
12.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0212-70-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
12.7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0215-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
15.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0216-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
16.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0218-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
18.6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with 40 mm External Die Diameter
2680-0220-20-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Type
For Quick-Press 300
Diameter dimensions
20.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
40 mm
further information
Round Punches with 40 mm External Die Diameter
2680-0220-40-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Type
For Quick-Press 300
Diameter dimensions
20.4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
40 mm
further information
Round Punches with 40 mm External Die Diameter
2680-0222-50-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Type
For Quick-Press 300
Diameter dimensions
22.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
40 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0220-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
20.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0220-40-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
20.4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0221-30-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
21.3 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0222-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
22.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0224-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
24.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0225-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
25.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0228-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
28.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0230-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
30.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0232-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
32.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
further information
Round Punches with 50 mm External Die Diameter
2661-0237-00-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
37 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punch with Stepped Die
2661-0240-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Size ø
40.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm, step die
further information
Round Punch with Stepped Die
2661-0250-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Size ø
50.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm, step die
further information
Round Punch with Stepped Die
2661-0263-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Size ø
63.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm, step die
further information
Die Holder ø 40 mm for Quick-Press 300
2680-0340-00-00
Die Holder ø 40 mm for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Type
die with 40 mm external diameter
further information
Die Holder ø 50 mm for Quick-Press 300
2680-0350-00-00
Die Holder ø 50 mm for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Type
die with 50 mm external diameter
further information
Adapter for Quick-Press 300
2661-0314-00-00
Adapter for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Punch holder thread
M14x1,5
further information
Length and Depth Stop for Quick-Press 300
2662-0700-02-00
Length and Depth Stop for Quick-Press 300
Product range
For workshop equipment
Depth stop
Adjustable from 5 to 300 mm; 0.2" to 11.81"
further information
Positioning Stop for Quick-Press 300
2662-0750-02-00
Positioning Stop for Quick-Press 300
Product range
For workshop equipment
Setting range
Adjustable backlash-free through scale 30 – 100 mm; 1.18“ – 3.94“
further information
Tilt Stop for Quick-Press 300
2662-0701-01-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
left side of the cylinder
further information
Tilt Stop for Quick-Press 300
2662-0701-02-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
right side of the cylinder
further information
Pedestal for Quick-Press 300
2662-0800-01-00
Pedestal for Quick-Press 300
Product range
For workshop equipment
Working heigth Quick-Press
850 mm
further information
Hydraulic Cylinder for Quick-Press 300
2662-7100-81-05
Hydraulic Cylinder for Quick-Press 300
Product range
For workshop equipment
Punch holder
ø 13 mm/0,51"
further information
Finger Guard + Wiper
2642-0202-01-00
Finger Guard + Wiper
Product range
For workshop equipment
further information
Swivel Door Support for Bow Punch
2600-9500-00-02
Swivel Door Support for Bow Punch
Product range
For workshop equipment
Working height
Continuously adjustable 1.000 – 1.200 mm / 39.37" - 47.24"
Workpiece dimensions
max. 800 x 2.000 mm/ 31.5" x 78.74"
Workpiece weight
max. 45 kg; 99.2 lbs
further information
Laser Retrofit Kit
2662-7105-80-04
Laser Retrofit Kit
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
Electrical connection
230 V / 50 Hz
Laser class
2
further information
Laser adjustment aid
2600-2000-30-00
Laser adjustment aid
Product range
For workshop equipment
further information
Air Hydraulic Pump
2612-7500-00-00
Air Hydraulic Pump
Operating pressure
max. 500 bar
Air connection
factory-set to min. 6 bar
Flow rate
0.8 l/min
Usable oil capacity
2.1 l
further information
Electric Hydraulic Pump
2611-0400-00-00
Electric Hydraulic Pump
Operating pressure
max. 450 bar
Electrical connection
400 V / 50 Hz
Capacity
1.17 l/min
Usable oil capacity
1.5 l
further information
Adapter for Quick-Press 300
2661-0314-00-00
Adapter for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Punch holder thread
M14x1,5
further information
Length and Depth Stop for Quick-Press 300
2662-0700-02-00
Length and Depth Stop for Quick-Press 300
Product range
For workshop equipment
Depth stop
Adjustable from 5 to 300 mm; 0.2" to 11.81"
further information
Tilt Stop for Quick-Press 300
2662-0701-01-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
left side of the cylinder
further information
Tilt Stop for Quick-Press 300
2662-0701-02-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
right side of the cylinder
further information
Positioning Stop for Quick-Press 300
2662-0750-02-00
Positioning Stop for Quick-Press 300
Product range
For workshop equipment
Setting range
Adjustable backlash-free through scale 30 – 100 mm; 1.18“ – 3.94“
further information
Hydraulic Cylinder for Quick-Press 300
2662-7100-81-05
Hydraulic Cylinder for Quick-Press 300
Product range
For workshop equipment
Punch holder
ø 13 mm/0,51"
further information
Save as PDF Save as PDF Direct request
Hydraulic Quick-Press 300
Hydraulic Quick-Press 300
Hydraulically operated bow punch for quick and precise drilling without pilot holes
Can be connected to the häwa electric or air hydraulic unit
For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates and flat/flanged sheet metals up to 40 mm / 1.57”
Punch center point indicator via laser diode can be retrofitted
Length and depth stop with two movable tilt stops
Punching of hole rows through precisely adjustable positioning stop
Art No.
Suitable for
Max. sheet metal thickness
Processing depth
Punch holder (diameter)
Remember
2662-7205-00-01
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
300 mm
13 mm
Contact for products
Find your personal point of contact
We are happy to help you.

The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.

Choose your advisor now

Share this page
