2662-7206-00-01

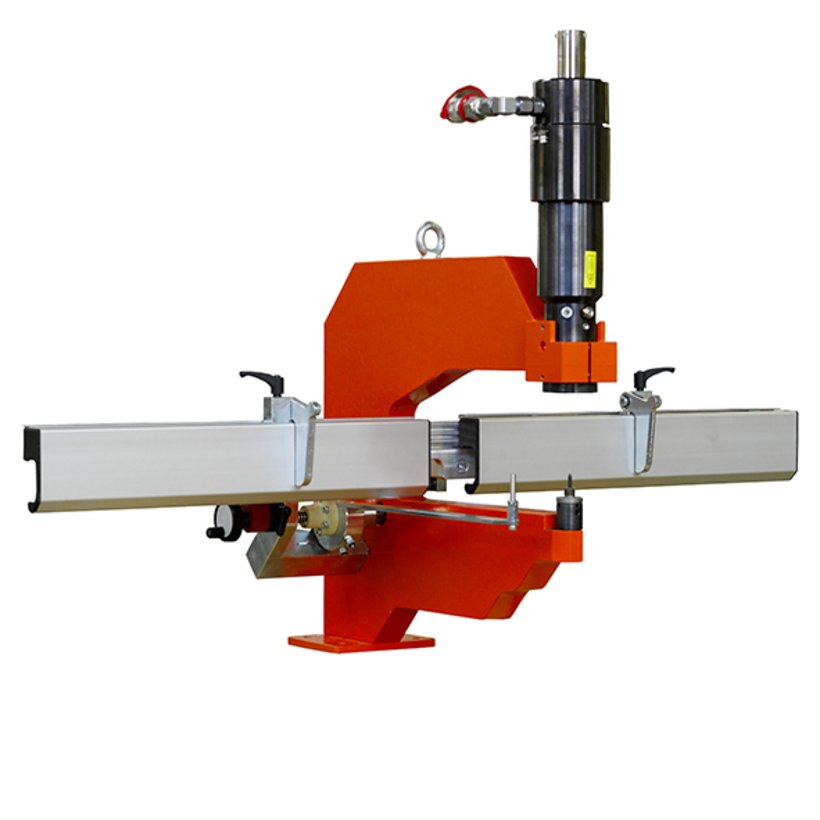

Hydraulic Quick-Press 300 with center point indicator
- Punching to the outermost edge is possible
- Punching marks or drill holes are not required
- Useful processing depth 300 mm, 11.81”
Product description
Hydraulically operated bow punch for quick and precise drilling without pilot holes
Can be connected to the häwa electric or air hydraulic unit
For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates and flat/flanged sheet metals up to 40 mm / 1.57“
With center point indicator via laser diode
Length and depth stop with two movable tilt stops
Punching of hole rows through precisely adjustable positioning stop
Technical Data
-
Order No.: 2662-7206-00-01
-
Application: Punching of cut-outs
-
PRODUKTFAMILIE: For workshop equipment
-
Material: sheet steel, stainless steel, aluminium
-
Suitable for: round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
-
Material thickness: Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
-
Punching force: 80 kN
-
Piston stroke: 42 mm
-
Processing depth: 300 mm
-
Length stop: Adjustable from 38 to 500 mm; 1.5" to 19.69" on both sides of the cylinder
-
Depth stop: Adjustable from 5 to 300 mm; 0.2" to 11.81"
-
Positioning stop: Adjustable backlash-free through measuring scale from 30 to 100 mm; 1.18" to 3.94"
-
Punch holder: ø 13 mm/0,51"
-
Operating pressure: 450 bar
-
Weight: 69 kg
Notice
- Further Quick-Press 300 versions are available.
- The laser diode module requires a power supply of 230 V / 50 Hz (shockproof plug).
- Bow Punches with hydraulic cylinder, length, depth and positioning stop.
- Laser diode module and power supply unit for center point indicator
- 2 tilt stops
- Adapter for holding punches

2680-0206-60-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 6,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2680-0209-00-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 9 mm/0,35"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2680-0212-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 12,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2680-0212-70-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 12,7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2680-0215-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 15,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2680-0216-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 16,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2680-0218-60-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 18,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2661-0205-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2661-0206-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 6,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2661-0209-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 9 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2661-0210-50-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 10,5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2661-0212-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 12,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2661-0212-70-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 12,7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2661-0215-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 15,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2661-0216-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 16,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2661-0218-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 18,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"

2680-0220-20-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Version
For Quick-Press 300
Size
ø 20,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2680-0220-40-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Version
For Quick-Press 300
Size
ø 20,4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2680-0222-50-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Version
For Quick-Press 300
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0220-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 20,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0220-40-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 20,4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0221-30-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 21,3 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0222-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0224-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 24,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0225-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 25,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0228-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 28,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0230-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 30,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0232-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 32,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0237-00-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 37 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0240-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 40,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0250-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 50,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0263-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 63,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note

2661-0422-20-00
Square Punch for Quick-Press 300
Product range
For workshop equipment
Size ø
22,2 x 22,2 mm; 0,87 x 0,87"
Clamping pin
ø 13 mm/0,51"
Die - external diameter
1,97 inch

2661-0425-40-00
Square Punch for Quick-Press 300
Product range
For workshop equipment
Size ø
25,4 x 25,4 mm; 1 x 1"
Clamping pin
ø 13 mm/0,51"
Die - external diameter
1,97 inch

2661-0922-52-01
Round Punch with Two Keyways for Quick-Press 300
Product range
For workshop equipment
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Die - external diameter
1,97 inch

2680-0340-00-00
Die Holder for Quick-Press 300
Product range
For workshop equipment
Type
for dies with 40 mm external diameter
Clamping pin
ø 13 mm/0,51"

2680-0350-00-00
Die Holder for Quick-Press 300
Product range
For workshop equipment
Type
for dies with 50 mm external diameter
Clamping pin
ø 13 mm/0,51"

2661-0314-00-00
Adapter for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Punch holder thread
M14x1,5

2662-0700-02-00
Length and Depth Stop for Quick-Press 300
Product range
For workshop equipment
Depth stop
Adjustable from 5 to 300 mm; 0.2" to 11.81"
Setting range
Adjustable from 38 to 500 mm; 1.5" to 19.69" on both sides of the cylinder

2662-0750-02-00
Positioning Stop for Quick-Press 300
Product range
For workshop equipment
Setting range
Adjustable backlash-free through scale 30 – 100 mm; 1.18“ – 3.94“

2662-0701-01-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
left side of the cylinder

2662-0701-02-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
right side of the cylinder

2662-0800-01-00
Pedestal for Quick-Press 300
Product range
For workshop equipment
Working heigth Quick-Press
850 mm

2642-0202-01-00
Finger Guard + Wiper
Product range
For workshop equipment
Version
for Quick-Press 300 and for Maxi-Press 500

2600-9500-00-02
Swivel Door Support for Bow Punch
Product range
For workshop equipment
Working height
Continuously adjustable 1.000 – 1.200 mm / 39.37" - 47.24"
Workpiece dimensions
max. 800 x 2.000 mm/ 31.5" x 78.74"
Workpiece weight
max. 45 kg; 99.2 lbs

2662-7105-80-04
Laser Retrofit Kit
Product range
For workshop equipment
Version
Spot Laser Diode Module
Operating voltage
3 V DC
Electrical connection
230 V / 50 Hz
Laser class
2

2600-2000-20-02
Plastic Set Screw M5x6
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation

2600-2000-30-00
Laser adjustment aid
Product range
For workshop equipment
Version
for Quick-Press 300/400 and Maxi-Press 500

2612-7500-00-00
Air Hydraulic Pump
Application
For operating häwa tools
Operating pressure
max.
500 bar
Air connection
factory-set to min. 6 bar

2611-0400-00-00
Electric Hydraulic Pump
Application
For operating häwa tools
Operating pressure
max.
450 bar
Electrical connection
400 V / 50 Hz

2600-2000-00-04
Spot Laser Diode Module
Product range
For workshop equipment
Version
Spot Laser Diode Module
Required input voltage
3 V DC
Laser class
2

2600-2000-20-02
Plastic Set Screw M5x6
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation

2600-2000-30-00
Laser adjustment aid
Product range
For workshop equipment
Version
for Quick-Press 300/400 and Maxi-Press 500

2600-2000-60-04
Power Supply Unit 3V DC
Product range
For workshop equipment
Version
Spot laser diode module
Output voltage
3 V DC
Electrical connection
230 V / 50 Hz

2661-0314-00-00
Adapter for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Punch holder thread
M14x1,5

2662-0700-02-00
Length and Depth Stop for Quick-Press 300
Product range
For workshop equipment
Depth stop
Adjustable from 5 to 300 mm; 0.2" to 11.81"
Setting range
Adjustable from 38 to 500 mm; 1.5" to 19.69" on both sides of the cylinder

2662-0701-01-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
left side of the cylinder

2662-0701-02-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
right side of the cylinder

2662-0750-02-00
Positioning Stop for Quick-Press 300
Product range
For workshop equipment
Setting range
Adjustable backlash-free through scale 30 – 100 mm; 1.18“ – 3.94“

2662-7100-82-06
Hydraulic Cylinder for Quick-Press 300
Product range
For workshop equipment
Punch holder
ø 13 mm/0,51"
Cylinder stroke
42 mm
Contact for products
Find your personal point of contact
We are happy to help you.
The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.
