Schneidwerkzeug für die Arbeit am Schaltschrank

Profile cutter

For cutting sheet steel profile rails 35 x 7.5 x 1 mm and 15 x 5 x 1 mm to DIN EN 60715.
Perfect for mobile use.

Order No.	Material thickness	notice
2693-7416-00-00

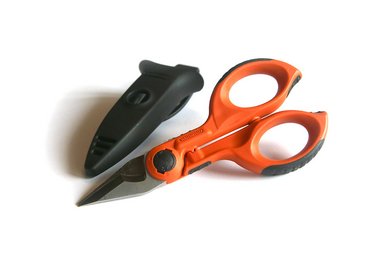

Cable scissors

For cutting and stripping fine-wired copper and aluminum cable conductors.
Adjustable screw joint
Ergonomic, impact resistant plastic handle without cadmium and heavy metals

Order No.	Cutting up to	Stripping up to	notice
2692-0000-10-00		50 mm²

Wiring Duct Cutter Type 2677

Long operating lever at the shear blades for waste-free cutting of wiring ducts and covers, minimum effort required to operate machine.
The shear blades ensure a noiseless, emission-free cutting without scraps.
Transparent finger guards on both sides provide a safe contact guard also during cutting process.
Cutter with spring length stop for a long-lasting lifetime of the shear blades.

Order No.	Material	Material thickness	Processing	notice
2677-0100-01-00	Plastic	Cable duct dimensions: up to 125x130x2 mm / 4.92x5.11x0.7”

Wiring Duct Cutter Type 2678

Long operating lever at the shear blades for waste-free cutting of PVC as well as halogen-free wiring ducts and covers.
The shear blades ensure a noiseless, emission-free cutting without scraps.
With finger guard and adjustable length stop.

Order No.	Material	Material thickness	Processing	notice
2678-0100-00-00	PVC as well as halogen-free plastic	Wiring duct dimensions: up to 125x2,5 mm; 4.92“x0.1“

Manually Operated Profile Shears/DIN Rail Cutter 2671

Long operating lever for waste-free cutting of sheet steel and aluminum profile rails, minimum effort required to operate machine
Easy shear blade exchange
Precise feeding of profile rails for cutting to length and punching
Punching with integrated fixed stop (9 mm / 0.34“ distance)
See accessories for adjustable stops

Order No.	Material	Material thickness	Bearbeitung	Punching	notice
2671-0100-01-00	Sheet steel, aluminum	DIN rail dimensions: Sheet steel up to 35x18x2 mm / 1.38x0.71x0.08”; aluminum up to 35x18x2 mm / 1.38x0.71x0.08”		Up to ø 7 mm / 0.28“ or oblong hole 6.3x9 mm / 0.25x0.35“

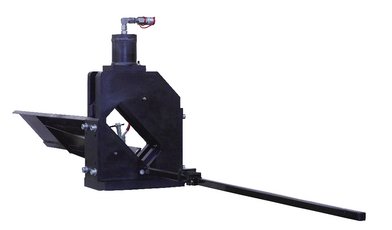

Hydraulic profile shears 2671

Profile shears with hydraulic cylinder for waste-free cutting of sheet steel and aluminum profile rails
Can be connected to the häwa electric or air hydraulic pump
Easy shear blade exchange
Precise feeding for profile rail cutting to length and punching
Punching with integrated fixed stop (9 mm / 0.34“ distance)
See accessories for adjustable stops

Order No.	Material	Material thickness	Bearbeitung	Punching	notice
2671-0200-01-00	Sheet steel, aluminum	Profile dimensions: sheet steel up to 35x15x2 mm / 1.38x0.59x0.08”, aluminum up to 35x15x2 mm /1.38x0.59x0.08”		Up to ø 7 mm / 0.28“ or oblong hole 6.3x9 mm / 0.25x0.35“

Profile shears 2675

Profile shears with hydraulic cylinder for waste-free cutting of sheet steel, aluminum, copper or plastic rails
Can be connected to the häwa electric or air hydraulic pump
Easy shear blade exchange
Feeder for cutting to length and punching
Punching with integrated fixed stop (9 mm / 0.34“ distance) or adjustable stop (see accessories)

Order No.	Material	Material thickness	Bearbeitung	Punching	notice
2675-7200-01-00	Sheet steel, aluminum			Up to ø 13 mm / 0.51“ or oblong hole 9x13 mm / 0.35x0.51“

Cable duct shears 2676

Cable duct shears with hydraulic cylinder for waste-free cutting to length of sheet steel and stainless steel cable ducts and covers
Can be connected to the häwa electric or air hydraulic pump
Easy shear blade exchange
Easy handling through long feeder support surface

Order No.	Material	Material thickness	Processing	notice
2676-0201-00-00	Sheet steel, stainless steel
