2676-0201-00-00

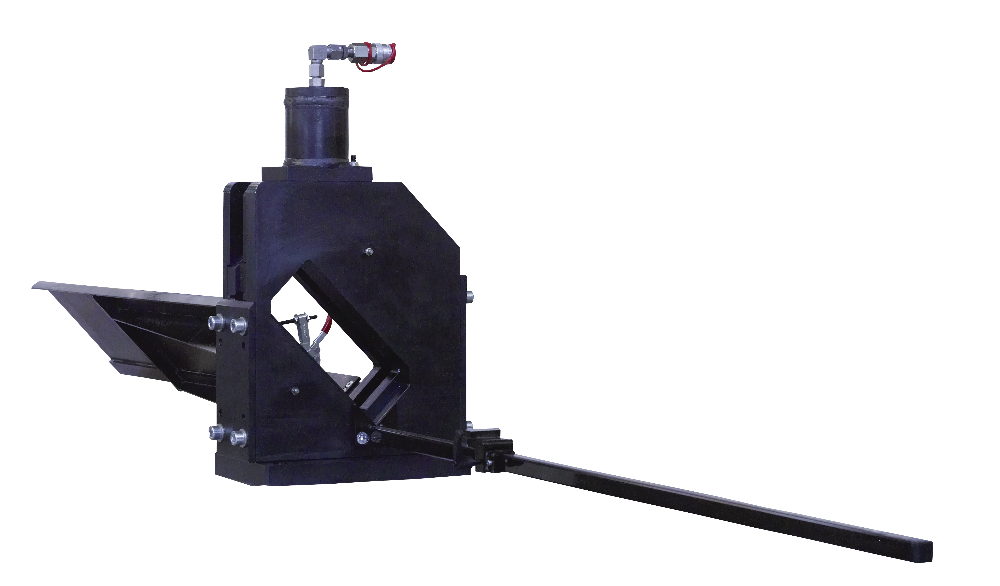

Cable duct shears 2676
- Low-noise and burr-free cutting to length
Product description
Cable duct shears with hydraulic cylinder for waste-free cutting to length of sheet steel and stainless steel cable ducts and covers
Can be connected to the häwa electric or air hydraulic pump
Easy shear blade exchange
Easy handling through long feeder support surface
Technical Data
-
Order No.: 2676-0201-00-00
-
Application: For cutting cable ducts
-
PRODUKTFAMILIE: For workshop equipment
-
Material: Sheet steel, stainless steel
-
Length stop: Continuously adjustable up to 1000 mm / 39.37”
-
Operating pressure: 450 bar
-
Weight: 89 kg
Notice
- Shear plates are manufactured according to design and template. By turning the shear plate set, both the channel and cover can be cut. Depending on the duct size, 2 channel sizes can fit on one shear plate set.
- Cable duct shears with hydraulic cylinder and 1 m / 39.37” length stop for cutting
- Feeder for cutting to length
2676-0700-01-00
Length Stop for Cutting for Cable Duct Cutter 2676
Product range
For workshop equipment
Setting range
Continuously adjustable up to 1000 mm / 39.37”
2676-0700-02-00
Length stop for cutting for cable duct cutter type 2676 with additional height, adjustable floor support
Product range
For workshop equipment
Setting range
Continuously adjustable up to 2000 mm / 78,74"
2612-7500-00-00
Air Hydraulic Pump
Application
For operating häwa tools
Operating pressure
max.
500 bar
Air connection
factory-set to min. 6 bar
2611-0400-00-00
Electric Hydraulic Pump
Application
For operating häwa tools
Operating pressure
max.
450 bar
Electrical connection
400 V / 50 Hz
2676-0700-01-00
Length Stop for Cutting for Cable Duct Cutter 2676
Product range
For workshop equipment
Setting range
Continuously adjustable up to 1000 mm / 39.37”
Assembly instructions:
CAD data and other file formats:
Contact for products
Find your personal point of contact
We are happy to help you.
The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.
