2675-7200-01-00

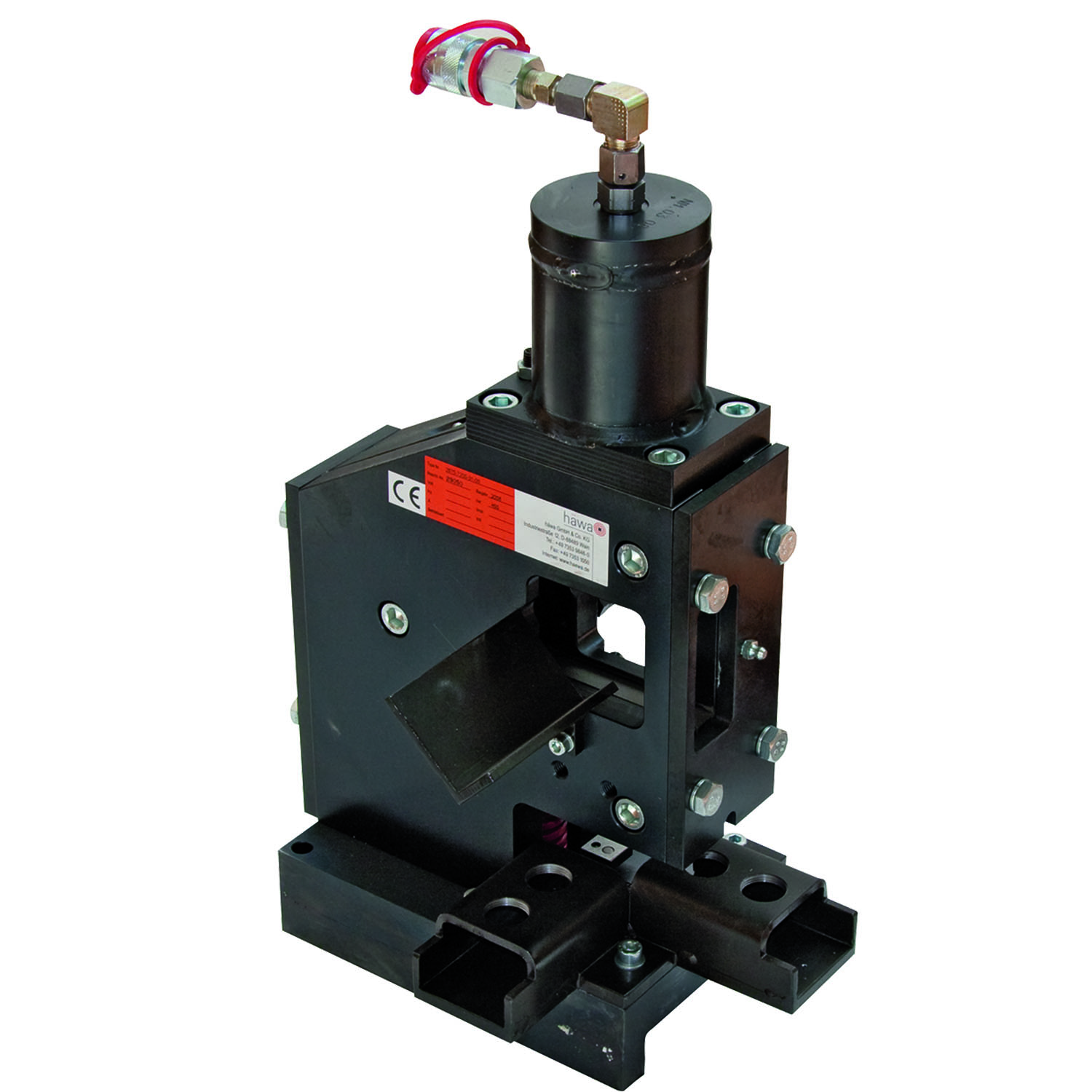

Profile shears 2675
- Low-noise and burr-free cutting to length

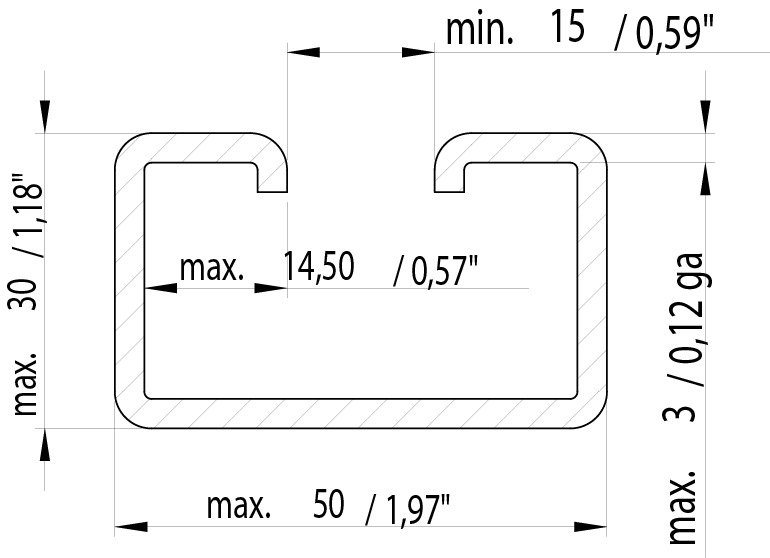

- Max. profile dimensions 50x30x3 mm /1.97x1.18x0.12”
- With punch function
Product description
Profile shears with hydraulic cylinder for waste-free cutting of sheet steel, aluminum, copper or plastic rails
Can be connected to the häwa electric or air hydraulic pump
Easy shear blade exchange
Feeder for cutting to length and punching
Punching with integrated fixed stop (9 mm / 0.34“ distance) or adjustable stop (see accessories)
Technical data
-
Article number: 2675-7200-01-00
-
EINSATZBEREICH: Cutting to length + punching of DIN rails
-
holes: Up to ø 13 mm / 0.51“ or oblong hole 9x13 mm / 0.35x0.51“
-
Max. Sheet thickness: Sheet steel 3 mm, 11 ga / Aluminum 4 mm; 6 ga
-
Material: Sheet steel, aluminum
-
Length stop: For cutting to length: Continuously adjustable up to 1000 mm / 39.37”
-
Max. operating pressure: 450 bar
-
Weight: 46 kg
- Profile shears/DIN rail cutter with hydraulic cylinder and 1 m / 39.37“ length stop for cutting to length
- Feeder for cutting and punching.
- With wiper function for punching
- Fixed stop and punch holder
2675-0700-10-00
Length Stop for Cutting for Profile Shears/DIN Rail Cutter
Product range
For workshop equipment
Version
For Profile Shears/DIN Rail Cutter 2675
Setting range from
55 mm
Setting range to
1000 mm
2675-0700-02-00
Length Stop for Cutting for Profile Shears/DIN Rail Cutter
Product range
For workshop equipment
Version
For Profile Shears/DIN Rail Cutter 2675
Type
with additional height adjustable floor support
Setting range from
55 mm
Setting range to
2000 mm
2675-0700-01-00
Length Stop for Punching for Profile Shears/DIN Rail Cutter 2675
Product range
For workshop equipment
Setting range from
25 mm
Setting range to
500 mm
2675-7403-01-00
Shear Plates for Profile Shears/DIN Rail Cutter 2675
Product range
For workshop equipment
For cutting
Mounting rail G32 32 x 15 x 1.5 and mounting rail 35 x 7.5 x 1
2675-7404-05-00
Shear Plates for Profile Shears/DIN Rail Cutter 2675
Product range
For workshop equipment
For cutting
Mounting rail 15 x 5 x 1 and mounting rail 35 x 15 x 1,5
2675-7700-65-13
Punching Tools for Profile Shears/DIN Rail Cutter 2675
Product range
For workshop equipment
Long hole
6.5 x 13 mm / 0.25x0.51"
Max. sheet metal thickness
3 mm/0,12"
2675-7700-90-13
Punching Tools for Profile Shears/DIN Rail Cutter 2675
Product range
For workshop equipment
Long hole
9 x 13 mm / 0.35x0.51"
Max. sheet metal thickness
3 mm/0,12"
2675-0701-04-00
Guide and Wiper for Profile Shears/DIN Rail Cutter 2675
Product range
For workshop equipment
2612-7500-00-00
Air Hydraulic Pump
Operating pressure
max.
500 bar
Air connection
factory-set to min. 6 bar
Flow rate
0.8 l/min
Usable oil capacity
2.1 l
2611-0400-00-00
Electric Hydraulic Pump
Operating pressure
max.
450 bar
Electrical connection
400 V / 50 Hz
Capacity
1.17 l/min
Usable oil capacity
1.5 l
