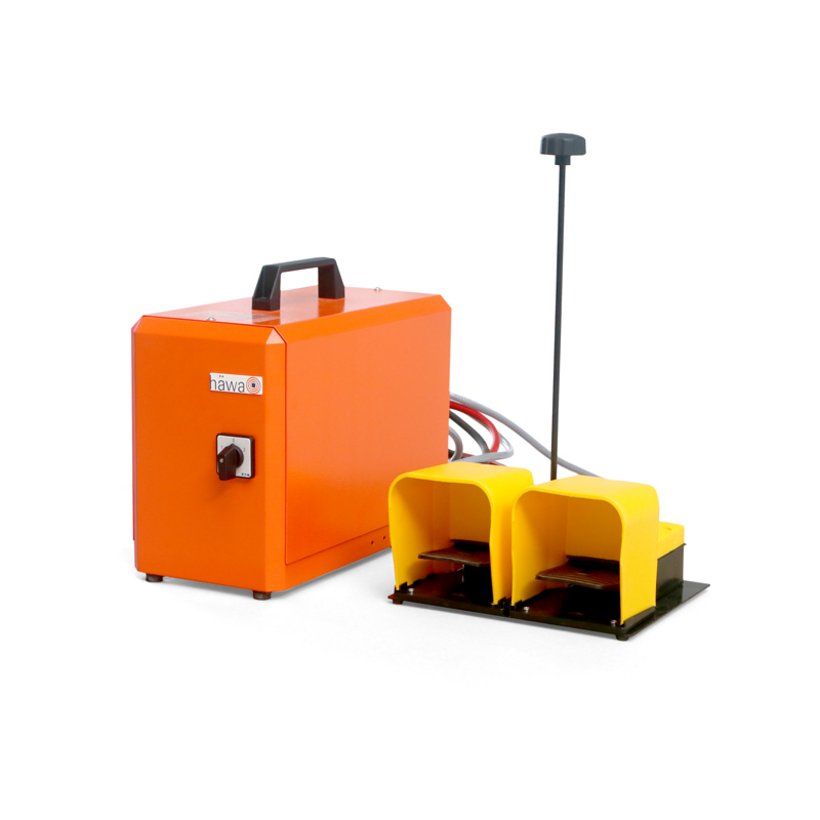

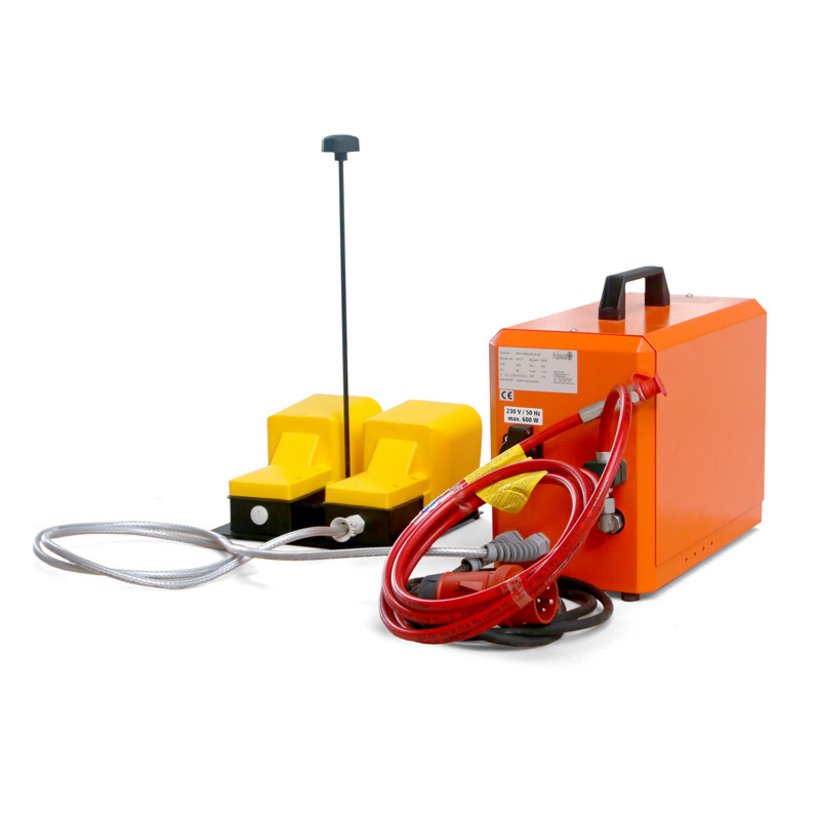

2611-0400-00-00
Electric Hydraulic Pump
- For electrical connection
- Operating pressure 450 bar
- Hose length 3.5 m / 137.8“
- Foot operated
Product description
For operating single-acting hydraulic cylinder
Foot pedal operated
With safety socket 230 V - 50 Hz
Technical data
-
Article number: 2611-0400-00-00
-
EINSATZBEREICH: For operating häwa tools
-
Electrical connection: 400 V / 50 Hz
-
Max. operating pressure: 450 bar
-
Weight: 32 kg
-
Conveying capacity: 1.17 l/min
-
Hose length: 3500 mm
-
Useful oil volume: 1.5 l
Notice
- Suitable for operating häwa tools with appropriate drip-free quick release coupling. Operation of several tools via switch valve type 2611-0003-03-00.
- Electric hydraulic pump with foot switch, hydraulic hose and hose fitting
