2612-7500-00-00

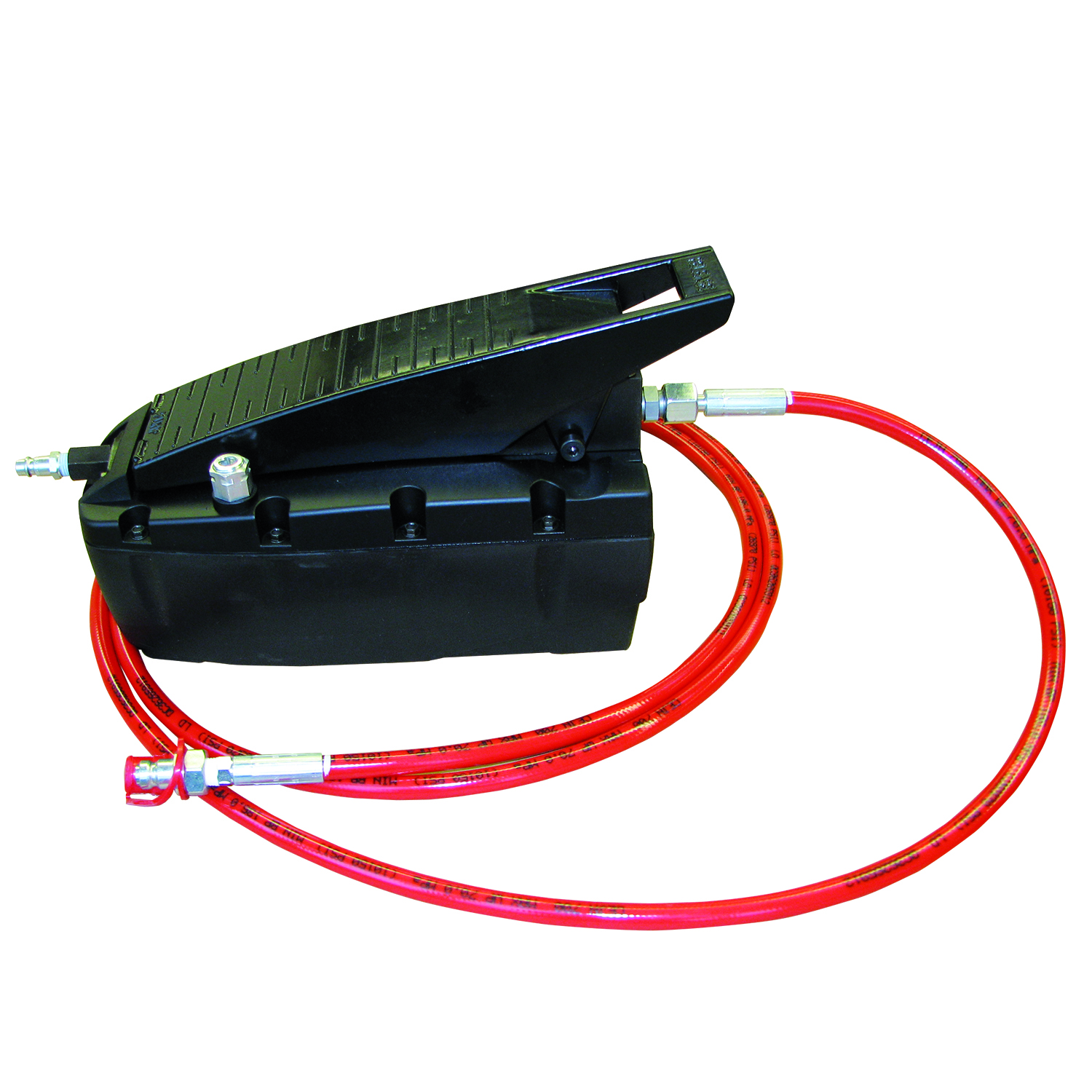

Air Hydraulic Pump
- Compressed air is sufficient to operate the device, no power supply required
- Operating pressure 500 bar
- Hose length 3.5 m / 137.80“
- Foot operated
Product description
For operating single-acting hydraulic cylinder
A compressed air connection of 6 bar generates an operating pressure of 500 bar
Foot pedal operated
Due to its low weight, the pump is suitable for mobile use
Technical data
-
Article number: 2612-7500-00-00
-
EINSATZBEREICH: For operating häwa tools
-
Air connection: factory-set to min. 6 bar
-
Max. operating pressure: 500 bar
-
Noise level: 75 dB(A)
-
Weight: 6.8 kg
-
Conveying capacity: 0.8 l/min
-
Hose length: 3500 mm
-
Air consumption: 0.4 m³/min
-
Useful oil volume: 2.1 l
Notice
- Suitable for operating häwa tools with appropriate drip-free quick release coupling.
- Operation of several tools via switch valve type 2611-0003-03-00.
- Air hydraulic pump with hydraulic hose and hose fitting
2611-7102-04-00
Plug-In Coupling
Product range
For workshop equipment
Max. operating pressure
max.
1000 bar
Flow capacity
6 l/min
Connection thread
1/4" NPT IG
2611-7102-05-00
Plug-In Nipple
Product range
For workshop equipment
Max. operating pressure
max.
1000 bar
Flow capacity
6 l/min
Connection thread
1/4" NPT IG
2611-0101-20-00
Hydraulic Hose for Electrical Pumps
Product range
For workshop equipment
Max. operating pressure
max.
700 bar
Connection thread
1x 1/4“ NPT Male Thread + 1x DKOS10 with M18x1.5 union nut
2611-0003-03-00
Switch Valve
Product range
For workshop equipment
Operating pressure
max.
500 bar
Connection thread
3x 1/4“ NPT IG
2605-7102-00-02
AlCu-Press Complete
Suitable for
round punches up to ø 17 mm / 0.67 inch oblong holes up to 13x22 mm / 0.51x0.87 inch
Max. sheet metal thickness
Cross section: copper up to 12x120 mm / 0.47x4.72”; aluminum up to 12x120 mm / 0.47x4.72”
Material up to a cross section of
12x120 mm/0,47x4,72"
Depth stop
Adjustable from 8 to 85 mm / 0.32x3.35”
2605-7502-00-02
AlCu-Press: Punching / Cutting to Length
Application
Punching of cut-outs
Suitable for
round punches up to ø 17 mm / 0.67 inch oblong holes up to 13x22 mm / 0.51x0.87 inch
Material
Copper, aluminum
Material thickness
Cross section: copper up to 12x120 mm / 0.47x4.72”; aluminum up to 12x120 mm / 0.47x4.72”
2605-7602-01-20
AlCu-Press: Bending, Trimming
Application
Bending + trimming
Material thickness
Cross section: copper up to 12x120 mm / 0.47x4.72”; aluminum up to 12x120 mm / 0.47x4.72”
2643-7105-00-00
Hydraulic Maxi-Press 500
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2671-0200-01-00
Hydraulic profile shears 2671
Material
Sheet steel, aluminum
Material thickness
Profile dimensions: sheet steel up to 35x15x2 mm / 1.38x0.59x0.08”, aluminum up to 35x15x2 mm /1.38x0.59x0.08”
Punching
Up to ø 7 mm / 0.28“ or oblong hole 6.3x9 mm / 0.25x0.35“
2675-7200-01-00
Profile shears 2675
Material
Sheet steel, aluminum
Punching
Up to ø 13 mm / 0.51“ or oblong hole 9x13 mm / 0.35x0.51“
2611-0101-20-00
Hydraulic Hose for Electrical Pumps
Product range
For workshop equipment
Max. operating pressure
max.
700 bar
Connection thread
1x 1/4“ NPT Male Thread + 1x DKOS10 with M18x1.5 union nut
2611-7102-05-00
Plug-In Nipple
Product range
For workshop equipment
Max. operating pressure
max.
1000 bar
Flow capacity
6 l/min
Connection thread
1/4" NPT IG
