2410-2020-10-37

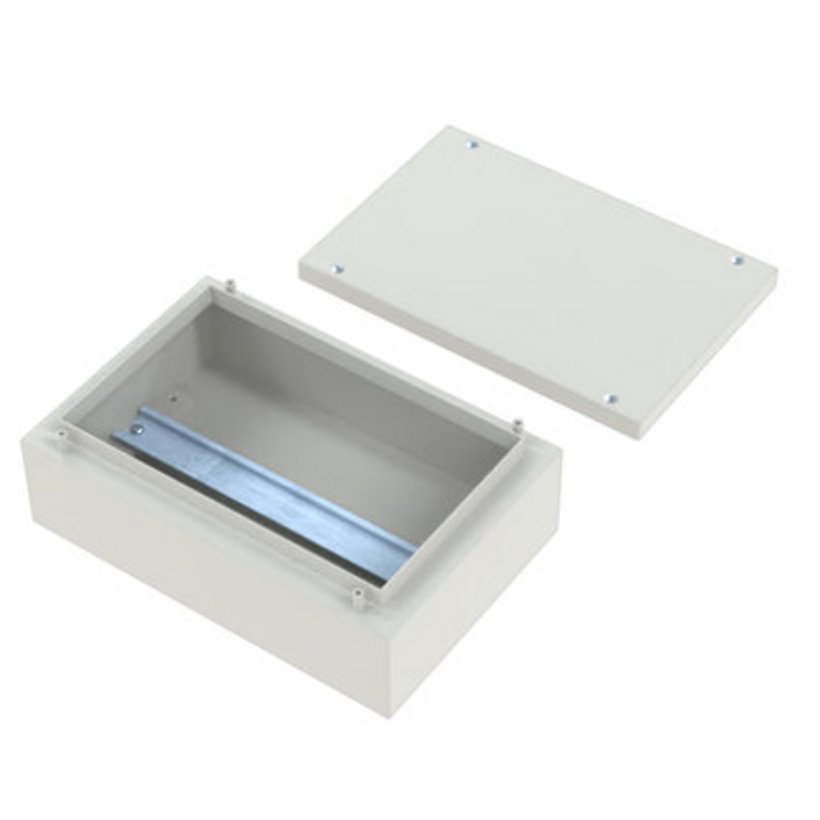

Junction Box K10 Sheet Steel
- Protection class IP66
- Including apparatus rail
- Approved: cULus
Product description
Junction boxes for the optimal protection of wiring.
Protective ground connection to DIN EN 61439-1, studs M5x10 on cover and body.
90° framel: 20 mm.
Cover with seamless integrated foamed seal.
Cover screwed with captive screws outlaying the PU seals.
Built-in system: apparatus rail length 499 mm, DIN EN 60715 35 x 7.5 mm, from length 500 mm, DIN 60715 35 x 15 mm.
Steel with improved pre-treatment through iron phosphating and deionized water rinse, as well as eco-friendly powder paint coating.
Technical data
-
Article number: 2410-2020-10-37
-
Material: Sheet steel
-
Width: 200 mm
-
Depth: 100 mm
-
Length: 200 mm
-
Number of cover screws: 4
-
Sheet thickness: 1.5 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Protection class: IP66
Type 1, 12, 13; Optional: Type 2, 5, 3, 3R, 4 -
Authorization: cULus
- Box with cover and mounted equipment rail
3080-9066-05-05
Wall mounting brackets, Stainless steel
Wall distance
12 mm
Material
Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Wall distance
40 mm
Material
Stainless steel
