2410-7020-10-37

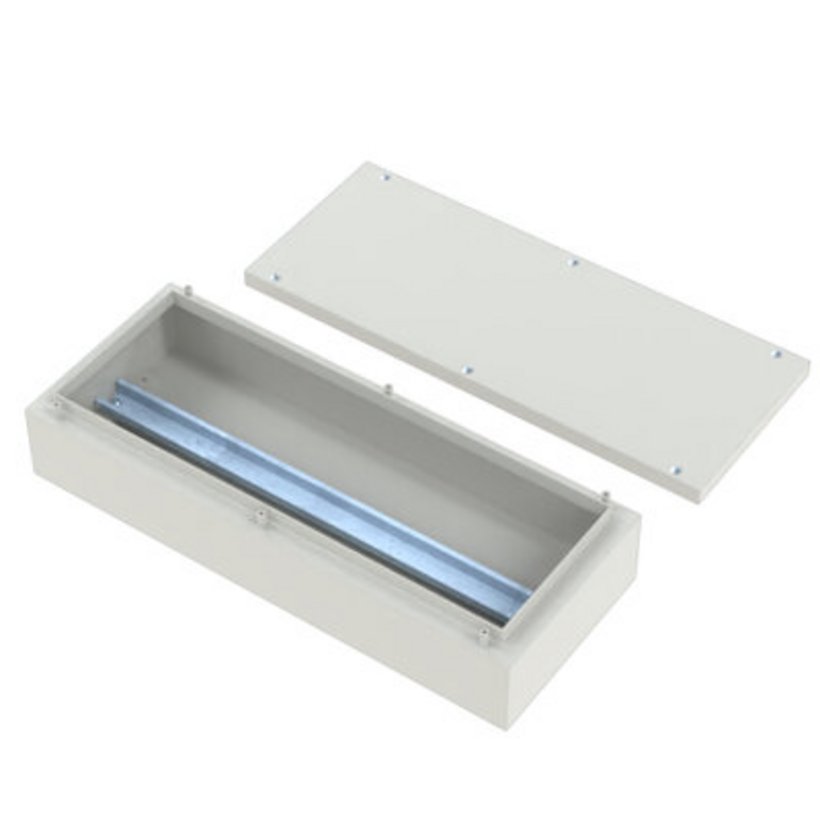

Junction Box K10 Sheet Steel
- Protection class IP66
- Including apparatus rail
- Approved: cULus
Product description
Junction boxes for the optimal protection of wiring.
Protective ground connection to DIN EN 61439-1, studs M5x10 on cover and body.
90° framel: 20 mm.
Cover with seamless integrated foamed seal.
Cover screwed with captive screws outlaying the PU seals.
Cover fixed with 4 screws, from L=400 mm with 6 hexagon screws PH2 outside the PU-sealing.
Steel with improved pre-treatment through iron phosphating and deionized water rinse, as well as eco-friendly powder paint coating.
Technical Data
-
Order No.: 2410-7020-10-37
-
Material: Sheet steel
-
Width: 200 mm
-
Depth: 100 mm
-
Length: 700 mm
-
Number of: Cover screws: 6
-
Sheet thickness: 1,5 mm/0,0,6"
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Protection type: IP66
Type 1, 12, 13; Optional: Type 2, 5, 3, 3R, 4 -
Approval: cULus
-
Cover with 6 screws: 0
- Box with cover and mounted equipment rail
0351-9066-03-00
Wall mounting brackets, Stainless steel
Distance
Wall: 6 mm
Material
Stainless steel
3080-9066-05-05
Wall mounting brackets, Stainless steel
Distance
Wall: 12 mm
Material
Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Distance
Wall: 40 mm
Material
Stainless steel
3080-9036-05-18
Cable for Protective Ground Connection
Conductor cross-sections
4 mm2/0,006 in2
Dimensions
Length: 200 mm/7,87"
Drilling diameter d
Ø=5,3 mm
Material
H07V-K
Assembly instructions:
CAD data and other file formats:
