2411-2020-10-30

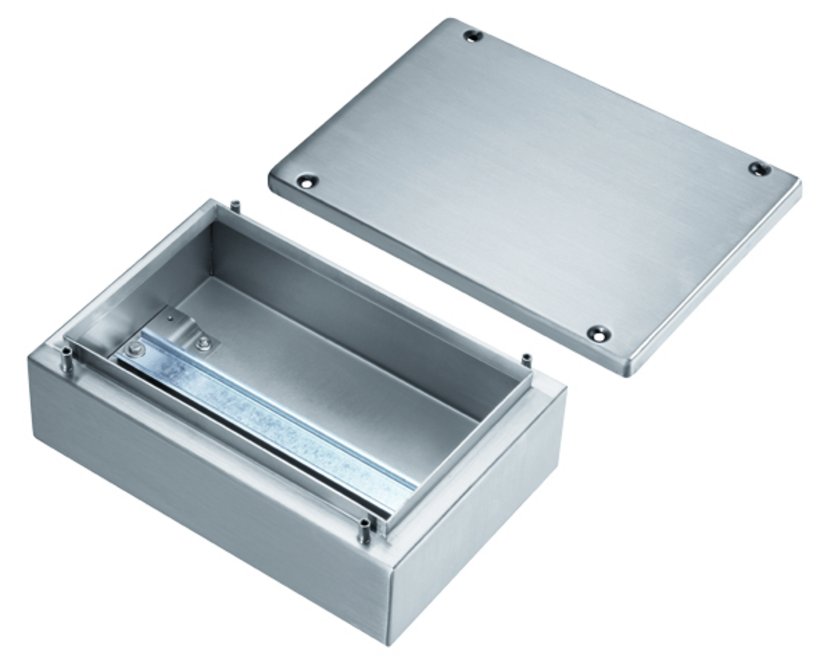

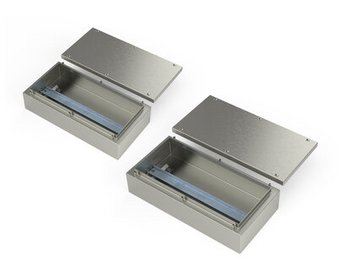

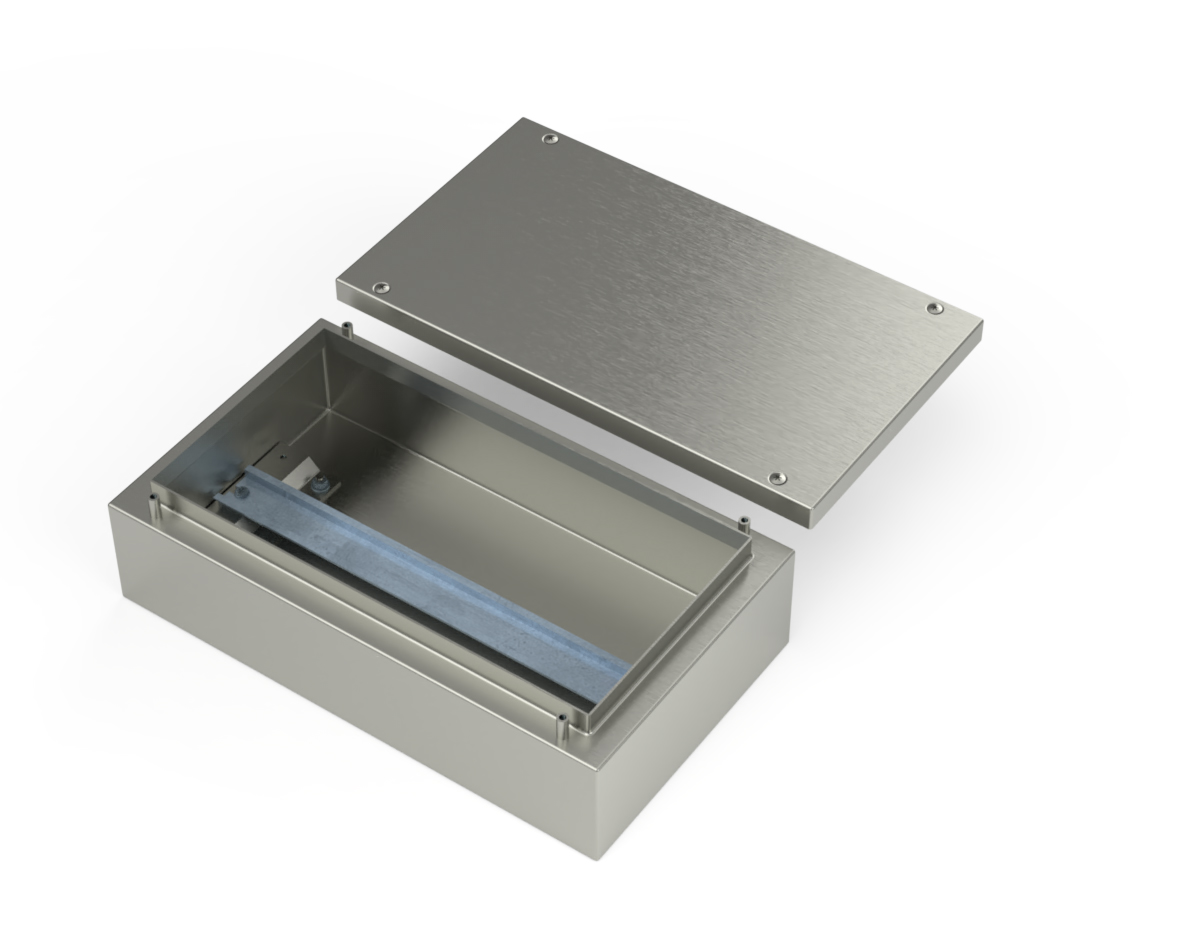

Junction box K11 Stainless Steel
- Protection class IP66; NEMA 4X
- Including apparatus rail.
- Approved: cULus
Product description
Junction boxes for the optimal protection of wiring.
Protective ground connection to DIN EN 61439-1, studs M5x10 on cover and body.
90° frame: 20 mm.
Cover with seamless integrated foamed seal.
Cover screwed with 4 torx screws, from L = 400 mmwith 6 torx screws, TX25 outlaying PU seal.
Built-in system: apparatus rail length 499 mm, DIN EN 60715 35 x 7.5 mm, from length 500 mm, DIN 60715 35 x 15 mm.
Technical Data
-
Order No.: 2411-2020-10-30
-
Material: Stainless steel no. 1.4301
-
Width: 200 mm
-
Depth: 100 mm
-
Length: 200 mm
-
Number of: Cover screws: 4
-
Sheet thickness: 1,5 mm/0,0,6"
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Externally brushed
-
Protection type: IP66
Type 1, 4X, 12, 13; Optional: Typ 2, 5, 3, 3R -
Approval: cULus
-
Cover with 6 screws: 0
- Terminal boxes with cover and mounted apparatus rail.
0351-9066-03-00
Wall mounting brackets, Stainless steel
Distance
Wall: 6 mm
Material
Stainless steel
3080-9066-05-05
Wall mounting brackets, Stainless steel
Distance
Wall: 12 mm
Material
Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Distance
Wall: 40 mm
Material
Stainless steel
3080-9036-05-18
Cable for Protective Ground Connection
Conductor cross-sections
4 mm2/0,006 in2
Dimensions
Length: 200 mm/7,87"
Drilling diameter d
Ø=5,3 mm
Material
H07V-K
