2411-3520-10-30

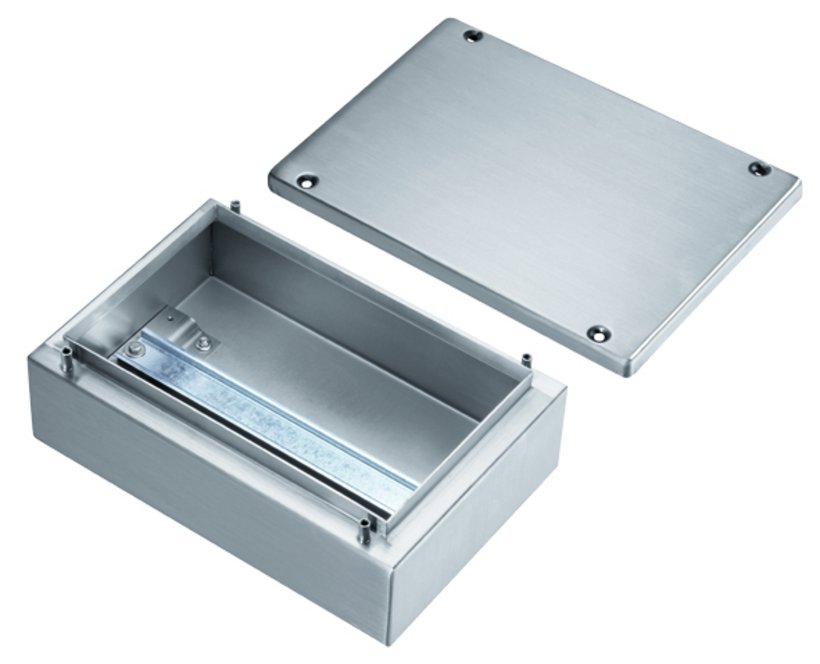

Junction box K11 Stainless Steel
- Protection class IP66; NEMA 4X
- Including apparatus rail.
- Approved: cULus
Product description
Junction boxes for the optimal protection of wiring.
Protective ground connection to DIN EN 61439-1, studs M5x10 on cover and body.
90° frame: 20 mm.
Cover with seamless integrated foamed seal.
Cover screwed with 4 torx screws, from L = 400 mmwith 6 torx screws, TX25 outlaying PU seal.
Built-in system: apparatus rail length 499 mm, DIN EN 60715 35 x 7.5 mm, from length 500 mm, DIN 60715 35 x 15 mm.
Technical data
-
Article number: 2411-3520-10-30
-
Material: Stainless steel no. 1.4301
-
Width: 200 mm
-
Depth: 100 mm
-
Length: 350 mm
-
Number of cover screws: 4
-
Sheet thickness: 1.5 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Externally brushed
-
Protection class: IP66
Type 1, 4X, 12, 13; Optional: Typ 2, 5, 3, 3R -
Authorization: cULus
- Terminal boxes with cover and mounted apparatus rail.
3080-9066-05-05
Wall mounting brackets, Stainless steel
Wall distance
12 mm
Material
Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Wall distance
40 mm
Material
Stainless steel
Mounting instructions:
CAD data and other illustrations:
