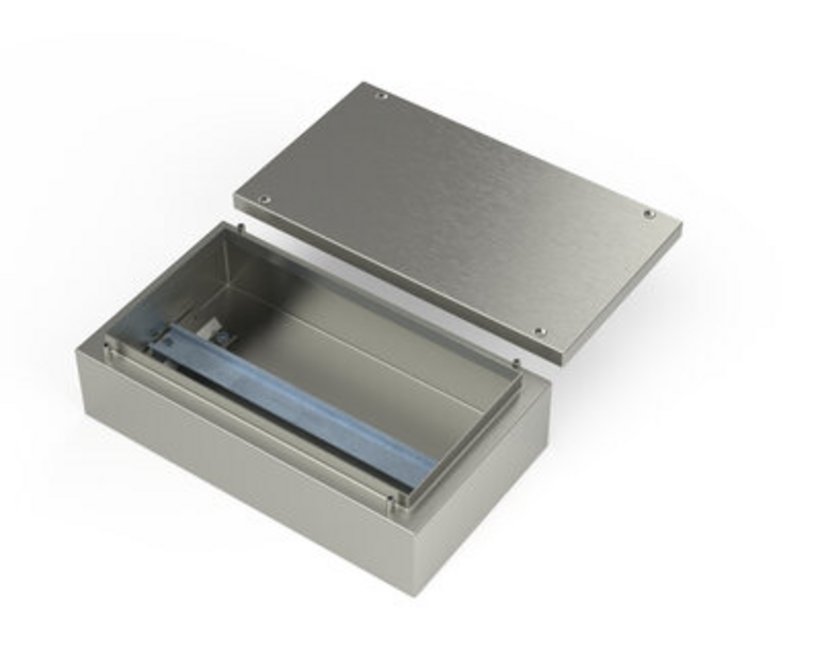

Junction box K11 Stainless Steel

2411-2520-10-30

Junction box K11 Stainless Steel

  • Protection class IP66; NEMA 4X
  • Including apparatus rail.
  • Approved: cULus

Product description

Junction boxes for the optimal protection of wiring.

Protective ground connection to DIN EN 61439-1, studs M5x10 on cover and body.

90° frame: 20 mm.

Cover with seamless integrated foamed seal.

Cover screwed with 4 torx screws, from L = 400 mmwith 6 torx screws, TX25 outlaying PU seal.

Built-in system: apparatus rail length 499 mm, DIN EN 60715 35 x 7.5 mm, from length 500 mm, DIN 60715 35 x 15 mm.

Technical Data

  • Order No.: 2411-2520-10-30
  • Material: Stainless steel no. 1.4301
  • Width: 200 mm
  • Depth: 100 mm
  • Length: 250 mm
  • Number of cover screws: 4
  • Sheet thickness: 1,5 mm/0,0,6"
  • Protective ground connection: according to DIN EN 61439-1
  • Surface: Externally brushed
  • Protection type: IP66
    Type 1, 4X, 12, 13; Optional: Typ 2, 5, 3, 3R
  • Approval: cULus
  • Cover with 6 screws: 0
  • Terminal boxes with cover and mounted apparatus rail.
Wall mounting brackets, Stainless steel
0351-9066-03-00
Wall mounting brackets, Stainless steel
Distance
Wall: 6 mm
Material
Stainless steel
Wall mounting brackets, Stainless steel
3080-9066-05-05
Wall mounting brackets, Stainless steel
Distance
Wall: 12 mm
Material
Stainless steel
Wall mounting brackets, Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Distance
Wall: 40 mm
Material
Stainless steel
Cable for Protective Ground Connection
3080-9036-05-18
Cable for Protective Ground Connection
Conductor cross-sections
4 mm2/0,006 in2
Dimensions
Length: 200 mm/7,87"
Drilling diameter d
Ø=5,3 mm
Material
H07V-K
Mounting plate
2408-2520-00-12
Mounting plate
Width
155 mm
Height
235 mm
Apparatus rail
2462-0402-02-41
Apparatus rail
Length
241 mm
Version
DIN 60715 35x15 mm / 1.37x0.59", 1,5mm thick
Apparatus rail
2462-0502-02-41
Apparatus rail
Length
241 mm
Version
DIN EN 60715 35x7,5mm / 1.37x0.29", 1mm thick
Junction box K11 Stainless Steel
Junction box K11 Stainless Steel
Junction boxes for the optimal protection of wiring.
Protective ground connection to DIN EN 61439-1, studs M5x10 on cover and body.
90° frame: 20 mm.
Cover with seamless integrated foamed seal.
Cover screwed with 4 torx screws, from L = 400 mmwith 6 torx screws, TX25 outlaying PU seal.
Built-in system: apparatus rail length 499 mm, DIN EN 60715 35 x 7.5 mm, from length 500 mm, DIN 60715 35 x 15 mm.
