Sensor-Operated - Switch cabinet light
Switch cabinet light
Sensor-Operated
More efficient with the

häwa control cabinet light

As an enclosure manufacturer, we offer accessories to perfectly equip your enclosure for almost any application. The new generation of Sensor Operated LED light for Series 33 enclosures and wall-mounted enclosures provides optimum illumination of the interior.

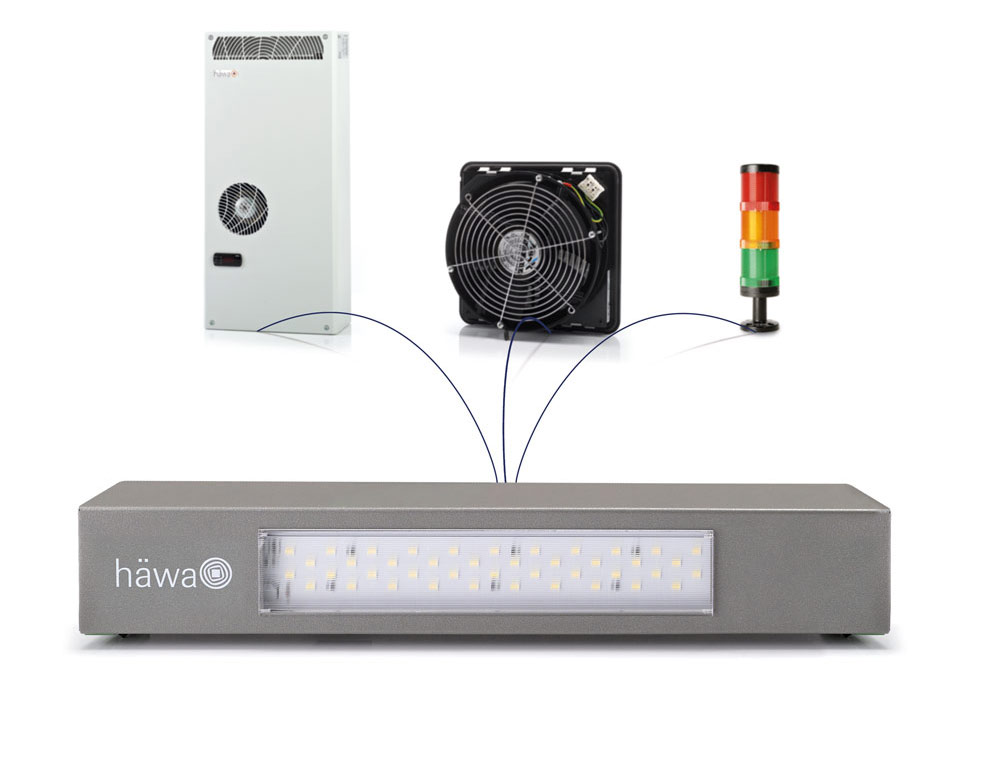

It is possible to connect additional devices or components such as cooling units, filter fans and signal towers to the Sensor Operated LED light using the potential-free contact of the NC contact and NO contact. This makes it easier for you to set up the switch cabinet.

The on/off function is controlled via the light's sensor; as soon as you have connected it, it also switches the applications when the door is opened or closed.

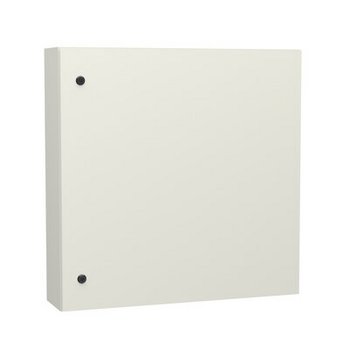

The new Sensor Operated LED light is available either as a screw-mounted or magnetic version, the latter is ideal for our Series 33 wall-mounted enclosures, for example. The ability to cascade up to 10 lights is user-friendly and makes it easier to use, especially in bayed enclosures.

The new Sensor Operated LED luminaire with 1,500 lumen light output, a color temperature of 5,100 K has a beam angle of 120° and is available immediately.

 Query control cabinet light

■  Sensor-controlled on/off function

■  Potential-free normally closed/ normally open contacts for other applications

■  Durable, maintenance-free

■  Cascadable for up to 10 luminaires

■  Energy-saving thanks to LED technology

häwa reference for

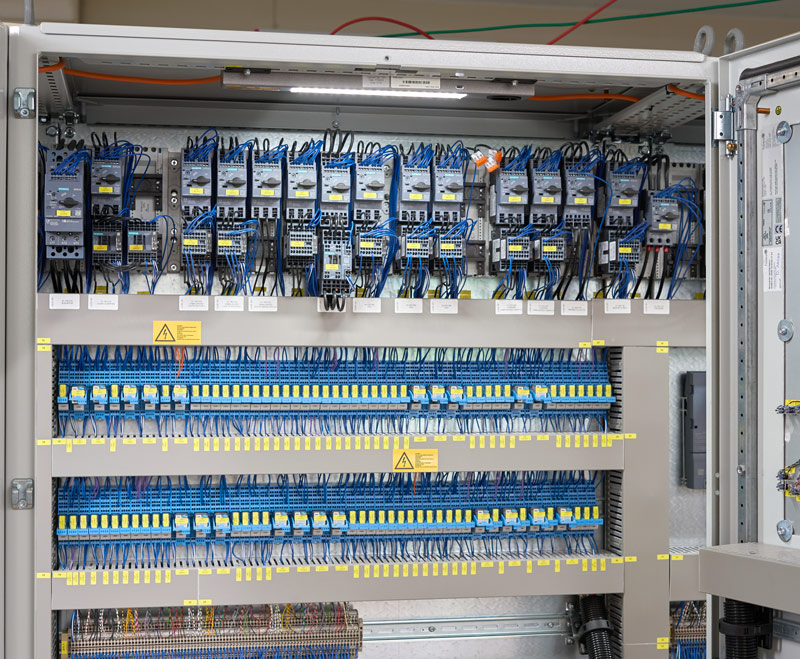

Sensor-operated LED lights for control cabinets

Up to ten luminaires can be cascaded in series. This makes the product particularly user-friendly, as large enclosure interiors are illuminated homogeneously and uniformly.

to the reference

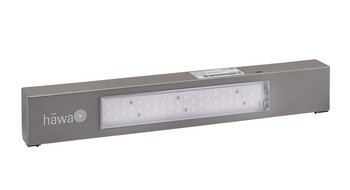

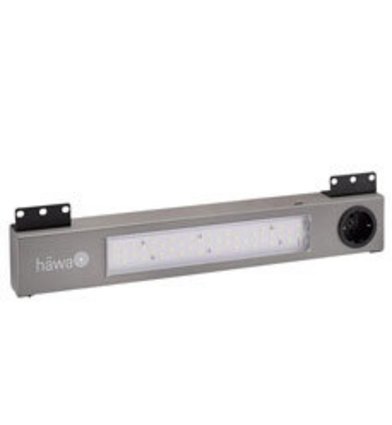

Sensor Operated LED Lamp, SOL 704
Sensor Operated LED Lamp, SOL 704
The SOL 704 Sensor Operated LED lamp ensures an optimum illumination of control cabinets. The pre-set proximity sensor is ready for operation after mounting the lamp and switches the lamp immediately ON or with a delay of 5 s OFF when opening or closing the door.
An integrated N.C (normally closed) / N.O. (normally open) relay operates as a door switch for switching devices or components, such as cooling units, filter fans and signal towers, etc., including suitable plugs for connecting the…

Remember
120 V-230 V~ (50 Hz/60 Hz) +/- 10%
120 V-277 V~ (50 Hz/60 Hz) +/- 10%
magnetic
440 mm
UKCA, cULus, cURus, CE, VDE EMC
24 V- +/- 10%
magnetic
440 mm
UKCA, cULus, cURus, CE, VDE EMC
230 V~ (50 Hz/60 Hz) +/- 10%
Screw mounted version
440 mm
CE, VDE EMC, UKCA
120 V~ (50 Hz/60 Hz) +/- 10%
Screw mounted version
440 mm
UKCA, cULus, cURus, CE, VDE EMC
120 V-230 V~ (50 Hz/60 Hz) +/- 10%
120 V-277 V~ (50 Hz/60 Hz) +/- 10%
Screw mounted version
440 mm
UKCA, cULus, cURus, CE, VDE EMC
24 V- +/- 10%
Screw mounted version
440 mm
UKCA, cULus, cURus, CE, VDE EMC

Fluorescent Lamp, Ready for Connection
Fluorescent Lamp, Ready for Connection
The cabinet light with door switch is pre-assembled and ready for connection.
For assembly under the cabinet roof or, with an installation kit, at the lateral frame of the cabinet (for modular cabinets only).

Remember
AC 220-240V, 50/60 Hz
Door switch
Screw mounted version
Schuko CEE 7/3 load: Max. 16 A
AC 220-240V, 50/60 Hz
Door switch
Screw mounted version
Schuko CEE 7/3 load: Max. 16 A
AC 220-240V, 50/60 Hz
Door switch
Screw mounted version
Schuko CEE 7/3 load: Max. 16 A

LED lamp with screw fixing, pressure connection clamp
LED lamp with screw fixing, pressure connection clamp
The LED lamps are designed for the use in cabinets and enclosures equipped with electric/electronic components, especially where space is at a premium. These lamps have a very long service life thanks to the use of LED technology. With the integrated power unit and the dual pressure connection clamp, the lamps can be connected quickly. It is possible to connect up to 10 lamps to each other (cascading).

Remember
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V) DC 90-110V, (min. DC 80V, max. DC 125V)
400 Lm at 120°
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V) DC 90-110V, (min. DC 80V, max. DC 125V)
screw fixing M5, torque 2 Nm max.
400 Lm at 120°
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V) DC 90-110V, (min. DC 80V, max. DC 125V)
screw fixing M5, torque 2 Nm max.
400 Lm at 120°

LED lamp with magnet fixing, pressure connection clamp
LED lamp with magnet fixing, pressure connection clamp
The LED lamps are designed for the use in cabinets and enclosures equipped with electric/electronic components, especially where space is at a premium. These lamps have a very long service life owing to the use of LED technology. With the integrated power unit and the dual pressure connection clamp, the lamps can be connected quickly. It is possible to connect up to 10 lamps to each other (cascading). The lamps with magnet fixing can be mounted in any desired position in sheet steel enclosures…

Remember
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V) DC 90-110V, (min. DC 80V, max. DC 125V)
400 Lm at 120°
CE, cURus
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V) DC 90-110V, (min. DC 80V, max. DC 125V)
400 Lm at 120°
CE, cURus
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V) DC 90-110V, (min. DC 80V, max. DC 125V)
400 Lm at 120°
CE, cURus

LED lamp with clip fixing, pressure connection clamp
LED lamp with clip fixing, pressure connection clamp
The LED lamps are designed for the use in cabinets and enclosures equipped with electric/electronic components, especially where space is at a premium. These lamps have a very long service life thanks to the use of LED technology. With the integrated power unit and the dual pressure connection clamp, the lamps can be connected quickly. It is possible to connect up to 10 lamps to each other (cascading). The clip holders can be positioned anywhere in the enclosure by simply screwing them to the…

Remember
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V) DC 90-110V, (min. DC 80V, max. DC 125V)
400 Lm at 120°
CE, cURus
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V) DC 90-110V, (min. DC 80V, max. DC 125V)
400 Lm at 120°
CE, cURus
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V) DC 90-110V, (min. DC 80V, max. DC 125V)
400 Lm at 120°
CE, cURus

LED lamp with magnet and snap lock
LED lamp with magnet and snap lock
The LED lamps are designed for the use in cabinets and enclosures equipped with electric/electronic components, especially where space is at a premium. These lamps have a very long service life thanks to the use of LED technology. Both the power input and output connectors snap lock into their sockets. With the integrated power unit and the plugs, the lamps can be connected quickly. It is possible to connect several lamps to each other (cascading). The lamps with magnet can be mounted at any…

Remember
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V)
400 Lm at 120°
CE, cURus
DC 24-48V (min. DC 20V, max. DC 60V)
400 Lm at 120°
CE, cURus
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V)
400 Lm at 120°
CE, cURus
DC 24-48V (min. DC 20V, max. DC 60V)
400 Lm at 120°
CE, cURus
DC 12V (min. DC 10V, max. DC 16V)
400 Lm at 120°
CE, cURus

LED lamp with screw fixing, snap lock
LED lamp with screw fixing, snap lock
The LED lamps are designed for the use in cabinets and enclosures equipped with electric/electronic components, especially where space is at a premium. These lamps have a very long service life thanks to the use of LED technology. Both the power input and output connectors snap lock into their sockets. With the integrated power unit and the plugs, the lamps can be connected quickly. It is possible to connect up to 10 lamps (DC 12V up to 5 lamps) to each other (cascading).

Remember
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V)
400 Lm at 120°
CE, cURus
DC 24-48V (min. DC 20V, max. DC 60V)
400 Lm at 120°
CE, cURus
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V)
400 Lm at 120°
CE, cURus
DC 24-48V (min. DC 20V, max. DC 60V)
400 Lm at 120°
CE, cURus
DC 12V (min. DC 10V, max. DC 16V)
400 Lm at 120°
CE, cURus

LED lamp with clip fixing, snap lock
LED lamp with clip fixing, snap lock
The LED lamps are designed for the use in cabinets and enclosures equipped with electric/electronic components, especially where space is at a premium. These lamps have a very long service life thanks to the use of LED technology. Both the power input and output connectors snap lock into their sockets. With the integrated power unit and the plugs, the lamps can be connected quickly. It is possible to connect up to 10 lamps (DC 12V up to 5 lamps) to each other (cascading). The clip holders can be…

Remember
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V)
400 Lm at 120°
CE, cURus
DC 24-48V (min. DC 20V, max. DC 60V)
400 Lm at 120°
CE, cURus
AC 100-240V, 50/60 Hz (min. AC 90V, max. AC 265V)
400 Lm at 120°
CE, cURus
DC 24-48V (min. DC 20V, max. DC 60V)
400 Lm at 120°
CE, cURus
DC 12V (min. DC 10V, max. DC 16V)
400 Lm at 120°
CE, cURus
